Specifications
1
1 2 3 4 5 6
2 2
1
1 2 3 4 5 6
3 3
1
1 2 3 4 5 6
2 2
1 NC
2 Live part
3 PELV

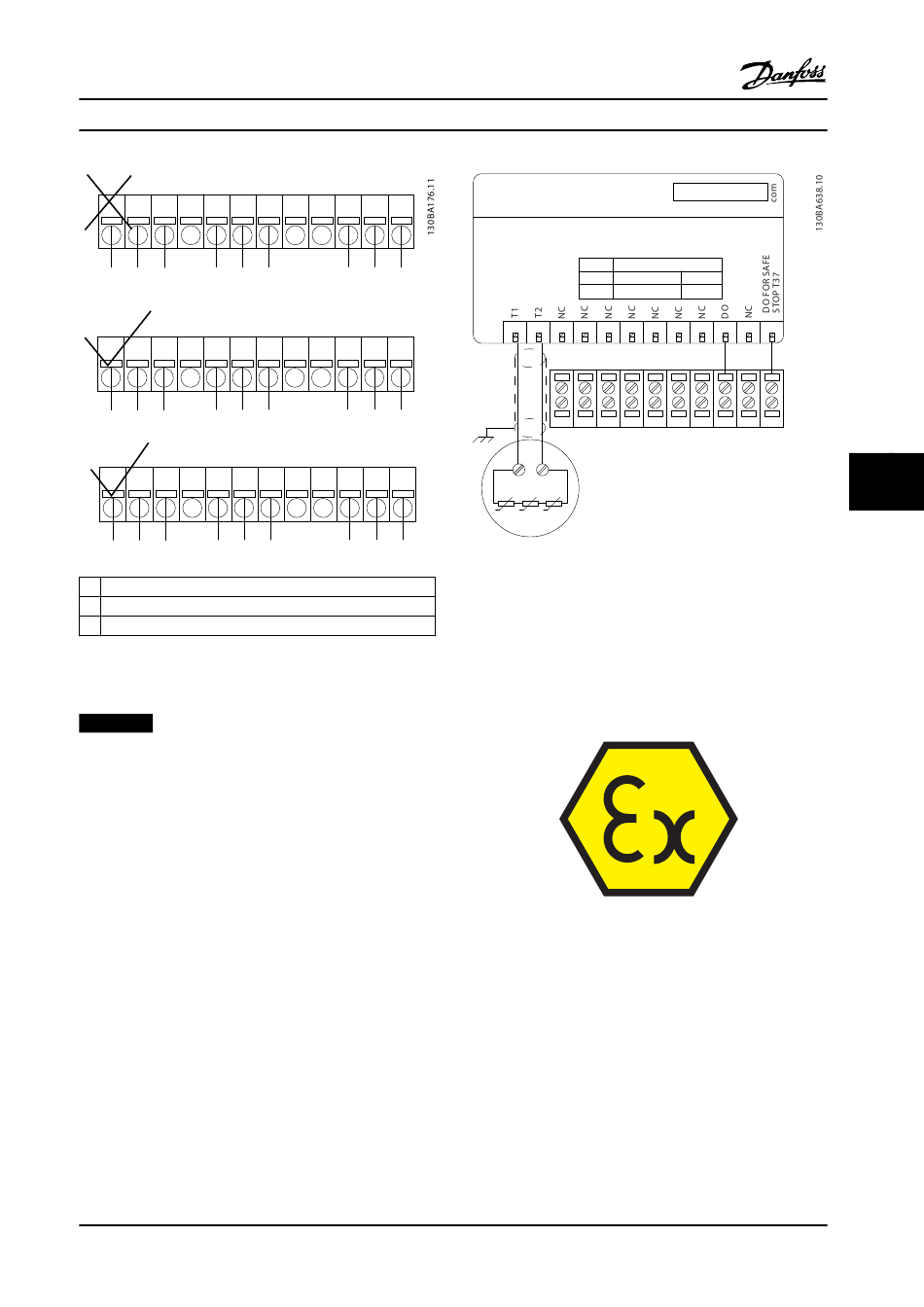

Figure 7.8 Correct Relay Wiring
NOTICE!
Do not combine 24/48 V systems with high-voltage
systems.
®
7.11.3 VLT
PTC Thermistor Card MCB 112
The MCB 112 option makes it possible to monitor the
temperature of an electrical motor through a galvanically-
isolated PTC thermistor input. It is a B option for adjustable
frequency drives with STO.
For different application possibilities, see
chapter 4 Application Examples.
X44/1 and X44/2 are the thermistor inputs. X44/12 enables
STO of the adjustable frequency drive (T37), if the
thermistor values make it necessary, and X44/10 informs
the adjustable frequency drive that a request for STO came
from the MCB 112 to ensure suitable alarm handling. One
of the digital input parameters (or a digital input of a
mounted option) must be set to [80] PTC Card 1 to use the
information from X44/10. Configure 5-19 Terminal 37 Safe
Stop to the desired STO functionality (default is safe stop
alarm).
MG20N622
Design Guide
1 1
7 8 9 10 11 12
3
1 1
7 8 9 10 11 12
3
1 1
7 8 9 10 11 12
2
Danfoss A/S © 09/2014 All rights reserved.
MS 220 DA
Motor protection
MCB 112 PTC Thermistor Card
Reference for 10, 12
11
10 20-28 VDC
20-28 VDC
12
X44
1 2 3 4 5 6
12 13 18 19
Control Terminals of FC302
T T
P P
PTC
M3~
Figure 7.9 Installation of MCB 112
ATEX Certification with FC 102, FC 103, FC 202, and FC
302
The MCB 112 has been certified for ATEX, which means
that the adjustable frequency drive with the MCB 112 can
be used with motors in potentially explosive atmospheres.
®
See the VLT PTC Thermistor Card MCB 112 Instruction
Manual for more information.
Figure 7.10 ATmosphère EXplosive (ATEX)
ZIEHL
Option B
Code No.130B1137
10 mA
60 mA
7 8 9 10 11 12
27 29 32 33 20 37
187
