3.3 Installation in Combination with VLT® PTC Thermistor Card MCB 112
The combination of VLT® PTC Thermistor Card MCB 112 and STO function is only available for VLT® HVAC Drive FC 102, VLT®
Refrigeration Drive FC 103, VLT® AQUA Drive FC 202, VLT® AutomationDrive FC 302, and VLT® AutomationDrive FC 301 enclosure
size A1.
VLT® PTC Thermistor Card MCB 112 uses terminal 37 as its safety-related switch-off channel.
• Ensure that the output X44/12 of MCB 112 is AND-ed with the safety-related sensor (for example, emergency stop button and
safeguard switch) that activates STO. This means that the output to STO terminal 37 is high (24 V) only if both the signal from
MCB 112 output X44/12 and the signal from the safety-related sensor are high. If at least 1 of the 2 signals is low, the output to
terminal 37 must be low too.
• Ensure that the safety device with AND-logic complies with the needed safety level.
• Short-circuit protect the connection from the output of the safety device with safe AND-logic to the STO terminal 37.
Hazardous Non-hazardous area
area
PTC Thermistor Card
X44/ 1 2 3 4 5 6 7 8 9 101112
PTC
sensor
12 13 18 19 27 29 32 33 20 37
Par. 5-19
Terminal 37 Safe Stop

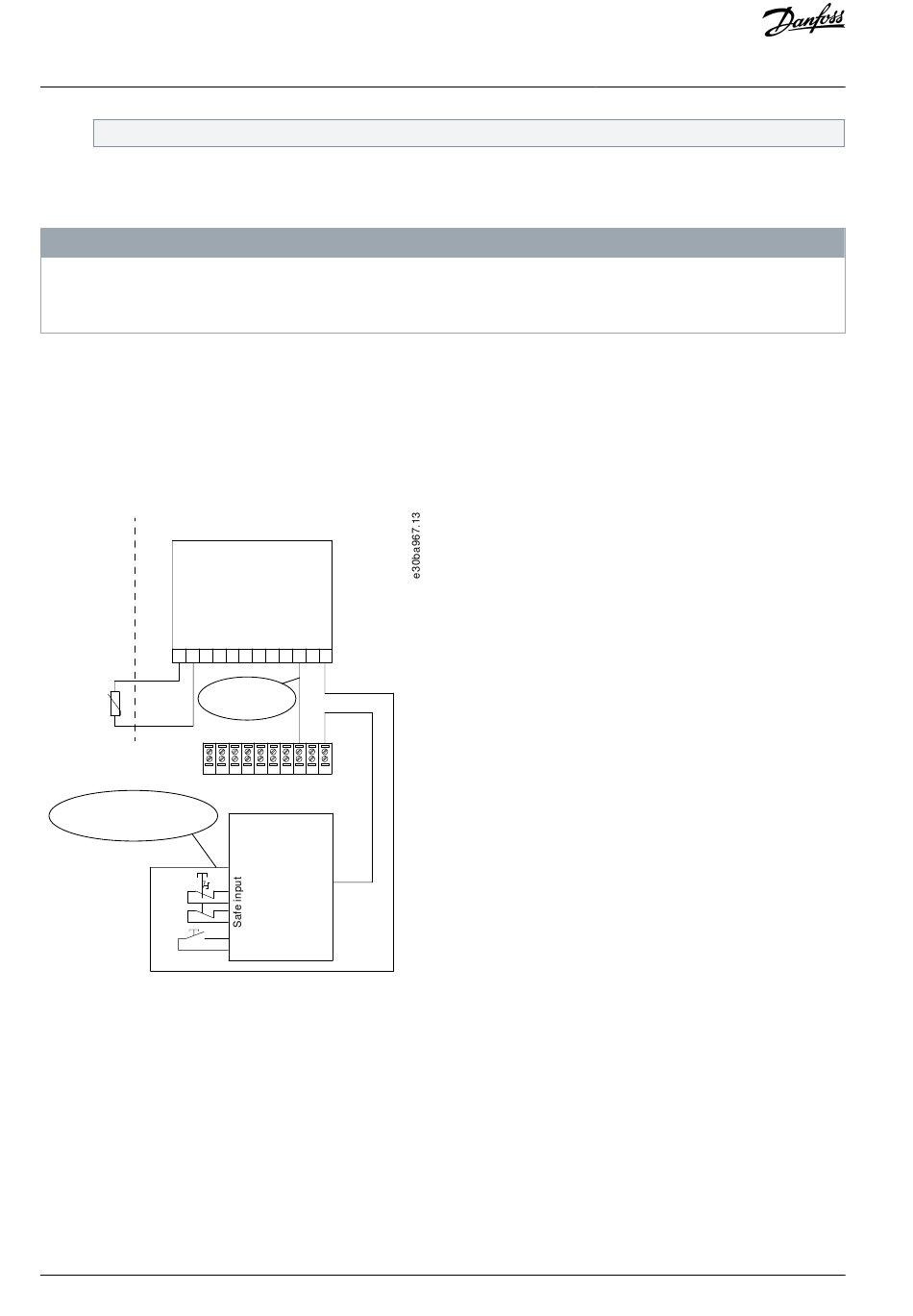

Illustration 3: Combination of an STO Application and an MCB 112 Application
The illustration shows a restart input for the external safety device. This means that in this installation, parameter 5-19 Terminal 37
Safe Stop can be set to value [7] PTC 1 & Relay W or [8] PTC 1 & Relay A/W. Refer to VLT® PTC Thermistor Card MCB 112 Operating
Guide for further details.
