LEDS:

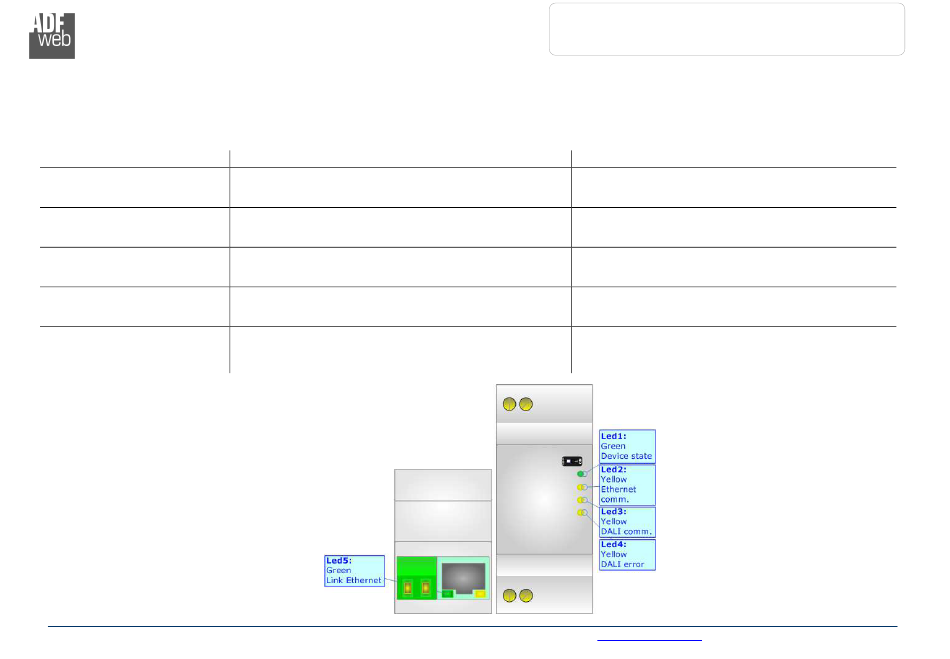

The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: Ethernet communication
(yellow)
3: DALI communication
(yellow)
4: DALI error (yellow)
5: Ethernet Link (green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks slowly (~1Hz)
Blinks when Ethernet communication is running
Blinks when DALI communication is running
Turns ON when the DALI device is not present
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
User Manual DALI / Ethernet
Document code: MN67839_ENG
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
