The means of the fields for the "CONTROL COMMANDS"
section are:
In the "POWER CONTROL" bar it is possible to
change the actual ADV of the entire DALI network;
In the field "COMMAND" it is possible to select a
DALI command to send to the entire DALI network.
For set commands, it is possible to insert the value
to set in the field "xx". As soon as the command to
send is selected, the command is sent: in order to
send the same command more times, it is possible
to press the "SEND" button;
In the field "COMMAND
from the DALI network is printed.
Note:
This section is used to test the functioning of the
DALI network.
In the "SET SCENES" section it is possible to activate the
programmed scenes into all the DALI devices that have
them:
By pressing the buttons
possible to activate the correspondent scene in the
DALI network. Only the devices that have it will
accept the command.
ADFweb.com Srl – IT31010 – Mareno – Treviso
FEEDBACK" the response
"GO TO: SCENE X" it is

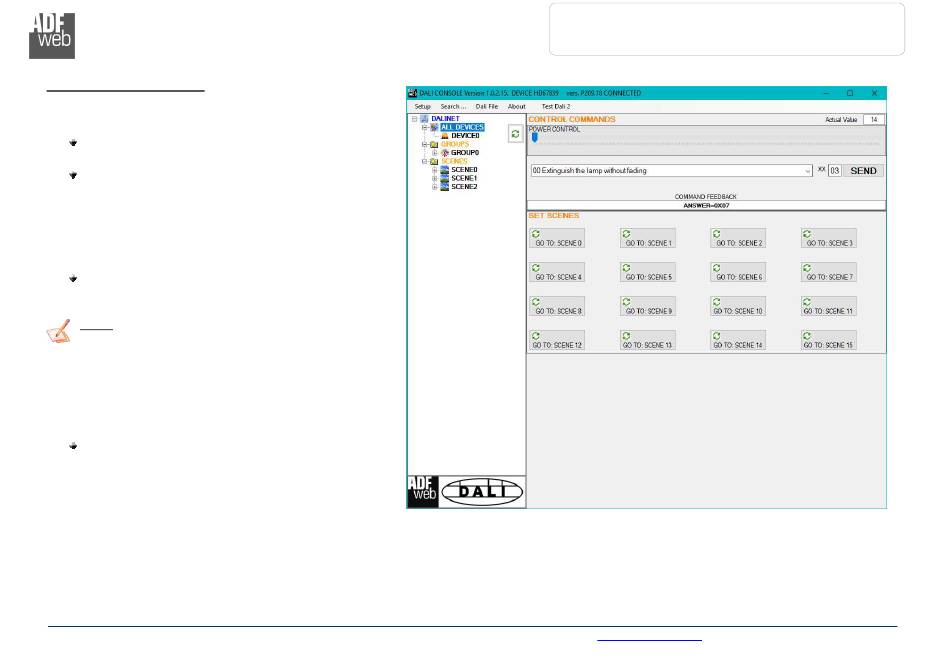

Figure 14: "Broadcast settings" window
