Industrial Electronic Devices
LEDS:

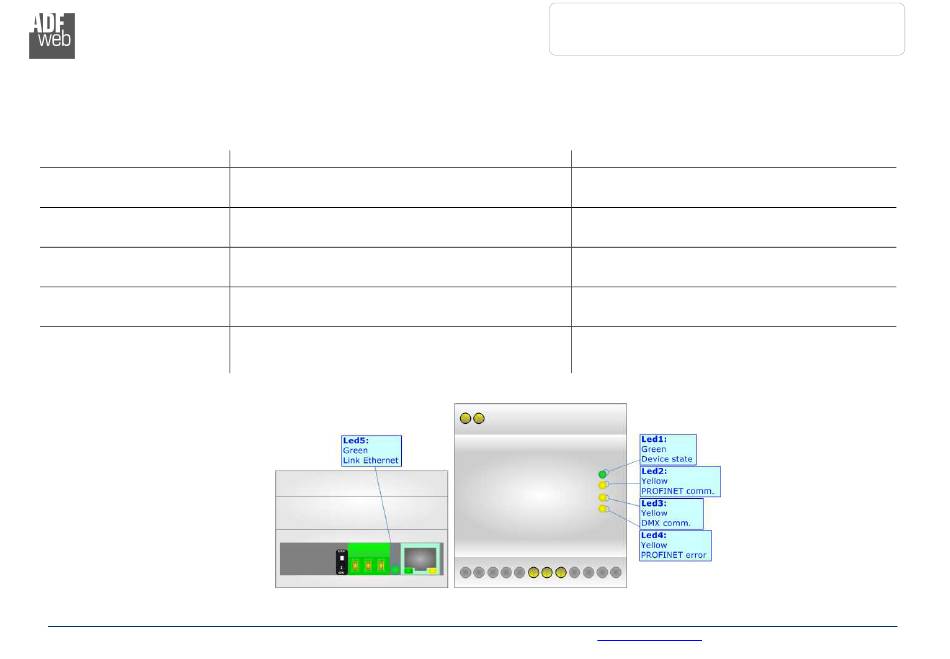

The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: PROFINET communication
(yellow)
3: DMX communication
(yellow)
4: PROFINET error (yellow)
5: Ethernet Link (green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks slowly (~1Hz)
Blinks when PROFINET communication with the Master
is running
Blinks when DMX frame is received
ON: PROFINET communication is in fault
OFF: No faults are present
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
User Manual DMX / PROFINET
Document code: MN67614_ENG
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
Revision 1.000
Pagina 9 di 22
