LEDS (for HD67675-IP-A1):

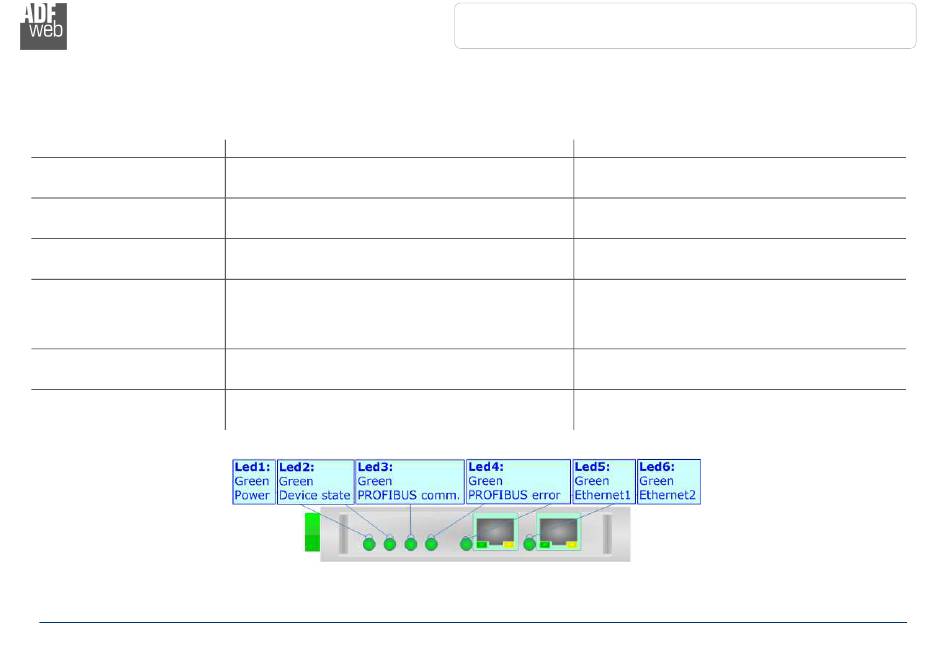

The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Power [supply voltage]
(green)
2: Device state (green)
3: PROFIBUS comm. (yellow)
4: PROFIBUS error (red)
5: Ethernet1 (green)
6: Ethernet2 (green)
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
Blinks slowly (~1Hz)
Blinks quickly when is communicating with at least one
PROFIBUS slave device
ON: All slaves are communicating properly with the
master.
OFF: The communication with at least one PROFIBUS
slave is not functioning
Ethernet1 link
Ethernet2 link
User Manual BACnet slave / PROFIBUS master - Converter
Document code: MN67675_ENG
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
