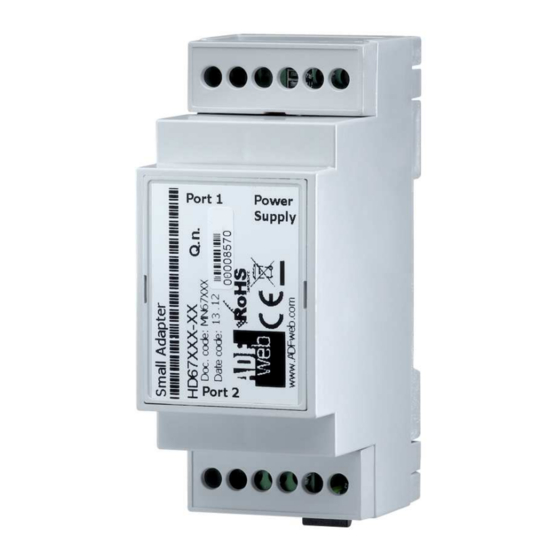

ADF Web HD67839 Series User Manual

Dali / ethernet - converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Industrial Electronic Devices
User Manual
Revision 1.001
English
DALI / Ethernet - Converter
(Order Code: HD67839-B2-Y, HD67839-B2-N)
for Website information:
www.adfweb.com?Product=HD67839
for Price information:
www.adfweb.com?Price=HD67839-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual DALI / Ethernet
Document code: MN67839_ENG
For others DALI products, see also the following links:
Converter DALI to
www.adfweb.com?Product=HD67822
www.adfweb.com?Product=HD67831
www.adfweb.com?Product=HD67832
www.adfweb.com?Product=HD67833
www.adfweb.com?Product=HD67834
www.adfweb.com?Product=HD67835
www.adfweb.com?Product=HD67836
www.adfweb.com?Product=HD67837
www.adfweb.com?Product=HD67838
www.adfweb.com?Product=HD67840
www.adfweb.com?Product=HD67842
www.adfweb.com?Product=HD67843
www.adfweb.com?Product=HD67844
www.adfweb.com?Product=HD67845
www.adfweb.com?Product=HD67848
www.adfweb.com?Product=HD67849
www.adfweb.com?Product=HD67850
www.adfweb.com?Product=HD67941
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.001
Pagina 1 di 62
(KNX)
(RS485)
(BACnet/IP Master)
(BACnet/IP Slave)
(CAN)
(CANopen)
(DeviceNet Master)
(DeviceNet Slave)
(DMX)
(EtherNet/IP)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(PROFINET)
(SNMP Manager)
(SNMP Agent)
(MQTT)
Phone +39.0438.30.91.31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD67839 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADF Web HD67839 Series

Summary of Contents for ADF Web HD67839 Series

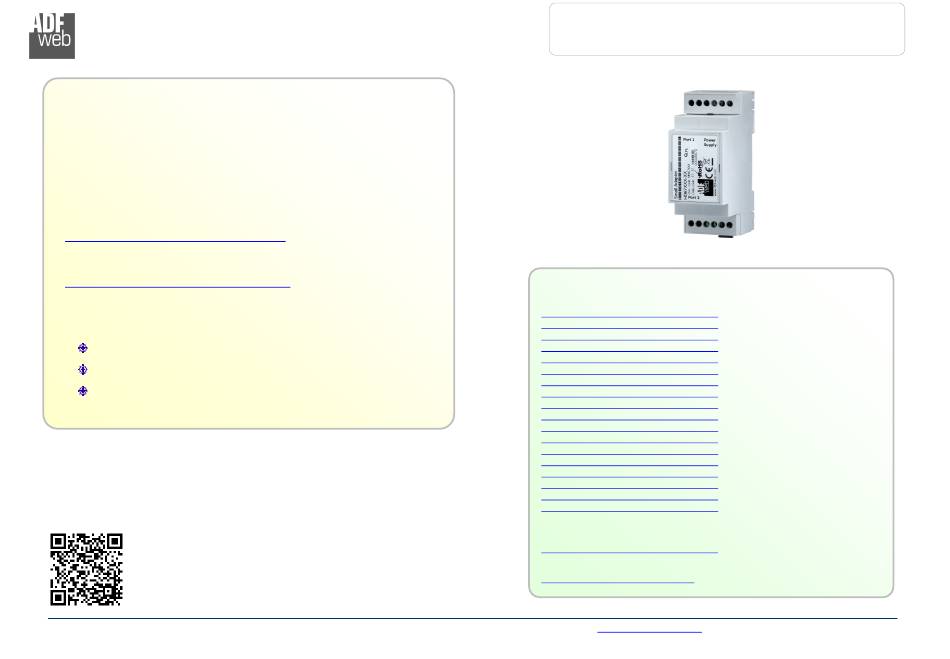

  • Page 1 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 1 di 62 Industrial Electronic Devices User Manual Revision 1.001 English DALI / Ethernet - Converter (Order Code: HD67839-B2-Y, HD67839-B2-N) for Website information: www.adfweb.com?Product=HD67839 for Price information: www.adfweb.com?Price=HD67839-B2 For others DALI products, see also the following links: Converter DALI to www.adfweb.com?Product=HD67822 (KNX)

  • Page 2: Table Of Contents

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 2 di 62 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated...

  • Page 3: Security Alert

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 3 di 62 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.

  • Page 4: Example Of Connection

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 4 di 62 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...

  • Page 5: Connection Scheme

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 5 di 62 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67839-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...

  • Page 6: Characteristics

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 6 di 62 Industrial Electronic Devices CHARACTERISTICS: The HD67839 is a DALI / Ethernet - Converter. It has the following characteristics: Up to 64 devices on DALI bus; Configurator for DALI network/devices; DALI 1 and DALI 2 supported;...

  • Page 7: Power Supply

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 7 di 62 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC:...

  • Page 8: Function Modes

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 8 di 62 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’...

  • Page 9: Leds

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 9 di 62 Industrial Electronic Devices LEDS: The device has got five LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...

  • Page 10: Dali

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 10 di 62 Industrial Electronic Devices DALI: DALI stands for “Digital Addressable Lighting Interface” and it is an interface protocol for digital communication between electronic lighting equipment (electronic ballasts, transformers, etc.). With the right choice of individual DALI components an extremely wide range of requirements can be met, from operating the lighting system from a simple light switch to lighting management systems for entire office complexes with thousands of light sources.

  • Page 11: Ethernet

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 11 di 62 Industrial Electronic Devices ETHERNET: The Ethernet port is used for the Ethernet communication, for programming DALI network and for programming the device. The Ethernet connection must be made using Connector2 of HD67839-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m.

  • Page 12: Use Of Compositor Sw67839

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 12 di 62 Industrial Electronic Devices USE OF COMPOSITOR SW67839: To configure the Converter, use the available software that runs with Windows called SW67839. It is downloadable on the site www.adfweb.com and its operation is described in this document.
  • Page 13 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 13 di 62 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “DALI / Ethernet - Converter”...

  • Page 14: Software Options

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 14 di 62 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
  • Page 15 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 15 di 62 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software. ADFweb.com Srl –...

  • Page 16: Set Communication

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 16 di 62 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of Ethernet bus. By Pressing the “Set Communication” button from the main window for SW67839 (Fig. 2) the window “Set Communication”...

  • Page 17: Dali Access

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 17 di 62 Industrial Electronic Devices DALI ACCESS: By pressing the “DALI Access” button from the main window for SW67839 (Fig. 2) the window “Select the DALI Device Present in the Network”...

  • Page 18: Update Device

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 18 di 62 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary.
  • Page 19 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 19 di 62 Industrial Electronic Devices Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67839 device.

  • Page 20: Use Of Dali Console Software

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 20 di 62 Industrial Electronic Devices USE OF DALI CONSOLE SOFTWARE: To configure DALI network and test the communication, it is possible to use the available software that runs with Windows called “DALI Console”.

  • Page 21: Structure Of The Software

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 21 di 62 Industrial Electronic Devices STRUCTURE OF THE SOFTWARE: The software layout is very simple and it is structured in this way: “Menu bar” (Fig. 8, Point 1): it is possible to open the setup window and see the informations about the DALI Console software;...

  • Page 22: Setup

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 22 di 62 Industrial Electronic Devices MENU BAR ETUP This section defines the connection’s parameters to the Ethernet side of the HD67839 converter. By Pressing the “Setup” button from the menu bar of the DALI Console software, the “SETUP” window appears (Fig. 9). Figure 9: “Setup”...
  • Page 23 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 23 di 62 Industrial Electronic Devices …: EARCH This section is used to scan the DALI network and assign automatically the ID to the DALI nodes connected to the converter. It is possible to reprogram the entire DALI network deleting and reprogramming the ID to all DALI devices (“Full Search”) or set the ID only to the DALI devices without it (“Partial Search”).

  • Page 24: Network Setting

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 24 di 62 Industrial Electronic Devices NETWORK SETTING: By pressing the button in the Network view, it is possible to scan the full DALI network and find all the DALI devices, the groups set and the scenes configured.
  • Page 25 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 25 di 62 Industrial Electronic Devices The means of the fields for the “CONTROL COMMANDS” section are: In the “POWER CONTROL” bar it is possible to change the actual ADV of the selected DALI device; In the field “COMMAND”...
  • Page 26 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 26 di 62 Industrial Electronic Devices ROUPS The means of the fields for the “CONTROL COMMANDS” section are: In the “POWER CONTROL” bar it is possible to change the actual ADV of the selected DALI group; In the field “COMMAND”...
  • Page 27 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 27 di 62 Industrial Electronic Devices CENES By selecting a DALI scene from the Network view, it is possible to see the devices that have programmed the selected scene. It is also possible to activate it by pressing the “ACTIVATE SCENE X”...
  • Page 28 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 28 di 62 Industrial Electronic Devices LL DEVICES ROADCAST The means of the fields for the “CONTROL COMMANDS” section are: In the “POWER CONTROL” bar it is possible to change the actual ADV of the entire DALI network;...

  • Page 29: Ethernet Protocols

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 29 di 62 Industrial Electronic Devices ETHERNET PROTOCOLS The HD67839 supports 4 different Ethernet protocols that can be used for controlling DALI side. The protocols are: DALI SCI: data transfer mode 1 (from Tridonic) DALI SCI2: data transfer mode 2 (from Tridonic) DALI SCI3: Ethernet commands (HEX format) (from ADFweb.com) DALI SCI4: Ethernet commands (ASCII format) (from ADFweb.com)

  • Page 30: Dali Sci

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 30 di 62 Industrial Electronic Devices DALI SCI: This set of simple commands allows to send DALI commands for controlling and reading DALI devices. They are fully compatible with SCI protocol from Tridonic.
  • Page 31 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 31 di 62 Industrial Electronic Devices (**) ADDR_HI...ADDR_LO It is set to zero. (***) Check XOR-combination of the previous 6 bytes (Start/Control ... to ... DATA_LO). HD67839  Ethernet The answer of the HD67839 to the PC uses 3 bytes: Byte 1 Byte 2...
  • Page 32 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 32 di 62 Industrial Electronic Devices (**) DATA If Identify = 1 or Echo = 1: 0 = DALI disable: 1 = DALI enable else: DALI answer byte (***) Check XOR-combination of the previous 2 bytes (Start/Control XOR DATA).

  • Page 33: Dali Sci2

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 33 di 62 Industrial Electronic Devices DALI SCI2: This set of simple commands allows to send DALI commands for controlling and reading DALI devices. They are fully compatible with SCI2 protocol from Tridonic.
  • Page 34 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 34 di 62 Industrial Electronic Devices (*) Start/Ctrl field Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Indentify/nDALI Echo DSI/nDALI Where: bit 7: Monitor Enable.
  • Page 35 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 35 di 62 Industrial Electronic Devices bit 2-1-0: 1: not used 2: send DALI answer (8 bit data) (DATA_LO) 3: send DALI (16 Bit) (DATA_MID, DATA_LO) 4: send eD (25 bit data) (DATA_HI, DATA_MID, DATA_LO) 5: send DSI (8 bit data if DATA_MID = 0, else 16 bit data (DATA_MID, DATA_LO)) (***) Check Sum XOR-combination of the previous 4 bytes (Control to DATA_LOW).
  • Page 36 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 36 di 62 Industrial Electronic Devices HD67839  Ethernet The HD67839 answer uses 5 bytes to the PC: Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Status (*) DATA_HI (*) DATA_MID (*) DATA_LOW (*)
  • Page 37 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 37 di 62 Industrial Electronic Devices (**) Check Sum XOR-combination of the previous 4 bytes (Status to DATA_LOW). ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...

  • Page 38: Dali Sci3

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 38 di 62 Industrial Electronic Devices DALI SCI3: This set of simple HEX commands allows to send DALI commands for controlling and reading DALI devices and to program the network. Dali network scanning This command is used to get the informations from the DALI nodes configured in the network.
  • Page 39 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 39 di 62 Industrial Electronic Devices Byte Data Byte Data Informations about DALI node 0 256-263 Informations about DALI node 32 8-15 Informations about DALI node 1 264-271 Informations about DALI node 33 16-23 Informations about DALI node 2 272-279...
  • Page 40 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 40 di 62 Industrial Electronic Devices Data map for each DALI node Offset Description Status of DALI node ADV of DALI node Response received after command from DALI node Bit 0, 1, 2, 3 (least significant) = Type of DALI node Bit 4, 5, 6, 7 (most significant) = Version of DALI node Min.
  • Page 41 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 41 di 62 Industrial Electronic Devices Dali Scene scanning This command is used to get the scenes configured into the DALI nodes configured in the network. Note: This command must be sent to the UDP port 10000. REQUEST Byte 0 Byte 1...
  • Page 42 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 42 di 62 Industrial Electronic Devices ADV Setting This command is used to set the ADV for a specific DALI node, for a Group or for the entire DALI network. REQUEST Byte Number Description...
  • Page 43 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 43 di 62 Industrial Electronic Devices Scene Setting This command is used to activate a programmed scene in a single DALI node, in a group or for the entire DALI network. REQUEST Byte Number Description...
  • Page 44 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 44 di 62 Industrial Electronic Devices Generic DALI command This command is used to send a generic DALI command to a DALI node, to a group or to the entire network. REQUEST Byte Number Description...
  • Page 45 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 45 di 62 Industrial Electronic Devices Scene Programming This commands are used to program the scenes inside the DALI nodes. It is necessary to send two consecutive commands for the programming.
  • Page 46 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 46 di 62 Industrial Electronic Devices The DALI ID can have different value in relation to the ADV to manage: 0 to 63 (0x00 to 0x3F) to manage a single DALI node; 64 to 79 (0x40 to 0x4F) to manage the Groups;...
  • Page 47 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 47 di 62 Industrial Electronic Devices Group Setting This command is used to enable/disable the membership of the DALI nodes inside the group. REQUEST Byte Number Description 0x00 0x10 0x00 0x00 0x00...
  • Page 48 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 48 di 62 Industrial Electronic Devices Node ID Setting These commands are used to program the ID Address on the DALI nodes. It is necessary to send them consecutively. IMPORTANT: it is possible to connect a single DALI node to the HD67839 to program correctly the ID Node.
  • Page 49 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 49 di 62 Industrial Electronic Devices REQUEST 2 Byte Number Description 0x00 0x10 0x00 0x00 0x00 0x02 0x04 Counter (increased for every command) (Hex) 0xFF 0x80 0x00 IMPORTANT: for correct setting, it is necessary to send the “REQUEST 2” two times. This is a specification from DALI protocol. ADFweb.com Srl –...

  • Page 50: Dali Sci4

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 50 di 62 Industrial Electronic Devices DALI SCI4: This set of simple ASCII commands allows to send DALI commands for controlling and reading DALI devices and to program the network. Getting data from DALI node This command is used to read a specific DALI node in the network.
  • Page 51 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 51 di 62 Industrial Electronic Devices Where: ‘ch’ = ID of the DALI ballast read; ‘val’ = actual ADV set; ‘typ’ = type of DALI lamp; ‘rs’ = last response to DALI command; ‘min’...
  • Page 52 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 52 di 62 Industrial Electronic Devices Setting ADV to a DALI node This command is used to set a specific ADV value into a single DALI node in the network. REQUEST S_BAL_ch_val (ASCII format)
  • Page 53 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 53 di 62 Industrial Electronic Devices Setting ADV to entire DALI network (broadcast) This command is used to set a specific ADV value into a the entire DALI network (broadcast). REQUEST S_BRD_00_val (ASCII format)
  • Page 54 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 54 di 62 Industrial Electronic Devices Setting new Max value This command is used to program the new maximum value of brightness in the DALI devices. REQUEST S_MAX_id_val (ASCII format) Where: ‘id’...
  • Page 55 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 55 di 62 Industrial Electronic Devices Setting new Power ON value This command is used to program the Power ON value in the DALI devices. REQUEST S_PON_id_val (ASCII format) Where: ‘id’...
  • Page 56 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 56 di 62 Industrial Electronic Devices Setting new Fade Rate value This command is used to program the new Fade Rate value in the DALI devices. REQUEST S_RAT_id_val (ASCII format) Where: ‘id’...
  • Page 57 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 57 di 62 Industrial Electronic Devices Start Full Search This command is to start the full search of DALI network. The converter will remove all the addresses from the DALI devices and reprogram them (like “Full Search”...
  • Page 58 User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 58 di 62 Industrial Electronic Devices Check status of Full/Partial Search This command is to check the progresses of the Search. It is possible to see if the converter is still searching or if it is finished. REQUEST S_TEST_SEARCH (ASCII format)

  • Page 59: Mechanical Dimensions

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 59 di 62 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 15: Mechanical dimensions scheme for HD67839-B2-x ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...

  • Page 60: Ordering Informations

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 60 di 62 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67839 – B 2 - x DALI Bus power supply Y: present (the converter feeds the DALI bus) N: not present (the converter doesn’t feed the DALI bus) Connectors Type...

  • Page 61: Disclaimer

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 61 di 62 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.

  • Page 62: Warranties And Technical Support

    User Manual DALI / Ethernet Document code: MN67839_ENG Revision 1.001 Pagina 62 di 62 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
