Industrial Electronic Devices
User Manual
Revision 1.000
English
PROFINET / KNX - Converter
(Order Code: HD67818-KNX-B2)
for Website information:
www.adfweb.com?Product=HD67818
for Price information:
www.adfweb.com?Price=HD67818-KNX-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual PROFINET / KNX
Document code: MN67818_ENG
For others KNX products, see also the following links:
Converter KNX to
www.adfweb.com?Product=HD67801
www.adfweb.com?Product=HD67802
www.adfweb.com?Product=HD67803
www.adfweb.com?Product=HD67804
www.adfweb.com?Product=HD67807
www.adfweb.com?Product=HD67808
www.adfweb.com?Product=HD67809
www.adfweb.com?Product=HD67810
www.adfweb.com?Product=HD67811
www.adfweb.com?Product=HD67812
www.adfweb.com?Product=HD67813
www.adfweb.com?Product=HD67814
www.adfweb.com?Product=HD67815
www.adfweb.com?Product=HD67820
www.adfweb.com?Product=HD67821
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.000
Pagina 1 di 23
(BACnet Master)
(BACnet Slave)
(CAN)
(CANopen)
(EtherNet/IP)
(DeviceNet Master)
(DeviceNet Slave)
(J1939)
(M-Bus Master/wM-Bus)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(SNMP)
(DMX)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web PROFINET / KNX
Summary of Contents for ADF Web PROFINET / KNX

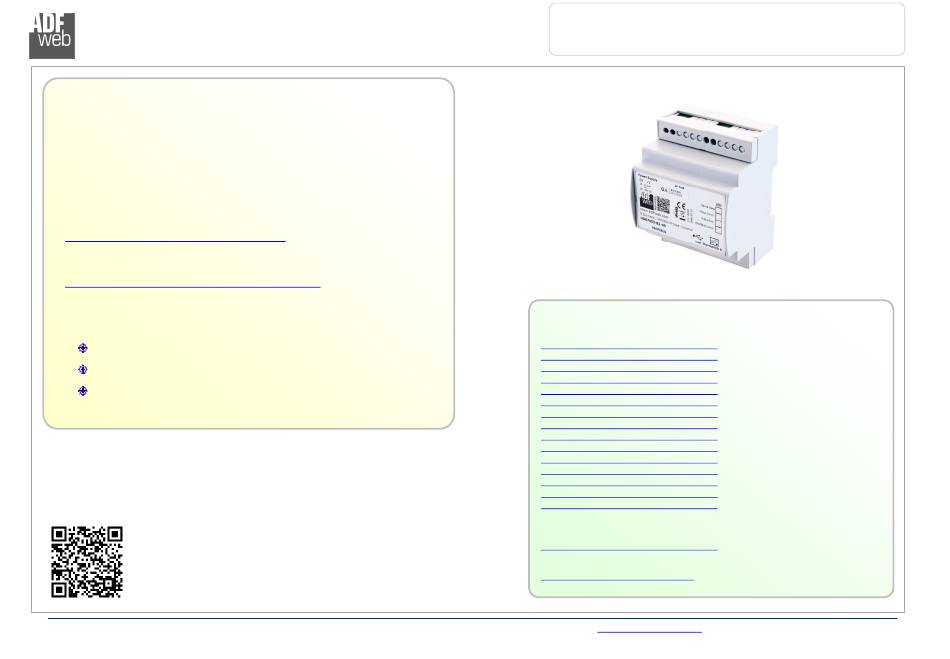

- Page 1 User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 1 di 23 Industrial Electronic Devices User Manual Revision 1.000 English PROFINET / KNX - Converter (Order Code: HD67818-KNX-B2) for Website information: www.adfweb.com?Product=HD67818 for Price information: www.adfweb.com?Price=HD67818-KNX-B2 For others KNX products, see also the following links:...
-
Page 2: Table Of Contents
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 2 di 23 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is:... -
Page 3: Security Alert
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 3 di 23 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 4 di 23 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 5 di 23 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67818-KNX-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Pagina 6 di 23 Industrial Electronic Devices CHARACTERISTICS: The HD67818 is a PROFINET / KNX Converter. It has the following characteristics: Up to 1440 bytes in reading and 1440 bytes in writing; Triple isolation between KNX - Power Supply, KNX – Ethernet, Power Supply - Ethernet. -
Page 7: Power Supply
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 7 di 23 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax... -
Page 8: Function Modes
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 8 di 23 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. -
Page 9: Leds
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 9 di 23 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. -
Page 10: Knx
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 10 di 23 Industrial Electronic Devices KNX: KNX is the standard that allows the automated and decentralized management of the technologic plans of a big typology of structures: commercial buildings, factories, houses, public locals, schools and so on. -
Page 11: Ethernet
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 11 di 23 Industrial Electronic Devices ETHERNET: The Ethernet port is used for the PROFINET communication and for programming the device. The Ethernet connection must be made using Connector2 of HD67818-KNX-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 12: Use Of Compositor Sw67818
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 12 di 23 Industrial Electronic Devices USE OF COMPOSITOR SW67818: To configure the Converter, use the available software that runs with Windows called SW67818. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Project / Open Project
Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “PROFINET / KNX - Converter” in order to configure another device in the same manner, it is necessary to maintain the folder and all its contents;... -
Page 14: Software Options
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 14 di 23 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 15: Set Communication
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 15 di 23 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, KNX and PROFINET. By Pressing the “Set Communication” button from the main window for SW67818 (Fig. 2) the window “Set Communication”... -
Page 16: Knx Access
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 16 di 23 Industrial Electronic Devices KNX ACCESS: pressing “KNX Access” button from the main window for SW67818 (Fig. 2) the “KNX Set Access” window appears (Fig. 4). The means of the fields are: field “Enable”... -
Page 17: Xml File
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 17 di 23 Industrial Electronic Devices If the field “On Timer” is checked, the gateway sends the KNX command cyclically; In the field “Poll Time” the delay in ms between two KNX commands is defined (if “On Timer” is checked);... -
Page 18: Update Device
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 18 di 23 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. - Page 19 User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 19 di 23 Industrial Electronic Devices If you know the actual IP address of the device, you have to use this procedure: Turn on the Device with the Ethernet cable inserted;...
-
Page 20: Mechanical Dimensions
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 20 di 23 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8: Mechanical dimensions scheme for HD67818-KNX-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 21: Ordering Informations
Connectors Type 2: Fixed 5mm Screw Terminal Enclosure Type B: 4M, 35mm DIN Rail mounting Device Family HD67818-KNX: PROFINET / KNX - Converter Order Code: HD67818-KNX-B2 - PROFINET / KNX – Converter ACCESSORIES: Order Code: AC34001 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC Order Code: AC34002 35mm Rail DIN - Power Supply 110V AC 50/60Hz –... -
Page 22: Disclaimer
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 22 di 23 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 23: Warranties And Technical Support
User Manual PROFINET / KNX Document code: MN67818_ENG Revision 1.000 Pagina 23 di 23 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com...
