Industrial Electronic Devices
User Manual
Revision 1.100
English

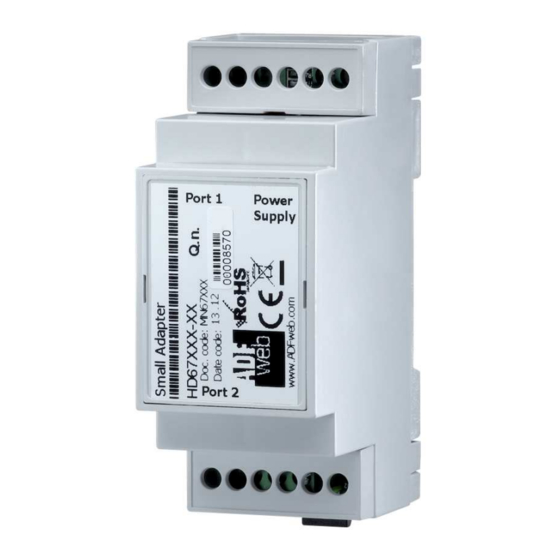

DALI / Modbus Slave - Converter
(Order Code: HD67843-B2-Y, HD67843-B2-N)
for Website information:
www.adfweb.com?Product=HD67843
for Price information:
www.adfweb.com?Price=HD67843-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual DALI / Modbus Slave - Converter
Document code: MN67843_ENG
For others DALI products, see also the following links:
Converter DALI to
www.adfweb.com?Product=HD67822
www.adfweb.com?Product=HD67831
www.adfweb.com?Product=HD67832
www.adfweb.com?Product=HD67833
www.adfweb.com?Product=HD67834
www.adfweb.com?Product=HD67835
www.adfweb.com?Product=HD67836
www.adfweb.com?Product=HD67837
www.adfweb.com?Product=HD67838
www.adfweb.com?Product=HD67839
www.adfweb.com?Product=HD67840
www.adfweb.com?Product=HD67842
www.adfweb.com?Product=HD67844
www.adfweb.com?Product=HD67845
www.adfweb.com?Product=HD67848
www.adfweb.com?Product=HD67849
www.adfweb.com?Product=HD67850
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.100
Pagina 1 di 50
(KNX)
(RS485)
(BACnet/IP Master)
(BACnet/IP Slave)
(CAN)
(CANopen)
(DeviceNet Master)
(DeviceNet Slave)
(DMX)
(Ethernet)
(EtherNet/IP)
(Modbus Master)
(Modbus TCP Master)
(Modbus TCP Slave)
(PROFINET)
(SNMP Manager)
(SNMP Agent)
Phone +39.0438.30.91.31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD67843-B2-Y and is the answer not in the manual?

Questions and answers

Related Manuals for ADF Web HD67843-B2-Y

Summary of Contents for ADF Web HD67843-B2-Y

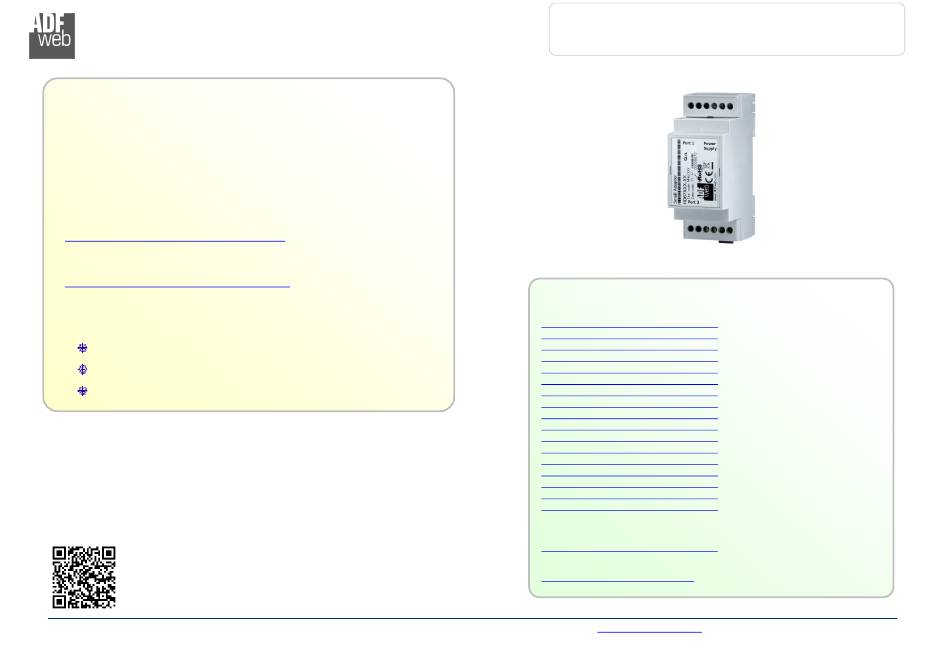

  • Page 1 Pagina 1 di 50 Industrial Electronic Devices User Manual Revision 1.100 English DALI / Modbus Slave - Converter (Order Code: HD67843-B2-Y, HD67843-B2-N) for Website information: www.adfweb.com?Product=HD67843 for Price information: www.adfweb.com?Price=HD67843-B2 For others DALI products, see also the following links: Converter DALI to Benefits and Main Features: www.adfweb.com?Product=HD67822...
