Industrial Electronic Devices

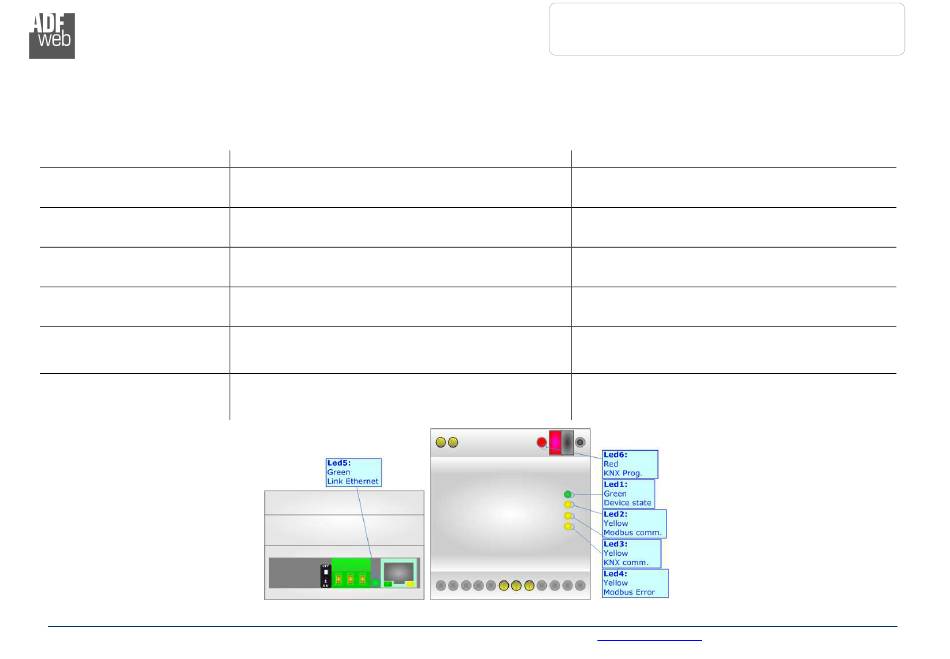

LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: Modbus communication
(yellow)
3: KNX communication
(yellow)
4: Modbus error (yellow)
5: Ethernet Link (green)
6: KNX Programmation (red)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks slowly (~1Hz)
Blinks when Modbus frame (RS232/RS485) is received
Blinks when KNX frame is received
ON: No Modbus requests are received
OFF: No errors are present
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: KNX Programmation activated
OFF: KNX Programmation not activated
User Manual Modbus Slave / KNX
Document code: MN67813_ENG
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
Revision 1.003
Pagina 10 di 26
