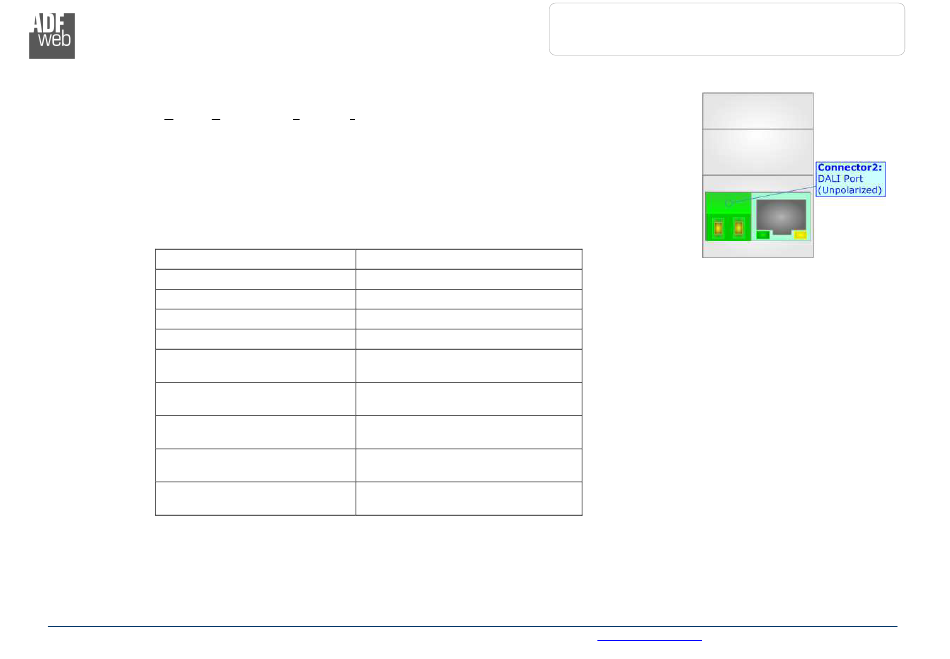

DALI:

DALI stands for "Digital Addressable Lighting Interface" and it is an interface protocol for digital
communication between electronic lighting equipment (electronic ballasts, transformers, etc.).
With the right choice of individual DALI components an extremely wide range of requirements can be met,
from operating the lighting system from a simple light switch to lighting management systems for entire
office complexes with thousands of light sources. Using ADFweb.com's DALI converters, any light source,
including incandescent lamps, fluorescent lamps, high-intensity discharge lamps and even LEDs, can be
controlled irrespective of whether they are installed in an office, a restaurant or a street light.
Characteristics
Medium
Topology
Device power consumption
DALI voltage
Maximum cable length
Maximum number of DALI
devices
Baud rate
Maximum number of DALI
groups
Maximum number of DALI
scenes
ADFweb.com Srl – IT31010 – Mareno – Treviso
Description
Shielded Twisted Pair
Linear, Star or mixed
Max 250 mA
9.5 V – 22.5 V (typical 16 V)
300 m (1.5 mm2 wire)
64
1200 bps
16
16
INFO:
User Manual DALI / Ethernet
Document code: MN67839_ENG Revision 1.001
