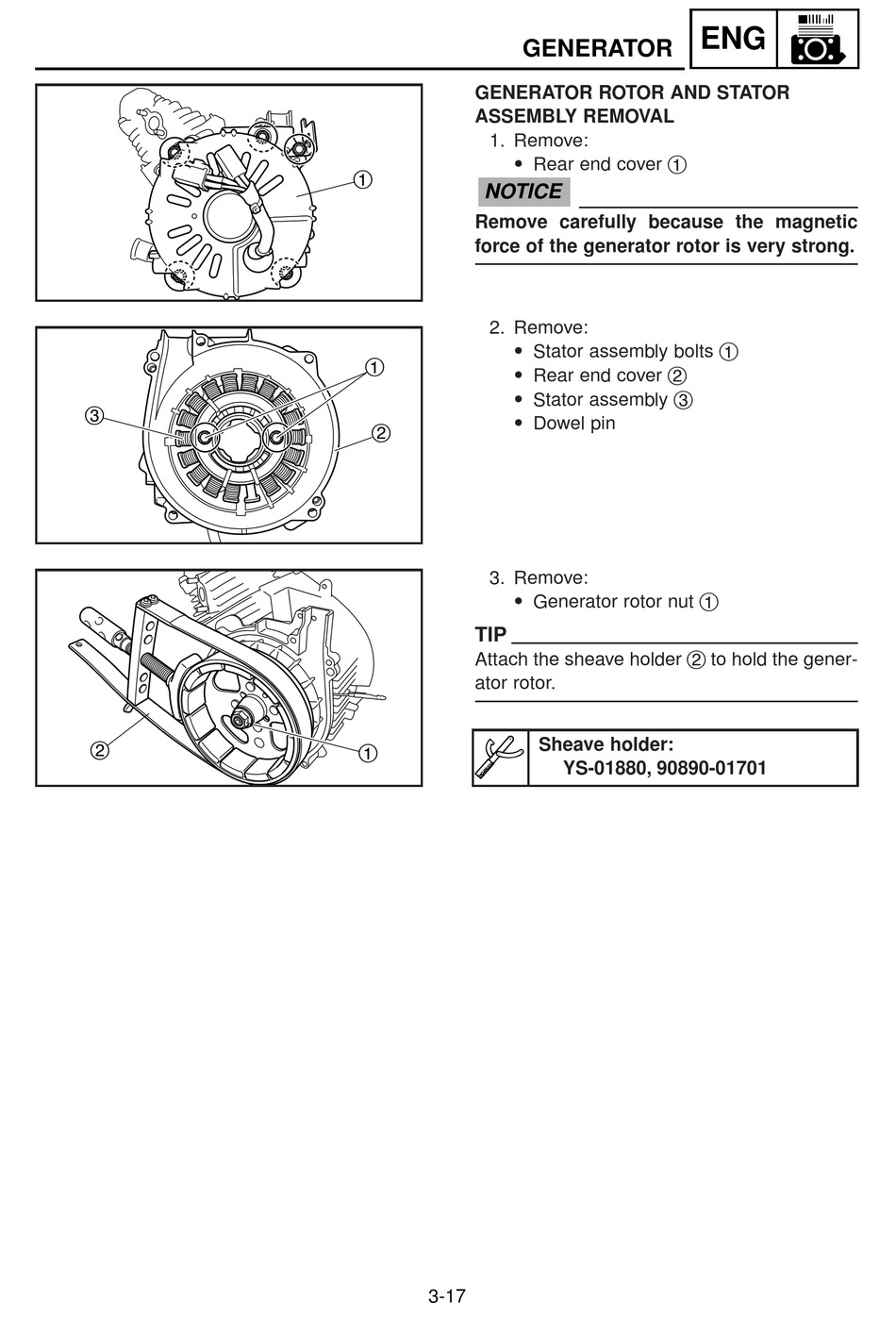

GENERATOR ROTOR AND STATOR
ASSEMBLY REMOVAL
1. Remove:
9 Rear end cover 1
1
NOTICE
Remove carefully because the magnetic
force of the generator rotor is very strong.
2. Remove:
9 Stator assembly bolts 1
1
9 Rear end cover 2
9 Stator assembly 3
9 Dowel pin
2
3. Remove:
9 Generator rotor nut 1
TIP
Attach the sheave holder 2 to hold the gener-
ator rotor.
1
3-17
GENERATOR
Sheave holder:
YS-01880, 90890-01701
