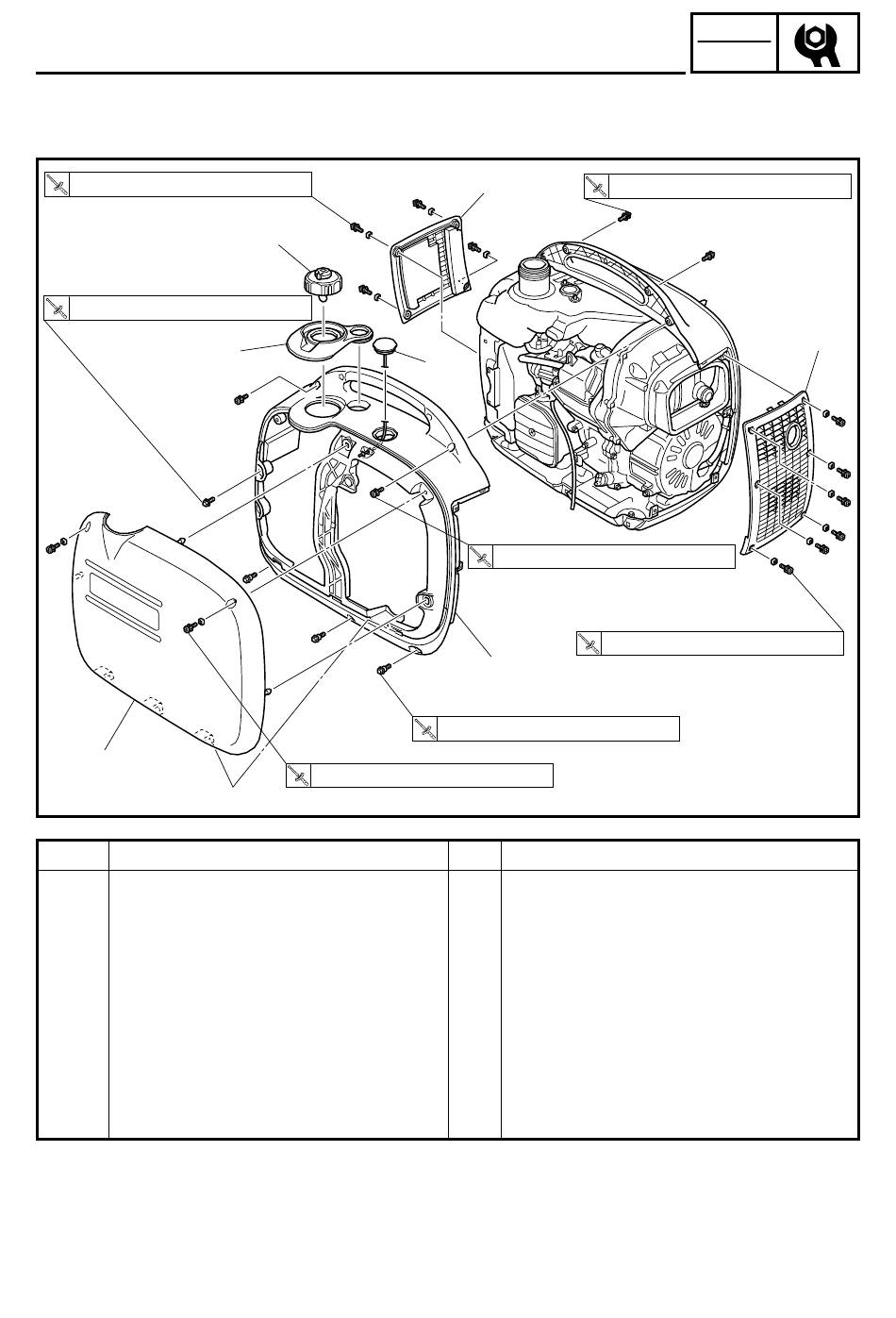

COVERS AND FUEL TANK

COVERS
1.5 Nm (0.15 m · kgf, 1.1 ft · lbf)
6.5 Nm (0.65 m · kgf, 4.8 ft · lbf)
1
Order

Covers removal

1 Rear cover 1
2 Side cover right
3 Side cover left
4 Fuel tank cap
5 Rear cover 2
6 Holder
7 Cap
COVERS AND FUEL TANK
4
6
1.5 Nm (0.15 m · kgf, 1.1 ft · lbf)
Job name
2
7
1.5 Nm (0.15 m · kgf, 1.1 ft · lbf)
5
6.5 Nm (0.65 m · kgf, 4.8 ft · lbf)
Q'ty
Remove the parts in the order listed
below.
1
1
1
1
1
1
1
For installation, reverse the removal
procedure.
