02-32

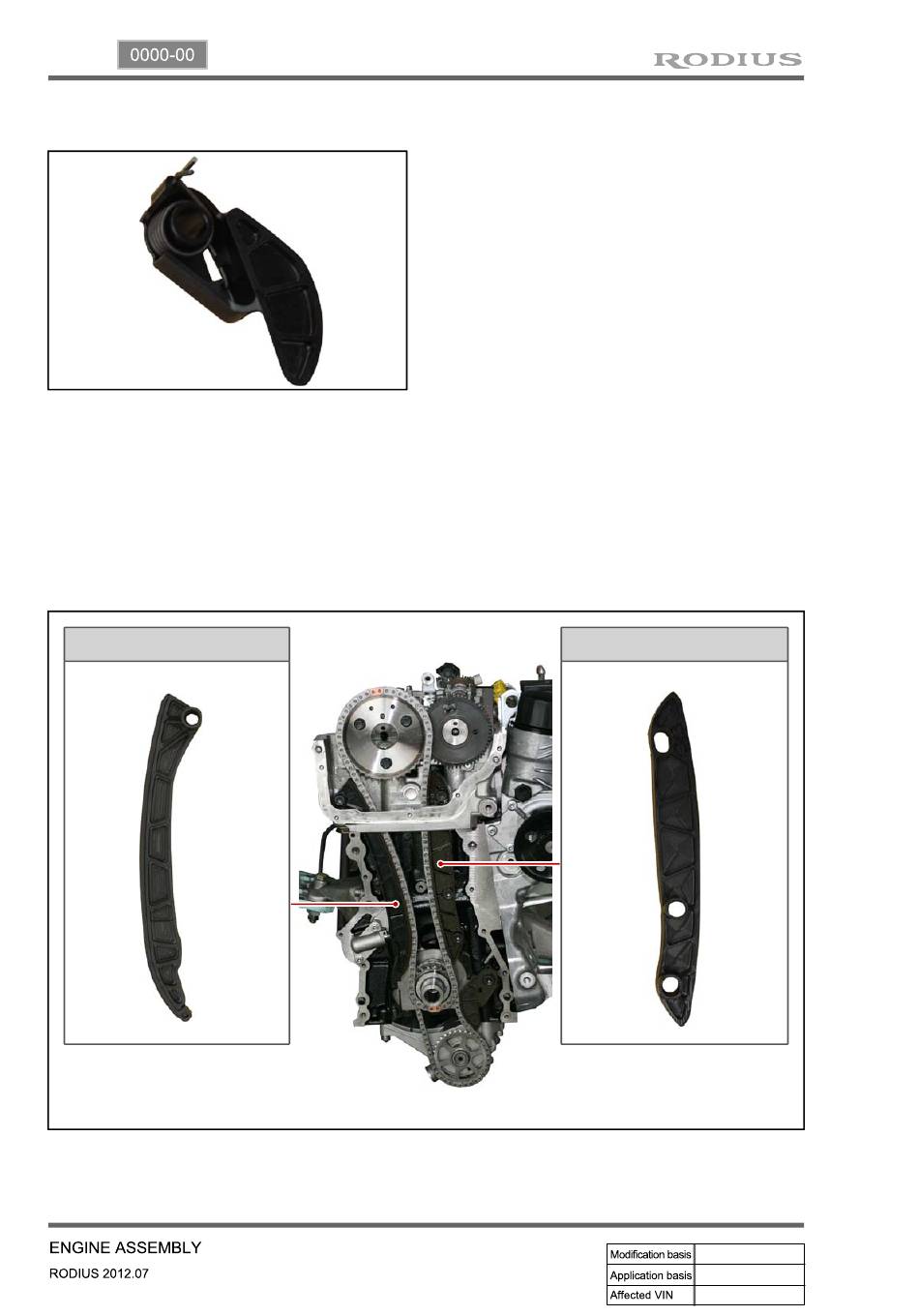

(3) Mechanical Tensioner Assembly

(4) Guide rail

The guide rail is used for optimizing the movement of chain drive system. And it also prevents the
chain from contacting each other when the chain is loose, and reduces the chain wear.
The guide rail is made of plastic, nylon, Teflon, etc. The guide rail is specially required when the
distance between two spokes is too great. It pushes the chain with constant force so that the
chain can work smoothly. The guide rail is fitted by pins.
Tensioner guide rail
Operating principle
- Use only spring tension
Tensioner type
- Compensation and impact absorbing
Static and dynamic force
- Spring
Clamping guide rail
