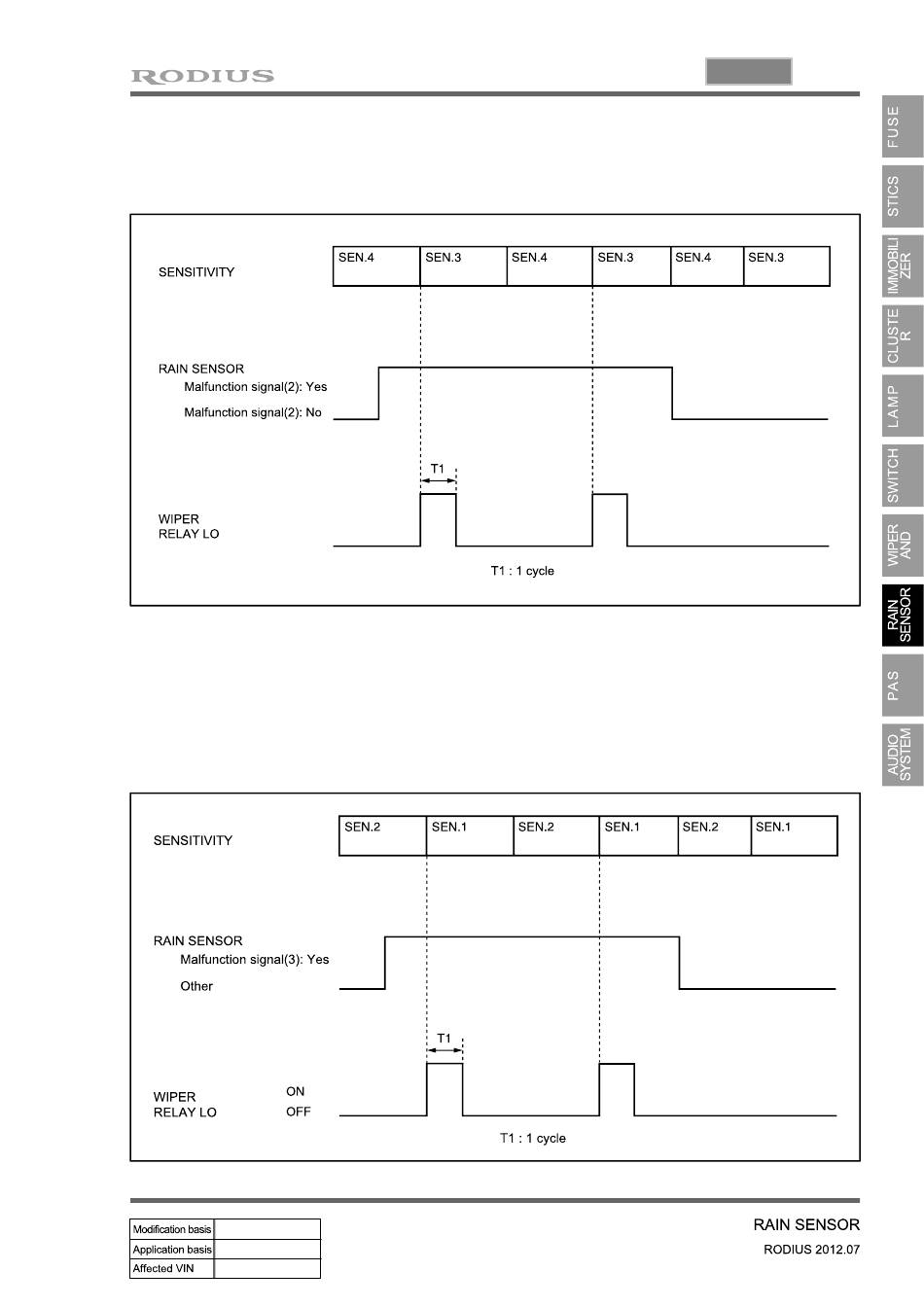

2) The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper
sensitivity is changed to 3 from 4 during receiving the malfunction signal (2) from the rain
sensor (while the ignition key is in "ON" position and the wiper switch is in "AUTO" position).
3) The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper sensitivity
is changed to 2 from 1 during receiving the malfunction signal (3) from the rain sensor (while
the ignition key is in "ON" position and the wiper switch is in "AUTO" position). Also, the wiper
relay (LO) is turned on and the wiper motor runs one cycle when the wiper sensitivity is
changed to 2 from 1 during receiving the ground fixed or IGN fixed signal from the rain sensor.
