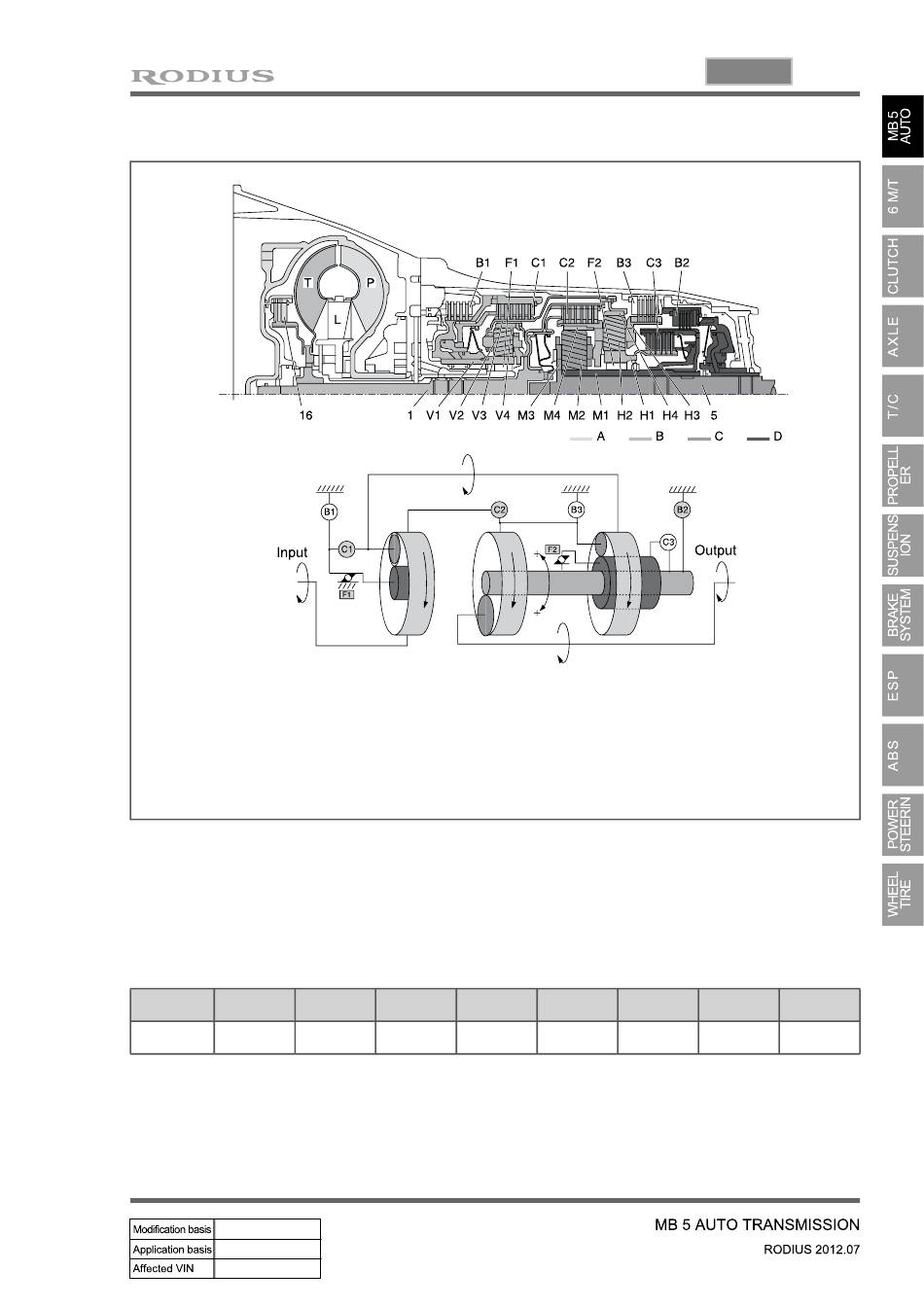

▶3rd Gear (1.486)
16. Torque converter lockup clutch
A. Engine speed
B. Transmission, input shaft
C. 1st gear ratio
- Input shaft: Clockwise rotation
- Front ring gear: Clockwise rotation
- Center ring gear: Clockwise rotation by clutch 2 activation (direct connection)
- Center sun gear: Locked by B2, Planetary gear carrier: Clockwise rotation with reduced
speed
- Output shaft: Clockwise rotation
Gear C1
●
3
D. Mounting elements
H. Rear planetary gear set
L. Stator
M. Center planetary gear set
C2 C3 B1
●
3650-01
P. Impeller
T. Turbine wheel
V. Front planetary gear set
B2 B3 F1
●
