(1) Inspection

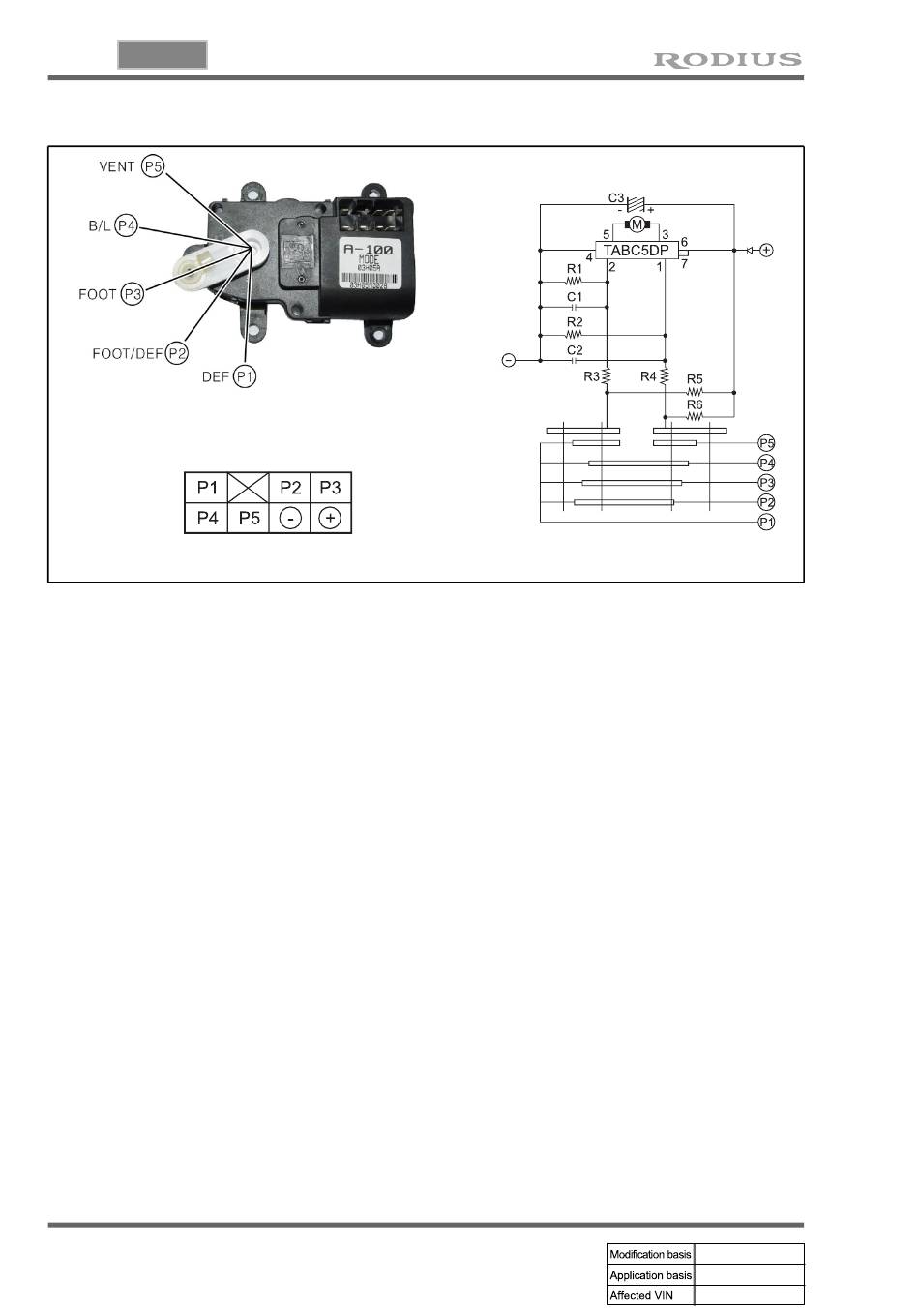

Circuit diagram
▶If the intake door mode on FATC is different from the actual intake door mode, check as
below.
1. Turn the ignition switch to ON position.
2. Measure the voltage between each terminal (P1 through P5)and positive (+) terminal in
respective mode.
(If the voltage is changed from 0 V to 12 V after selecting the mode, it is normal.)
3. If the voltage value is out of the specified value, check the related circuits for open.
4. If the circuits are in normal condition, replace the FATC.
5. If the voltage is within the specified value, replace the mode door actuator assembly.
6. Connect the positive (+) and negative (-) cables of temporary power supply to the door mode
actuator. And, connect the negative cable to each terminal (P1 through P5) to check its
operation.
(If it operates as shown in above figure, it is normal.)
