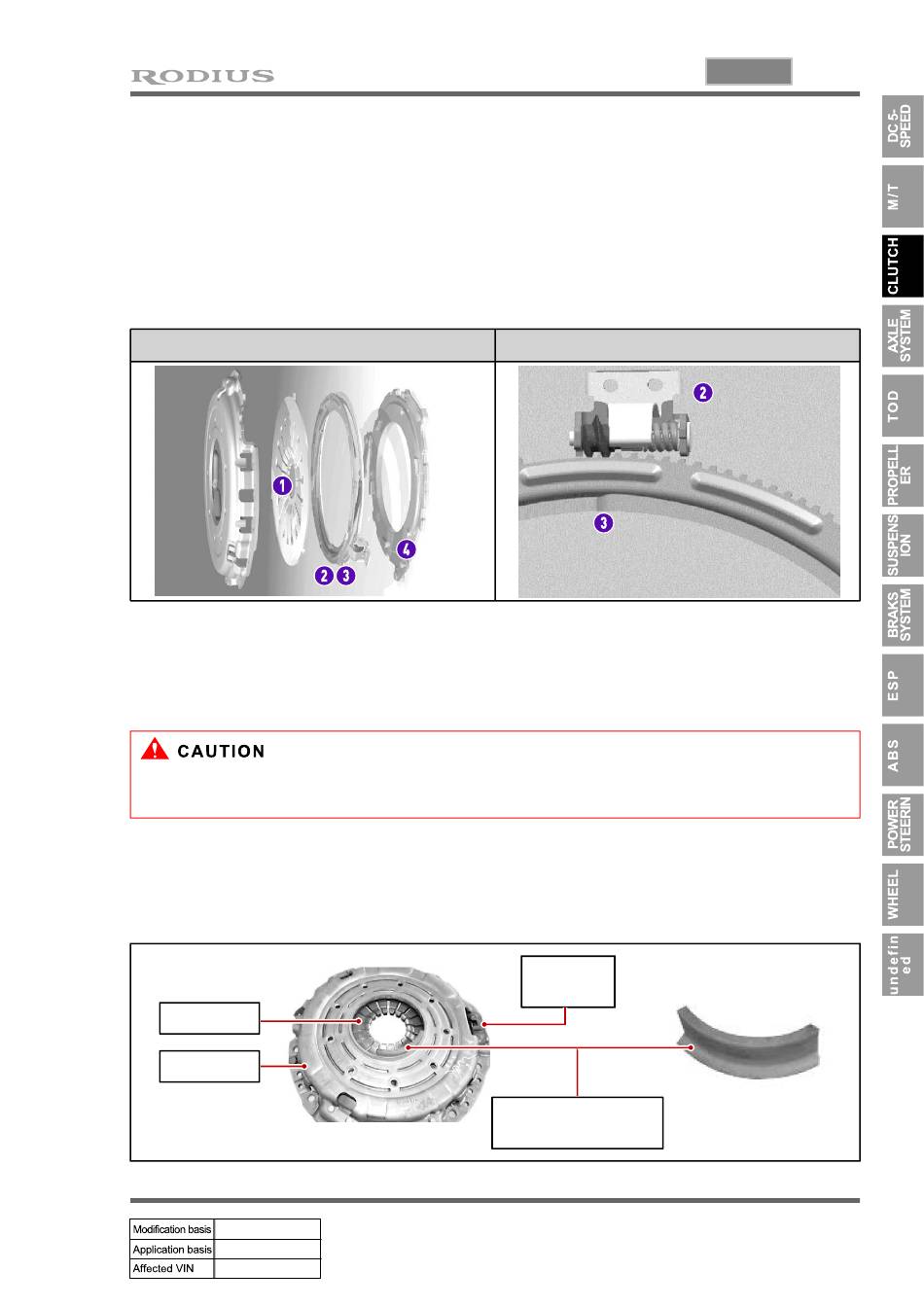

(4) SAT (Self Adjusting Technology)
SAT is new clutch which adjusts the clutch free play according to the wearness of clutch disc.
Operation description
▶
Diaphram spring rotates the adjusting equipment as clutch disc is wearing and so, pressure
plate is pushed to clutch disc side at the amount of wearness.
Disc wear (Free play) →
※
Pressure plate (4)
Clutch assembly
▶ Clutch replacement
-
Replacement of cluch disc → Replace the clutch cover assembly together.
- Reinstallation of clutch disc & cover → Apply the zig set (SST) on the clutch cover
set.
(Engine removal and reinstallation, Flywheel related job, Checking the clutch assy)
- When reinstall the clutch assembly without the special zig, Disc can be slip and worn
easily.
▶ Installation of special zig
- Identify the SAT clutch with adjusting equipment around the clutch cover.
- Adapt the zig set(4 pieces) between the clutch cover and diaphram spring around (Refer
to the picture).
Diaphram
Cover
Diaphram spring (1) → Adjusting equipment (2, 3) →
Adjusting
equipment
Zig for clutch removal
and installation
3010-01
Adjusting equipment
RODIUS 2004.09
03-5
CLUTCH
