DynaGATE 10-12 User manual Rev. 0-14 8 Interfaces in detail
8.13

The MicroSD card receptacle

The DynaGATE 10-12 includes a MicroSD card receptacle in the Service Panel.
It is integrated in a Combo MicroSD + MicroSIM cards receptacle (pull-lever) on the top side of the circuit
board.
8.13.1

How to insert / remove the MicroSD card in the receptacle

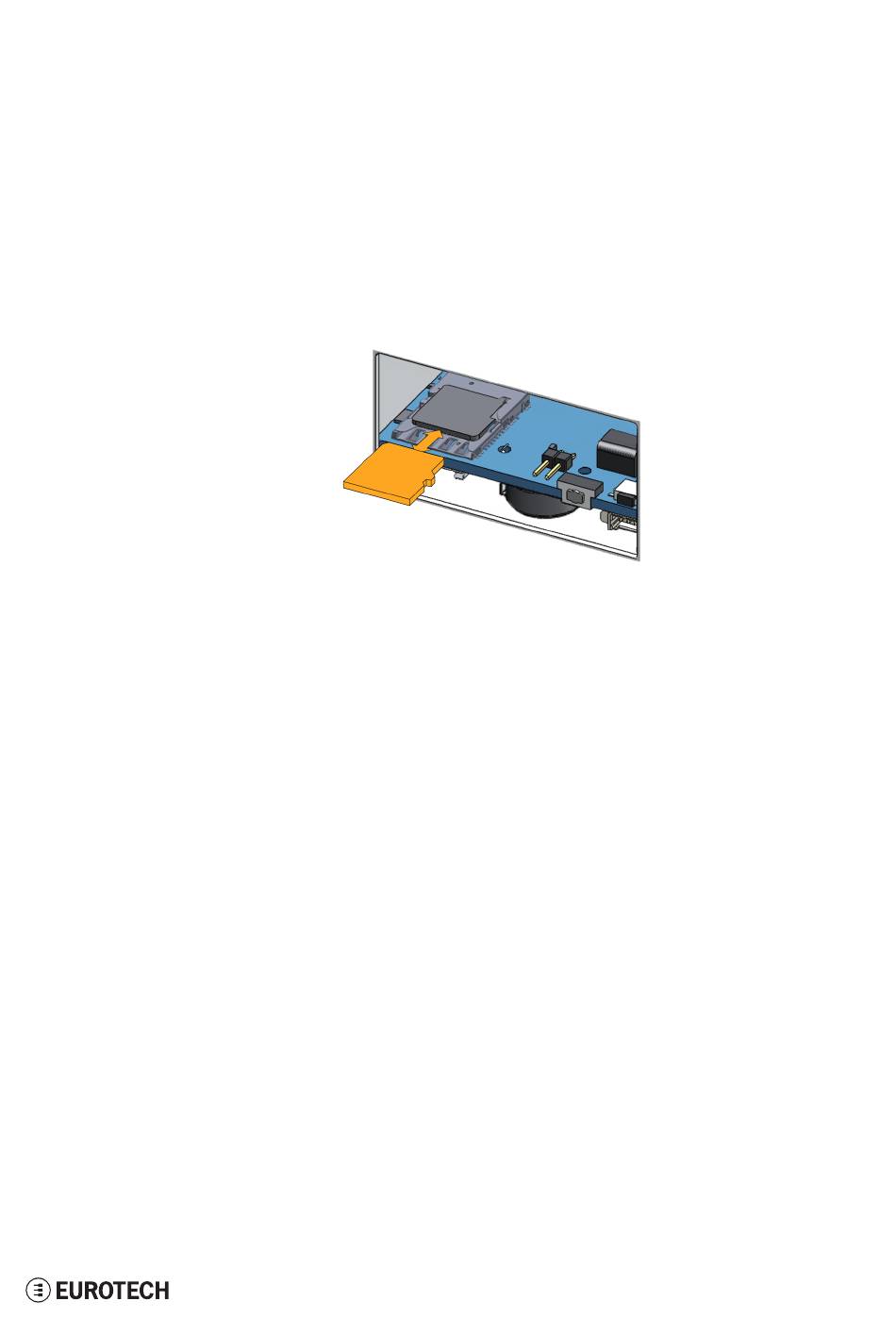

To insert the MicroSD card, push it in the holder with the contacts facing down.
To remove the Micro SD card, pull it out from the holder. Use your little finger or a pair of tweezers to
simplify the operation.
55 / 94
