Original User Manual
ReliaGATE 10-05-34
Multi-Service Gateway & Edge Controller
Rev. 1-0 — 13 May 2016 — REGATE-10-05-34_UserMan_EN_1-0 — ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReliaGATE 10-05-34 and is the answer not in the manual?

Questions and answers

Related Manuals for Eurotech ReliaGATE 10-05-34

Summary of Contents for Eurotech ReliaGATE 10-05-34

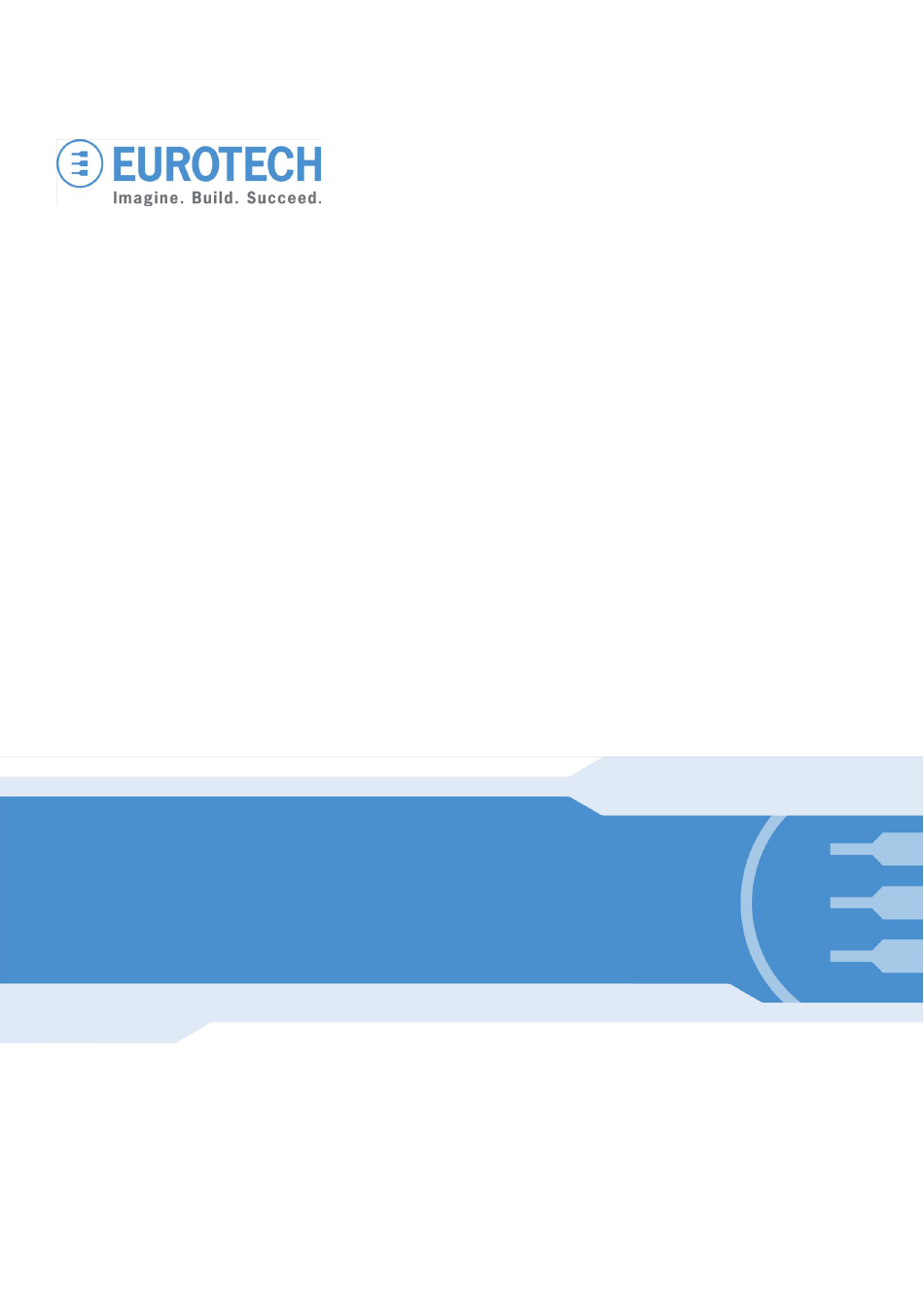

  • Page 1 Original User Manual ReliaGATE 10-05-34 Multi-Service Gateway & Edge Controller Rev. 1-0 — 13 May 2016 — REGATE-10-05-34_UserMan_EN_1-0 — ENGLISH...
  • Page 2 Trademarks All trademarks and registered trademarks are the property of their respective owners. Revision history Revision Description Date First release 13 May 2016 © 2016 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy...

  • Page 3: Table Of Contents

    10.1.3 How to turn ON the ReliaGATE 10-05-34 10.1.4 How to turn OFF the ReliaGATE 10-05-34 10.1.5 How to manage the ReliaGATE 10-05-34 power consumption 10.1.6 How to perform a power reset of the ReliaGATE 10-05-34 10.2 Wi-Fi and Bluetooth 10.2.1 Wi-Fi specifications 10.2.2 Bluetooth specifications...

  • Page 4: Trademarks

    Table of contents ReliaGATE 10-05-34 User Manual Rev 1-0 10.5.1 Connector pinout 10.5.2 Port specifications 10.6 Host USB port 10.6.1 Connector pinout 10.7 COM ports 0 and 1 10.7.1 How to insert RS-485 fail-safe and termination resistors 10.7.2 COM ports pinout 10.8 The MicroSD card receptacle...

  • Page 5: Table Of Contents

    16 How to install the product 16.1 How to install the ReliaGATE 10-05-34 using the Mounting Bracket 16.2 Optional: How to install the ReliaGATE 10-05-34 using the DIN Rail Mounting Kit 16.2.1 How to replace the Mounting Bracket with the DIN Rail Mounting Kit 16.2.2 How to install the ReliaGATE 10-05-34 on a DIN rail...
  • Page 6 (This page has been intentionally left blank)

  • Page 7: Important Information

    KEEP THIS DOCUMENT FOR FUTURE REFERENCE. Whenever you have any doubt regarding the correct understanding of the instructions contained in this document contact your local Eurotech Technical Support Team (see the last page of this document for further details). To lower the risk of personal injury, electric shock, fire or damage to equipment, observe the following precautions, as well as using good technical judgment, whenever installing / operating the product.

  • Page 8: Disclaimer Of Liability

    1 Important Information ReliaGATE 10-05-34 User Manual Rev 1-0 Disclaimer of liability Eurotech has reviewed the contents of this document to ensure accuracy and consistency with the hardware and software described. Always refer to the latest available manual revision available at: www.eurotech.com.

  • Page 9: Safety Instructions

    Only start the product with a power supply that meets the requirements stated on the voltage label. In case of uncertainties about the required power supply, contact the Eurotech Technical Support Team (see the back cover for full contact details) or the electricity authority.
  • Page 10 (This page has been intentionally left blank)

  • Page 11: How To Receive Technical Assistance

    If you have technical questions, or if you cannot isolate a problem with your product, or for any inquiry about repair and returns policies, contact: The Eurotech Global Support Center: https://eurotech.desk.com/ Your local Eurotech Technical Support Team: see the back cover for full contact details. / 62...
  • Page 12 (This page has been intentionally left blank)

  • Page 13: Conventions Used In This Document

    ReliaGATE 10-05-34 User Manual Rev 1-0 4 Conventions used in this document ONVENTIONS USED IN THIS DOCUMENT Conventions for signal names Convention Description Digital ground plane Active low signal Positive signal in differential pair Negative signal in differential pair Abbreviations for direction and electrical characteristics of...
  • Page 14 (This page has been intentionally left blank)

  • Page 15: Product Overview

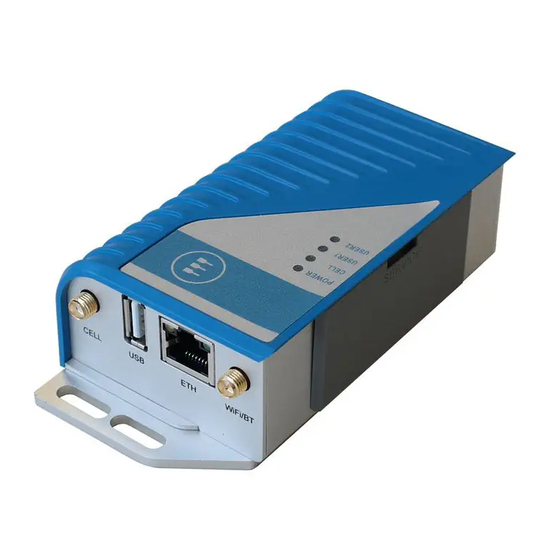

    5 Product overview RODUCT OVERVIEW The ReliaGATE 10-05-34 is a compact and lightweight device intended to be used as Multi-Service IoT Gateway. It is based on the NXP i.MX285 CPU, with 512MB of RAM, 4GB of eMMC, and a user- accessible microSD slot.

  • Page 16: Product Labels

    5 Product overview ReliaGATE 10-05-34 User Manual Rev 1-0 Product labels The product label is placed on the bottom side of the product. Label content Ref# Label example • ReliaGATE model number • ReliaGATE serial number • WEEE symbol • CE mark •...

  • Page 17: Fcc Class A Notice

    Modifications Any modifications made to this product that are not approved by Eurotech may void the authority granted to the user by the FCC to operate this product.

  • Page 18: Rohs Compliance

    6 Declaration of Conformity ReliaGATE 10-05-34 User Manual Rev 1-0 interference at his own expense. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.

  • Page 19: Declaration Of Conformity

    ReliaGATE 10-05-34 User Manual Rev 1-0 6 Declaration of Conformity In compliance with the Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE), the symbol on the right, shown on the product or within its literature, indicates separate collection for this electrical and electronic equipment (EEE) that has been placed on the market after 2005.
  • Page 20 ECHNICAL PECIFICATIONS (This page has been intentionally left blank) Specifications Description Processor NXP i.MX285, 454MHz, 1 core Memory 512 MB, DDR2 Embedded 4 GB eMMC Storage Other 1x MicroSD slot (user accessible) Ethernet 1x Fast Ethernet port 1x USB 2.0 Host port (Noise and Surge Protected) I/O Interfaces 1x RS-232 (3-wire, Surge Protected) 1x RS-485 (Surge Protected, with Termination and Fail-safe Resistors)

  • Page 21: Technical Specifications

    ReliaGATE 10-05-x4 User Manual Rev 1-0 8 Getting started / 62...

  • Page 23: Getting Started

    "How to access the interfaces under Linux" on page 41 4. Install the ReliaGATE 10-05-34. The ReliaGATE 10-05-34 is lightweight and compact. You can easily install it, even on a DIN rail. For further information, see: "Mechanical specifications" on page 53 "How to install the product"...
  • Page 24 (This page has been intentionally left blank)

  • Page 25: Product Interfaces

    ReliaGATE 10-05-34 User Manual Rev 1-0 9 Product interfaces RODUCT INTERFACES This section gives you an overview of the interfaces available on the ReliaGATE 10-05-34. Front panel interfaces The interfaces available on the front panel are the following: Figure 9.1 - Front panel interfaces layout...

  • Page 26: Rear Panel Interfaces

    9 Product interfaces ReliaGATE 10-05-34 User Manual Rev 1-0 Rear panel interfaces The interfaces available on the rear panel are the following: Figure 9.2 - Rear panel interfaces layout Description Ref# Connector / Mating connector information Cellular antenna connector Connector:...

  • Page 27: Led Indicators

    ReliaGATE 10-05-34 User Manual Rev 1-0 9 Product interfaces LED indicators The available LED indicators are the following: Figure 9.3 - LED indicators layout Ref# Color POWER: Blue - LED ON: ReliaGATE powered by the external source - LED OFF: ReliaGATE not powered by the external source...

  • Page 28: Service Panel Interfaces

    9 Product interfaces ReliaGATE 10-05-34 User Manual Rev 1-0 Service panel interfaces The interfaces available behind the service panel are the following: Figure 9.4 - Service panel interfaces layout Ref# Description Reset pushbutton Programmable pushbutton Console port Micro SD card slot Micro SIM card slot Table 9.4 - Service panel interfaces description...

  • Page 29: Interfaces In Detail

    CPU in low power consumption mode (sleep mode). The maximum power consumption at the lowest power state is ≤ 0.4 W. To wake the ReliaGATE 10-05-34 up from the low power consumption mode, use the Console port. / 62...

  • Page 30: How To Perform A Power Reset Of The Reliagate

    10 Interfaces in detail ReliaGATE 10-05-34 User Manual Rev 1-0 10.1.6 How to perform a power reset of the ReliaGATE 10-05-34 To trigger a hardware reset of the ReliaGATE 10-05-34, push the reset pushbutton available behind the Service Panel. Ref# Description...

  • Page 31: Wi-Fi And Bluetooth

    ReliaGATE 10-05-34 User Manual Rev 1-0 10 Interfaces in detail 10.2 Wi-Fi and Bluetooth The ReliaGATE 10-05-34 includes a WLAN + Bluetooth (BT) module and an external antenna connection to fully implement 802.11b,g,n WiFi and Bluetooth 4.0 functions. 10.2.1 Wi-Fi specifications...

  • Page 32: Cellular

    10 Interfaces in detail ReliaGATE 10-05-34 User Manual Rev 1-0 10.3 Cellular The ReliaGATE 10-05-34 integrates a cellular modem having the following characteristics: Specification Description UMTS/HSPA 800/850/900/1900/2100 MHz (Bands VI, V, VIII, II, I) 3GPP Release 7 5.76 Mb/s uplink, 21.1 Mb/s downlink or 5.76 Mb/s uplink, 7.2 Mb/s downlink...

  • Page 33: Ethernet Port

    ReliaGATE 10-05-34 User Manual Rev 1-0 10 Interfaces in detail 10.5 Ethernet port On the rear panel, the ReliaGATE 10-05-34 provides one 10/100 Mbps Ethernet port for wired network connectivity: ETH0. 10.5.1 Connector pinout Pin# Name Type Description Transmit Data +...

  • Page 34: Host Usb Port

    ReliaGATE 10-05-34 User Manual Rev 1-0 10.6 Host USB port The ReliaGATE 10-05-34 provides one USB 2.0 host port For power supply only”. This interface is available on the rear panel, and is noise and surge protected. 10.6.1 Connector pinout...

  • Page 35: Com Ports 0 And 1

    ReliaGATE 10-05-34 User Manual Rev 1-0 10 Interfaces in detail 10.7 COM ports 0 and 1 The ReliaGATE 10-05-34 provides 2 COM ports on the 8-position connector located on the front panel (pins 3 to 8): Port Type Protection Max baud rate...

  • Page 36: Com Ports Pinout

    10 Interfaces in detail ReliaGATE 10-05-34 User Manual Rev 1-0 10.7.2 COM ports pinout The 2 COM ports are available on the 8-position connector located on the front panel, pins 3 to 8. Pin# Name Type Description COM 0: RS-485+ (A)

  • Page 37: The Microsd Card Receptacle

    10 Interfaces in detail The MicroSD card receptacle 10.8 The ReliaGATE 10-05-34 includes a push-push type Micro SD card receptacle behind the Service Panel. Insert the Micro SD card as in the picture below, with the contacts facing down. ·-----...

  • Page 38: Console Port

    ReliaGATE 10-05-34 User Manual Rev 1-0 10.9 Console port The ReliaGATE 10-05-34 provides a Console port behind the Service Panel. It is an RS-232 serial port. You can use it to access the Operating System. 10.9.1 Connector and mating connector specifications Connector Shrouded header, 3-pin, 1.25 mm pitch...

  • Page 39: Rtc (Real Time Clock)

    ReliaGATE 10-05-34 User Manual Rev 1-0 10 Interfaces in detail 10.10 RTC (Real Time Clock) Your ReliaGATE 10-05-34 includes the following two RTC (Real Time Clocks) devices: RTC device Description /dev/rtc0 It comes from the CPU SoC Reserved /dev/rtc1 It does not come from the CPU SoC...

  • Page 40: 10.11 Watchdog

    10 Interfaces in detail ReliaGATE 10-05-34 User Manual Rev 1-0 10.11 Watchdog Your ReliaGATE 10-05-34 includes a watchdog / supervisor IC, external to the CPU. To manage the watchdog see the section "Watchdog" on page 10.11.1 How to enable / disable the watchdog To enable / disable the watchdog use the DIP switch selector located on the front panel, sliding lever 5.

  • Page 41: The Software

    11 The Software OFTWARE 11.1 The Linux OS distribution Eurotech can provide a Linux operating systems based on Yocto framework (www.yoctoproject.org) as well as an SDK for application development. All the documentation for the developer is available from: www.yoctoproject.org/documentation. 11.2...
  • Page 42 (This page has been intentionally left blank)

  • Page 43: How To Access The Interfaces Under Linux

    ReliaGATE 10-05-34 User Manual Rev 1-0 12 How to access the interfaces under Linux OW TO ACCESS THE INTERFACES UNDER INUX 12.1 Ethernet port On the rear panel, the ReliaGATE 10-05-x4 exposes one 10/100 Mbps Ethernet port for wired network...

  • Page 44: Led Indicators

    12 How to access the interfaces under Linux ReliaGATE 10-05-34 User Manual Rev 1-0 12.5 LED indicators The available LED indicators are the following: Ref# Color POWER: Blue - LED ON: ReliaGATE powered by the external source - LED OFF: ReliaGATE not powered by the external source...

  • Page 45: Flash Memory

    ReliaGATE 10-05-34 User Manual Rev 1-0 12 How to access the interfaces under Linux 12.6 Flash Memory The ReliaGATE 10-05-x4 exposes the flash memory as follows: Internal flash (eMMC) memory: /dev/mmcblk0 /dev/mmcblk1 MicroSD card memory: / 62...

  • Page 46: Rtc

    12 How to access the interfaces under Linux ReliaGATE 10-05-34 User Manual Rev 1-0 12.7 The ReliaGATE 10-05-x4 exposes the user-available RTC as follows: RTC: /dev/rtc1 The "/dev/rtc1" offers: three timestamp registers one user-available byte. 12.7.1 How to manage the timestamp registers...

  • Page 47: How To Manage The Sleep Mode (Example)

    The commands in the example below perform the following actions: 1. Sets a specific date and time in the ReliaGATE 10-05-34: 4 September 2015 at 10:00 AM 2. Tells the ReliaGATE 10-05-34 to automatically wake up 20 seconds after the specific date and time 3.

  • Page 48: Watchdog

    12 How to access the interfaces under Linux ReliaGATE 10-05-34 User Manual Rev 1-0 12.8 Watchdog The ReliaGATE 10-05-34 exposes the watchdog as follows: Watchdog: /dev/watchdog1 12.8.1 How to manage the watchdog using the C programming language To manage the watchdog using the C programming language use the following commands: Int interval;...

  • Page 49: How To Obtain Further Information

    12.9 The Programmable pushbutton The ReliaGATE 10-05-34 is provided with a programmable pushbutton. The programmable pushbutton is sensed by a Linux daemon which executes a shell script every time the button is either pushed or released. To export the pushbutton, use the following commands: echo 86 >...
  • Page 50 (This page has been intentionally left blank)

  • Page 51: How To Log In The Administration Console

    To login the ReliaGATE 10-05-34 Administration console, use one of the following methods: Direct login via Console Port Remote login via Secure Shell (SSH) The default username is root and the default password is eurotech. Both the username and password are case sensitive. 13.1...

  • Page 52: How To Change Your Security Settings

    13.3 How to change your security settings For security reasons, Eurotech recommends you to change the Linux password after your initial setup. To change your Linux password, complete the followint steps: 1. At the login prompt, enter username and password:...

  • Page 53: Eurotech M2M / Iot Solutions

    UROTECH SOLUTIONS Eurotech solutions are a combination of hardware, firmware, operating systems, and programming frameworks that dramatically accelerate the time to market of M2M / IoT projects and enable customers to layer their added-value components on a reliable read-to-use infrastructure.

  • Page 54: Everyware Cloud (Ec)

    ReliaGATE 10-05-34 User Manual Rev 1-0 14.3 Everyware Cloud (EC) Eurotech’s Everyware™ Cloud (EC) provides an open and flexible software platform that easily connects embedded devices to IT systems or to existing applications, immediately solving infrastructure problems among distributed devices and systems.

  • Page 55: Mechanical Specifications

    15.1 ReliaGATE 10-05-34 mechanical dimensions The ReliaGATE 10-05-34 electronics are housed in an ABS (Color: blue) and Aluminum enclosure, having the following dimensions: 112 (L) x 68 (W) x 37 (H); mm (antenna SMA connectors not included). The following figure shows the dimensions of the ReliaGATE 10-05-34. All dimensions are in millimeters.

  • Page 56: Mounting Bracket Mechanical Dimensions

    15 Mechanical specifications ReliaGATE 10-05-34 User Manual Rev 1-0 15.2 Mounting bracket mechanical dimensions The following figure shows the dimensions of the Mounting bracket. All dimensions are in millimeters. Figure 15.2 - Mounting bracket mechanical dimensions / 62...

  • Page 57: How To Install The Product

    How to install the ReliaGATE 10-05-34 using the Mounting Bracket To install the ReliaGATE 10-05-34 in place using the Mounting Bracket, add all the necessary screws and locking parts to safely secure the ReliaGATE 10-05-34 in place according to your installation requirements (for example use M5 screws).

  • Page 58: Optional: How To Install The Reliagate 10-05-34 Using The Din Rail Mounting Kit

    Optional: How to install the ReliaGATE 10-05-34 using the DIN Rail Mounting Kit Use the optional DIN Rail Mounting Kit to install the ReliaGATE 10-05-34 on a DIN rail. Before installing the ReliaGATE 10-05-34 on a DIN rail, replace the Mounting Bracket with the optional DIN Rail Mounting Kit.
  • Page 59 ReliaGATE 10-05-34 User Manual Rev 1-0 16 How to install the product NOTE ABOUT THE 3 SCREWS: The 3 screws that hold the Mounting Bracket in place have the following features: Cross socket flat head countersunk Fully threaded Stainless steel...

  • Page 60: How To Install The Reliagate 10-05-34 On A Din Rail

    1. Hook the lower mobile latches of the mechanical adapter on the lower edge of the DIN rail 2. Push the ReliaGATE 10-05-34 upwards against the DIN rail and lock upper latches of the mechanical adapter on the upper edge of the DIN rail.

  • Page 61: How To Maintain The Product

    ReliaGATE 10-05-34 User Manual Rev 1-0 17 How to maintain the product OW TO MAINTAIN THE PRODUCT Periodically inspect the installation of the product to verify its integrity and to ensure proper operation. Before starting the maintenance of the product, carefully read and understand the instructions contained in the sections "Important Information"...
  • Page 62 (This page has been intentionally left blank)

  • Page 63: Notes

    ReliaGATE 10.05-34 User Manual Rev 1-0 Notes NOTES EUROTECH...
  • Page 64 Email: support.fr@eurotech.com Web: www.eurotech.com For your Eurotech local contact refer to: www.eurotech.com/contacts For the Eurotech Global Support Center refer to: eurotech.desk.com For the Eurotech Download Area refer to: eurotech.com/download All trademarks and trade names are the property of their respective owners...
