Summary of Contents for Eurotech ReliaGATE 10-20
- Page 1 USER MANUAL USER MANUAL ReliaGATE 10-20 ReliaGATE 10-20 Multi-Service Gateway and Edge Controller Multi-Service Gateway and Edge Controller Rev 1.0 – May 2015 – 110129-00012 Rev A – September 2015 – 110129-0001A...
-
Page 2: Trademarks
All trademarks or registered trademarks, logos, designs and products appearing in this document are property of their respective owners Revision History Description Date Revision Nov 2014 Initial Release May 2015 Update Updated product images Added warnings in French September 2015 Updated SW features list Minor grammar and formatting updates © 2015 Eurotech... -
Page 3: Table Of Contents
ReliaGATE 10-20 User Manual Table of Contents Table of Contents Trademarks .................................. 2 Revision History ................................2 Table of Contents ................................3 Safety and Regulatory ..............................5 Alerts that can be found throughout this manual ......................6 Alertes peuvant être trouvées dans ce manuel ......................6 Safety Notices and Warnings ............................ - Page 4 User Interface ................................28 LED Indicators ..............................28 Environmental ................................29 Mechanical Specifications ............................31 Mounting the ReliaGATE 10-20 ..........................32 Mounting a ReliaCELL 10-20 Modem ........................32 Administrative Console .............................. 33 Logging In .................................. 33 Booting up and using the Serial Console ........................33 Remote Login ................................
-
Page 5: Safety And Regulatory
Eurotech reserves the right to revise this document or to make changes to its content at any time without any obligation to notify any person of such revision or changes. -
Page 6: Alerts That Can Be Found Throughout This Manual
Safety and Regulatory ReliaGATE 10-20 User Manual Alerts that can be found throughout this manual Alertes peuvant être trouvées dans ce manuel Meaning Symbol DANGER! Information highlighting potential electrical shock hazards: Personal injury or death could occur. Damage to the system, connected peripheral devices, or software could occur. -
Page 7: Safety Notices And Warnings
Eurotech assumes no liability for the customer’s failure to comply with these requirements. The safety precautions listed below represent warnings of certain dangers of which Eurotech is aware. You, as the user of the device, should follow these warnings and all other safety precautions necessary for the safe operation of the device in your operating environment. -
Page 8: Connection To Power Supply Or Other Devices
Pour éviter les blessures, toujours débrancher les circuits d'alimentation et de décharge avant de les toucher. Only start the device with a power supply that meets the requirements stated on the voltage label. In case of uncertainties about the required power supply, please contact the Eurotech Technical Support Team or the electricity authority ... -
Page 9: Installation
When installing the device within a cabinet, rack or other enclosed space, be sure to leave sufficient space to allow adequate air circulation ATTENTION! Assurer une ventilation adéquate pour éviter la surchauffe, Eurotech suggère les étapes suivantes: Lorsque vous installez l'appareil dans une armoire, rack ou un autre espace clos, assurez-... -
Page 10: Cleaning
The CE mark on the product indicates that it conforms with the essential requirements of the applicable EC directives. Eurotech is not responsible for the use of its products together with equipment (e.g. power supplies, personal computers, etc...) that are not CE marked and compliant with technical requirements specified in this manual. -
Page 11: Weee
ReliaGATE 10-20 User Manual Safety and Regulatory WEEE The information below complies with the regulations set out in the 2002/96/EC directive, subsequently superseded by 2003/108/EC. It refers electrical and electronic equipment and the waste management of such products. When disposing of a device, including all of its components, subassemblies and materials that are an integral part of the product, you should consider the WEEE directive. -
Page 12: Fcc Part 15 Class B Statement
When transporting any module or system, for any reason, it should be packed using anti-static material and placed in a sturdy box with enough packing material to adequately cushion it. Warning: Any product returned to Eurotech that is damaged due to inappropriate packaging will not be covered by the warranty! ATTENTION! Tout produit retourné... -
Page 13: Conventions
ReliaGATE 10-20 User Manual Safety and Regulatory Conventions The following table describes the conventions for signal names used in this document. Explanation Convention Digital ground plane Active low signal Positive signal in differential pair Negative signal in differential pair The following table describes the abbreviations for direction and electrical characteristics of a signal used in this document. -

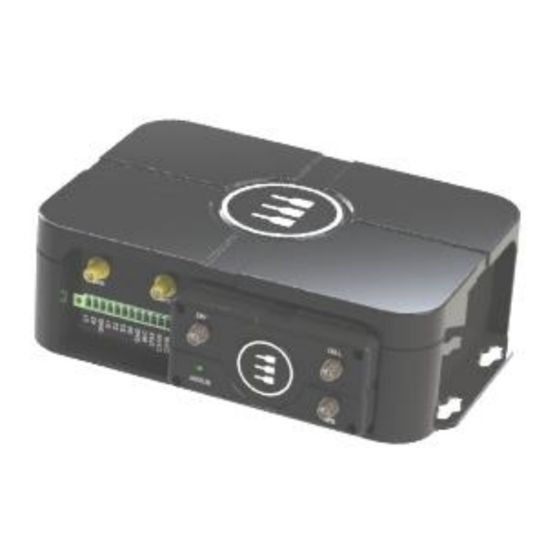

Page 15: Product Overview
IoT/M2M and connected applications. It comes with an optimized Yocto-based Linux operating system specifically targeted for this device. The ReliaGATE 10-20 comes with Java and OSGi-based middleware for IoT gateways, Eurotech’s Everyware™ Software Framework (ESF). ESF abstracts and isolates the application developer from the complexity of the hardware subsystems and ensures application portability across architectures. -
Page 16: Block Diagram
Product Overview ReliaGATE 10-20 User Manual Block Diagram The following diagram illustrates the standard product delivery for the ReliaGATE 10-20. Additional factory options are shown in green. Inquire with your local sales representative for any non-standard features. ReliaGATE 10-20 LVDS... -
Page 17: Features
4 W power consumption, typical 17W, maximum Other Battery-backed real-time clock (RTC) Accelerometer Industrial Temperature Rated (Operational): -40ºC to +80ºC Product Options If your application requires any additional features or options, contact your local Eurotech sales representative for availability. 110129-00013A... -
Page 18: Related Documents
Product Overview ReliaGATE 10-20 User Manual Related Documents This manual describes the ReliaGATE 10-20 at the system level and is intended for installers, software developers, and system integrators. The following documents are also important resources for the ReliaGATE 10-20. Available at Document http://www.eurotech.com/en/products/ReliaGATE 10-20... -
Page 19: Product Specifications
ReliaGATE 10-20 User Manual Product Specifications Product Specifications This section gives an overview of the hardware features of the ReliaGATE 10-20 including network interfaces, communications, and power supply. The following images illustrate the location of the interface connectors. Figure 2. Rear Panel Figure 3. -
Page 20: Front Panel Interfaces
Power Input Ignition Sense Ground The ReliaGATE 10-20 comes with a flying lead cable that meets all product specifications to properly mate to the power connector, both mechanically and electrically (610129-00013). Note: 1. Any ReliaGATE 10-20 that is Rev A or lower, will not have the same power connector pinout. -
Page 21: Ethernet
USB 2.0 host interface. The ReliaGATE 10-20 provides two USB 2.0 host ports on the front panel. These ports come with two 4-40 threaded holes spaced 0.75 inches (19mm) above and below for use with a screw lock style plug. -
Page 22: Serial 1
Product Specifications ReliaGATE 10-20 User Manual Serial 1 The ReliaGATE 10-20 provides access to two serial ports. The transceivers for the port can be disabled through software. Connector DB-9 M header DB-9 F cable Mating connector The Serial 1 connector provides access to the commonly defined console port. Connect a standard EIA-232 cable to access the 3-wire port. -
Page 23: Rear Panel Interfaces
Rear Panel Interfaces Wi-Fi (IEEE 802.11) and Bluetooth The ReliaGATE 10-20 includes a Wi-Fi and Bluetooth module (AEH-AR9462-LC) which requires an external antenna. The SMA connector for the Wi-Fi/Bluetooth external antenna is located on the rear panel. Connect an external antenna to the "WIFI" SMA connector for the frequency ranges your application will use 2.4GHz and/or 5GHz. -
Page 24: Discrete I/O
Product Specifications ReliaGATE 10-20 User Manual Description Parameter Navigation Update rate: Up to 5 Hz Horizontal position accuracy (CEP, 50%, 24 hours static, -130dBm, SEP: <3.5m) GPS: 2.5 m SBAS 2.0 m Configurable Timepulse f = 0.25 … 1000 Hz ... -
Page 25: Reliacell 10-20 Docking Bay: Usb/Cellular, Sd, Sim, Debug
OTG, and debug connectors. ReliaCELL 10-20 Port The ReliaGATE 10-20 includes a docking bay for the ReliaCELL 10-20, a family of cellular modem modules that are certified for networks, technologies, and carriers around the world. Secure the ReliaCELL 10-20 to the bay on ReliaGATE 10-20 as described in the Mechanical section of this manual. -
Page 26: Other Features
Connector If your model of the ReliaGATE 10-20 includes an on-board cellular modem, you may need to insert a SIM card from your cellular service provider into this slot. Insert the SIM until it clicks into the socket. Press on the SIM a second time to eject it. -
Page 27: Real Time Clock (Rtc)
Real Time Clock (RTC) The ReliaGATE 10-20 uses the DS1338U-3+ real-time clock chip to maintain the system date and time when the system is powered down. The operating system typically reads the RTC on boot and wakeup, and sets the RTC when the system time or date is changed. -
Page 28: User Interface
BT/L3 green Notes: 11. Later versions of ReliaGATE 10-20 metal work will have different silkscreen on the LED Group 1 and Group 2 Ethernet 1 LEDs The two LEDs on the Ethernet 1 socket illuminate as follows. Illumination indicates connection speed; blinking indicates activity. -
Page 29: Environmental
ReliaGATE 10-20 User Manual Product Specifications Environmental The ReliaGATE 10-20 is designed to meet the following environmental specifications. Specification Parameter Operating temperature Industrial -40°C to +80°C (local ambient) Up to 95% @ +45°C Relative humidity, non-condensing FCC, IC, 60950-1 Compliance... - Page 30 Product Specifications ReliaGATE 10-20 User Manual THIS PAGE INTENTIONALLY BLANK 110129-00013A...
-
Page 31: Mechanical Specifications
The following mechanical drawing specifies the dimensions of the ReliaGATE 10-20 enclosure. Dimensions are in inches [millimeters]. If ever the ReliaGATE 10-20 malfunctions or needs parts to be replaced, the unit must be returned to the factory for repair. There are no operator access areas provided on this unit. -
Page 32: Mounting The Reliagate 10-20
Mounting the ReliaGATE 10-20 The ReliaGATE 10-20 base plate is designed to accept #10 or M5 hardware. Bolts should be pre-screwed into the mounting surface; the ReliaGATE attached via the keyhole slots and then the bolts tightened. A hex head or socket cap type of bolt/screw is recommended. -
Page 33: Administrative Console
5. At the login prompt, enter the username and password. Remote Login If you are logging into the ReliaGATE 10-20 over a network connection, you will need to use SSH (Secure SHell). For systems running the Linux operating system, the ssh command is available as an SSH client. -
Page 34: Security Settings
At this point you can alternatively log into the unit using: ssh root@rg-10-20.local Security Settings Eurotech recommends that you change the Linux password after your initial setup. To change your Linux password, complete the following steps: 1. Log in using the root account with the password eurotech. -
Page 35: Linux Peripheral Access
RS232 / RS485. Accelerometer The ReliaGATE 10-20 provides an accelerometer that can be used to determine the orientation of the unit. The device is connected to the I2C bus and is mapped into the Linux sysfs space. Accelerometer data can be read via:... -
Page 36: Flash Memory
Alternatively, the data is provided through an Input-API event interface (typically /dev/input/event2). Flash Memory The ReliaGATE 10-20 comes with a 4 to 64GB of internal flash (eMMC) memory. The debug switch determines whether the system will boot from eMMC or from an SD card. -
Page 37: Can Bus
CAN Bus The ReliaGATE 10-20 supports a high speed CAN (Controller Area Network) Bus that is compliant with the CAN 2.0b specification. Linux support for the CAN Bus has been added through the SocketCAN kernel extension. For more information on SocketCAN please refer to the Linux kernel documentation: https://www.kernel.org/doc/Documentation/networking/can.txt... -
Page 38: Gps
Linux Peripheral Access ReliaGATE 10-20 User Manual lrwxrwxrwx 1 root root 14 Mar 10 09:46 usb- Telit_wireless_solutions_Telit_Wireless_Module_357164040887500-if0a -> ../../ttyACM10 lrwxrwxrwx 1 root root 14 Mar 10 09:46 usb- Telit_wireless_solutions_Telit_Wireless_Module_357164040887500-if0c -> ../../ttyACM11 lrwxrwxrwx 1 root root 13 Mar 10 09:44 usb-u-blox_AG_-_www.u-blox.com_u- blox_6_-_GPS_Receiver-if00 ->... -
Page 39: Watchdog
ReliaGATE 10-20 User Manual Linux Peripheral Access Watchdog The ReliaGATE 10-20 supports a hardware watchdog. This is a standard watchdog device and is mapped to /dev/watchdog. For more information on Linux support for watchdog please refer to the Linux kernel documentation: https://www.kernel.org/doc/Documentation/watchdog/watchdog-api.txt... - Page 40 Linux Peripheral Access ReliaGATE 10-20 User Manual THIS PAGE INTENTIONALLY BLANK 110129-00013A...
-
Page 41: Linux Application Development
Linux Application Development Developing Applications The version of Linux running on the ReliaGATE 10-20 is a Yocto project based Linux distribution. Learning how to use Yocto BSPs and build images with them can be a time-consuming and complex process. It is possible and often desirable therefore to build projects outside of the Yocto build system. To do this you need to install a pre-built toolchain. - Page 42 Linux Application Development ReliaGATE 10-20 User Manual THIS PAGE INTENTIONALLY BLANK 110129-00013A...
-
Page 43: Internet Of Things (Iot) Application Development
Java OSGi software framework for M2M multi-service gateways, smart devices and IoT applications. It allows Eurotech and its customers to deliver not only the latest generation of Embedded Computer hardware platforms, but also the ability to deliver all the fundamental components needed to quickly develop complex applications as part of the device software as well. -
Page 44: Everyware Cloud (Ec)
Drive decisions based on real-time data streams Bridge the gap between distributed devices and event-driven IT applications More information on Everyware Cloud is available on the Eurotech website: http://www.eurotech.com/en/products/software+services/everyware+cloud+m2m+platform From the web site, you can also start a free trail of Everyware Cloud to start managing your IoT Gateways. - Page 45 33020 Amaro (UD) – Italy Fax: +1 301.490.4582 E-mail: support.it@eurotech.com E-mail: sales.us@eurotech.com E-mail: tsupport@advanet.jp Tel: +39 0433.485.411 Web: www.eurotech.com E-mail: support.us@eurotech.com Web: www.advanet.jp Fax: +39 0433.485.499 Web: www.eurotech-inc.com E-mail: support.it@eurotech.com UNITED KINGDOM Web: www.eurotech.com EUROTECH Tel: +44 (0) 1223.403410 Fax: +44 (0) 1223.410457...
