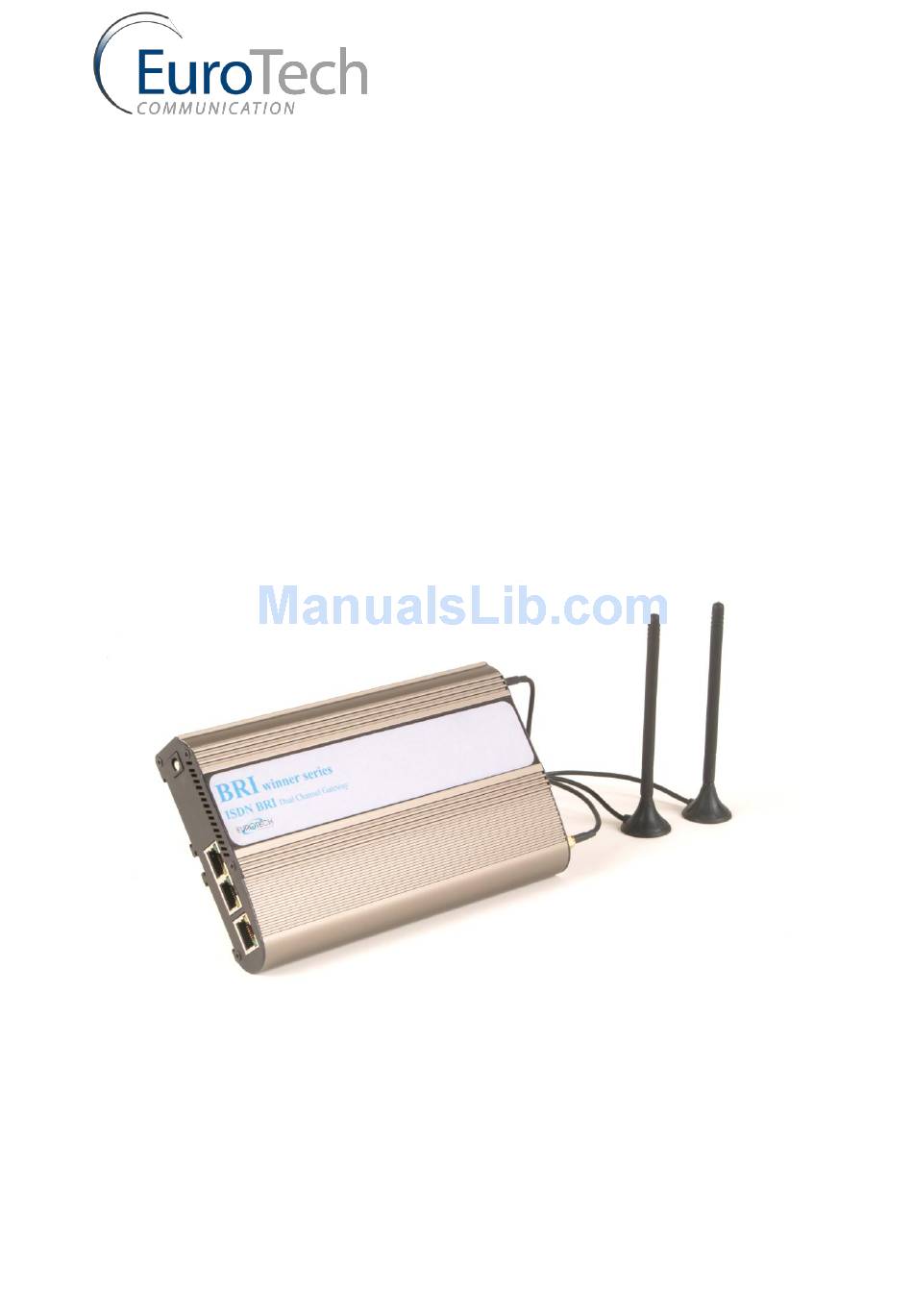

- Page 1 BRI ISDN GATEWAY User Guide...
-
Page 2: Table Of Contents
CONTENTS CONTENTS INTRODUCTION ........................3 1.1. The BRI ISDN Gateway Solution Overview ..............3 1.2. About this Manual ..................... 3 1.3. Terminology ....................... 4 INSTALLATION AND SETUP ....................5 2.1. Installation Overview (Getting Started)..............5 2.2. Check the Package Items ................... 5 2.3. -
Page 3: Introduction
Introduction 1. INTRODUCTION Eurotech Communication Ltd is glad you have chosen to use the BRI ISDN Gateway. We are confident due to the quality of our product, simplicity of use and excellent customer support, that the BRI ISDN Gateway will meet your communication needs and will... -
Page 4: Terminology
Gateway – A n ISDN unit with 2 cellular ports. SIM – SIM card or chip Port (ch) – A port is single channel that can send call(s). Cellular Card (Slave card) – A card with cellular ports (modules). BRI ISDN Gateway User Guide www.eurotech-communication.com... -
Page 5: Installation And Setup
2.3. HARDWARE INSTALLATION This section describes the hardware installation. 2.3.1. HARDWARE OVERVIEW The BRI ISDN Gateway consists of three main parts: Chassis – Housing the gateway PCB. Master Card – Located at the left side of the unit. contains the ISDN,COM, Synchronization... -
Page 6: Installing Sims
SIM and one antenna. 2.3.2. INSTALLING SIMS The following sections describe how to install SIMs in the BRI ISDN Gateway. 2.3.2.1. INSTALLING SIMS On the back of the unit slide back the cover, there are 4 SIM chambers for each port to install SIM cards. -
Page 7: Software Installation
CD for MS-Windows Application. To install the BRI ISDN Management Software on a MS-Windows PC 1) Insert the BRI ISDN Management Installation CD into the CD drive of the PC. 2) Navigate to the installation CD drive. 3) Double-click setup.exe. - Page 8 Installation and Setup 7) Click Install. The BRI ISDN Management application begins installation. You will be prompted when the installation is complete. 8) Click Finish and remove the CD. Note: If the BRI ISDN icon appears on the Desktop, the application was successfully installed.
-
Page 9: Basic System Setup (Basic Operations)
To define the PC to BRI Gateway connection: 1) Launch the BRI Management by clicking on your PC desktop, or by selecting: Start > Programs > Eurotech-Communication > BRI Management v5.1. The BRI Management application window will open. BRI ISDN Gateway User Guide www.eurotech-communication.com... - Page 10 After installing the Manager and defining the port connection, define port and SIM settings as described in chapter 5. After establishing communication between the auxiliary computer and the Winner Series BRI Gateway, define groups of telephones in your office, as described in the following chapter. BRI ISDN Gateway User Guide www.eurotech-communication.com...
-
Page 11: Port And Sim Settings
DEFINE DIAL SETTINGS FOR EACH PORT To define dial settings: 1) Click The Port Setting window opens. 2) To define port dial settings, choose a port and proceed as described on the following pages. BRI ISDN Gateway User Guide www.eurotech-communication.com... -
Page 12: Define Type Of Dialed Numbers Dispatch Mode
Setup the minimum amount of time between outgoing calls in the Intercall Timer box. Set this parameter according to limitations of the GSM network. In many situations, two seconds may be an appropriate value for this parameter. BRI ISDN Gateway User Guide www.eurotech-communication.com... -
Page 13: Define Registration Timer
4) In the Time Table tab, define hours, and days, that the SIM is active. Days can be divided in up to four intervals. a. Select an interval. b. Enter the hours of the interval. BRI ISDN Gateway User Guide www.eurotech-communication.com... - Page 14 Port and SIM Settings c. Select days that this interval will be activated. Select days of deactivation in the row. BRI ISDN Gateway User Guide www.eurotech-communication.com...
-
Page 15: Define The Sim Operator
DEFINE THE SIM OPERATOR To assign the SIM to work with a specific GSM network: In the Operator ID, enter the GSM network operator ID, between 1–999999. Enter 0 to work with the SIM operator. BRI ISDN Gateway User Guide www.eurotech-communication.com... -
Page 16: Isdn And Time Settings
ISDN card. 2) Enter specifications as described on the following pages. Ensure that settings are in conformity with settings in the switching box. 4) Continue settings in the ISDN configuration window as follows: BRI ISDN Gateway User Guide www.eurotech-communication.com... - Page 17 This entry can accept number between 1 and 9 digits. 6) If you have sub-addresses of Winner Series BRI Gateway, enter the sub address of each Winner Series BRI Gateway unit in the second box, 1 digit. BRI ISDN Gateway User Guide www.eurotech-communication.com...
-
Page 18: Time And Date Setting
ISDN version: this box displays the default ISDN version – EuroISDN. 5.2. TIME AND DATE SETTING At the bottom part of the ISDN window set the date and time. Then click Set System Time to send the settings to the Winner Series BRI Gateway. BRI ISDN Gateway User Guide www.eurotech-communication.com... -
Page 19: B-Channel - Port Association
Winner Dual Cell Channels Mapped into 2 BRI Gateway operating GSM SIM Cards This section explains the assigning of B-channels to in-house phones and the allocation of calls to Winner Series BRI Gateway ports. BRI ISDN Gateway User Guide www.eurotech-communication.com... -
Page 20: B-Channel To In-House Phone Number Association
This window is divided into four frames, as shown below. 6.1. B-CHANNEL TO IN-HOUSE PHONE NUMBER ASSOCIATION Assign office “in-house” phone number extensions to B-Channels In-house phone numbers are assigned in the lower left frame. BRI ISDN Gateway User Guide www.eurotech-communication.com... -
Page 21: In-House Phone Number And Gsm Association
2 of this table, specifying the SIM and the port desired, and the priority. In this example a call to the GSM number 0525555555 will go out using SIM 1 and a call to 0535555555 will go out using SIM 2. BRI ISDN Gateway User Guide www.eurotech-communication.com... -
Page 22: Port Allocation Mode Settings
Port/prefix settings are made in the upper left frame of this window and associates a port to a B- channel. Check a port to activate it. If you want ports permanently linked to B channels, and you want to change the order of connections, proceed as follows: BRI ISDN Gateway User Guide www.eurotech-communication.com... - Page 23 2. Click the remaining cell in the B-channel column and drag it to the row of the desired port. 3. Drag the cell in the Stock column to the desired position in the B-channel column 4. . After completing these steps, the Dual Cell is ready for operation. Calls can be monitored. BRI ISDN Gateway User Guide www.eurotech-communication.com...
-
Page 24: Monitoring Calls And Reports
LED indicates there is no connection. yellow LED indicates there is a connection, but no data transfer. green LED indicates transfer of data. 2) Left click on the play button for the port options: BRI ISDN Gateway User Guide www.eurotech-communication.com... - Page 25 LAC - Location Area Code. CI - Cell ID MCC - Mobile Country Code BSIC - Basic Station Identity Code BCCH - Broadcast Control Channel RSSI- Receiver Signal Strength BRI ISDN Gateway User Guide www.eurotech-communication.com...
-
Page 26: Call Reports
Format, the Check every timer and the Export every. The program will check if there is the amount of records in the memory (specified in Export every) every Check every minutes. If there is, the program will export the list to the file specified and will clear the memory. BRI ISDN Gateway User Guide www.eurotech-communication.com... -
Page 27: Entering Dela
Limited DELA Calls – Change the table to Enable, choose the time (in hours) you want each entry to remain in the table. A call from an extension to a GSM number will be entered the table. BRI ISDN Gateway User Guide www.eurotech-communication.com... - Page 28 From now on, until the timer will expire, whenever the specified GSM number will call, the call will be directed to the extension specified in the table. You can Export/Import the data to a file. BRI ISDN Gateway User Guide www.eurotech-communication.com...
-
Page 29: Appendix A: Tcp/Ip Setting
CD at the directory LAN Tools. 3) Launch the software Network Enabler and click the SEARCH icon (upper left side) to find the BRI Gateway IP. 4) The BRI Gateway IP should appear in the next screen: BRI ISDN Gateway User Guide www.eurotech-communication.com... - Page 30 8) Click Connect button in the BRI Management. 9) Select TCP/IP in the Connection Mode. 10) Enter the IP Address and the Port Number (the default is port 4001). 11) Click OK to connect to the BRI Gateway via the TCP/IP. BRI ISDN Gateway User Guide www.eurotech-communication.com...
