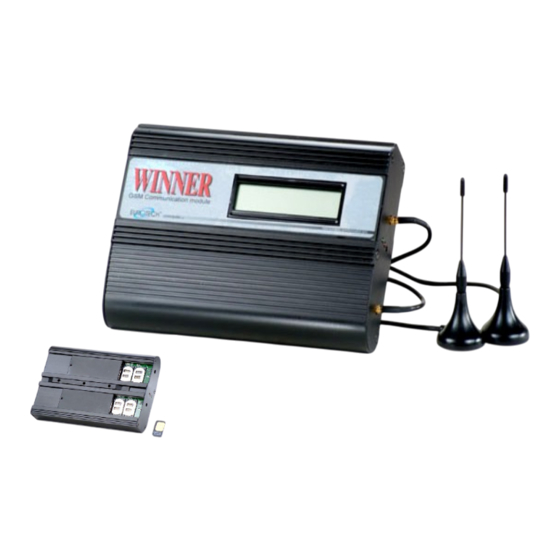

- Page 1 GS M s in gle / du al c h an n e l gat e way s US ER S MANUAL WINNER, GSM 850/1900 MHz, 900 /1800 MHz, 800/1900 MHz SIM cards and Wavecom Module embedded Single/ double Fixed Cellular Gateway Units...
- Page 2 EUROTECH is a registered trademark. Warranty policy: The WINNER GSM gateway product you have purchased is under warranty for 1 year from the date of purchase by original purchaser. In case of defects in materials or workmanship Eurotech Communication Ltd. will replace free of charge. This warranty applies to hardware/ software and does not include SIM cards.
-
Page 3: Table Of Contents
TABLE OF CONTENTS OVERVIEW Packing List Safety guidelines General Information Interference with Medical and Personal Electronic Devices Antenna Considerations Installation Steps and Procedures STAGE 1: Identifying potential sources of interference STAGE 2: Assessing the subscriber site STAGE 3: Testing the location for signal strength STAGE 4: Installing the system STAGE 5: Programming of SIM cards STAGE 6: Testing prior to departing site... -
Page 4: Overview
GSM networks and cuts costs of airtime and interconnections. The WINNER GSM gateways are intended for middle to large enterprises but can be installed on regular phone lines in your home or home office. -
Page 5: Packing List
Warning: Potentially Explosive Atmospheres: Do not operate your WINNER near blasting caps, or in a blasting area, to avoid the possibility of triggering an explosion Do not operate a WINNER transmitter in a hazardous atmosphere: an explosion or... -
Page 6: Interference With Medical And Personal Electronic Devices
(for example a pacemaker or hearing aid) to determine if they are adequately shielded from external RF energy. Do not install a WINNER gateway unit in a health care facility, if regulations posted in the area restrict the use of cellular phones. Hospitals and health care facilities may be using equipment that is sensitive to external RF energy. - Page 7 Connect a landline ordinary telephone to the RJ-11 connector (pin 3 and 4 are used for Tip and Ring) In case of WINNER GSM single channel unit: place an outgoing call to test the system. If the LCD shows the number you have dialled; the device is in correct operation mode OK.
- Page 8 On the V-8002 / D1 or D2, each channel has it own RJ-11 To start programming the WINNER you need to pick up the handset of the landline phone and press the star key 3 times " * * * ".
- Page 9 To s cr oll b et ween t h e S IM s p r es s "# ", For choosing the SIM card whose prefixes you wish to delete press "*". For example: SIM number 3 LCD indicates "SIM#3 is empty", after 1 second the LCD will indicate "2.
- Page 10 7. InterDigit tmr: Allow you to control in which form the call will be transmited (By TIMER): Step 1: Pick up the handset of the landline phone and press " * * * ". LCD will indicate "Programming Mode". After 1 second LCD will indicate "1. SIM Prefixes", press "#" until LCD indicates "7.
-
Page 11: General Technical Information
General technical information Electrical Power supply: 12 VDC +/- 5% 1,2 A 720 mA average in GSM 900 at Tx power max 2W 920 mA average in GSM/GRPS 900 at Tx power max 2W 100 mA in idle mode Physical Absolute maximum dimension: 165 x 127 x 30 mm Weight: 600 g Casing: Complete shielding-stainless steel... - Page 12 -25°C to +65°C Mounting Wall Mounting In case you wish to mount on wall see instructions above in General Information. configuration the WINNER attached to the wall with one screw. Balanced signal Less than 5% 3 type A 40 Vrms crest factor 1.2...
- Page 13 Customer will take care of shipment including all necessary payments for insurance, delivery, custom, etc. as FOB requires. Reliability The WINNER Field Quality goal is and will be determined by reliability prediction and actual ALT results. Our target is: 0.5-1.0% per month, This goal is susceptible to changes.
