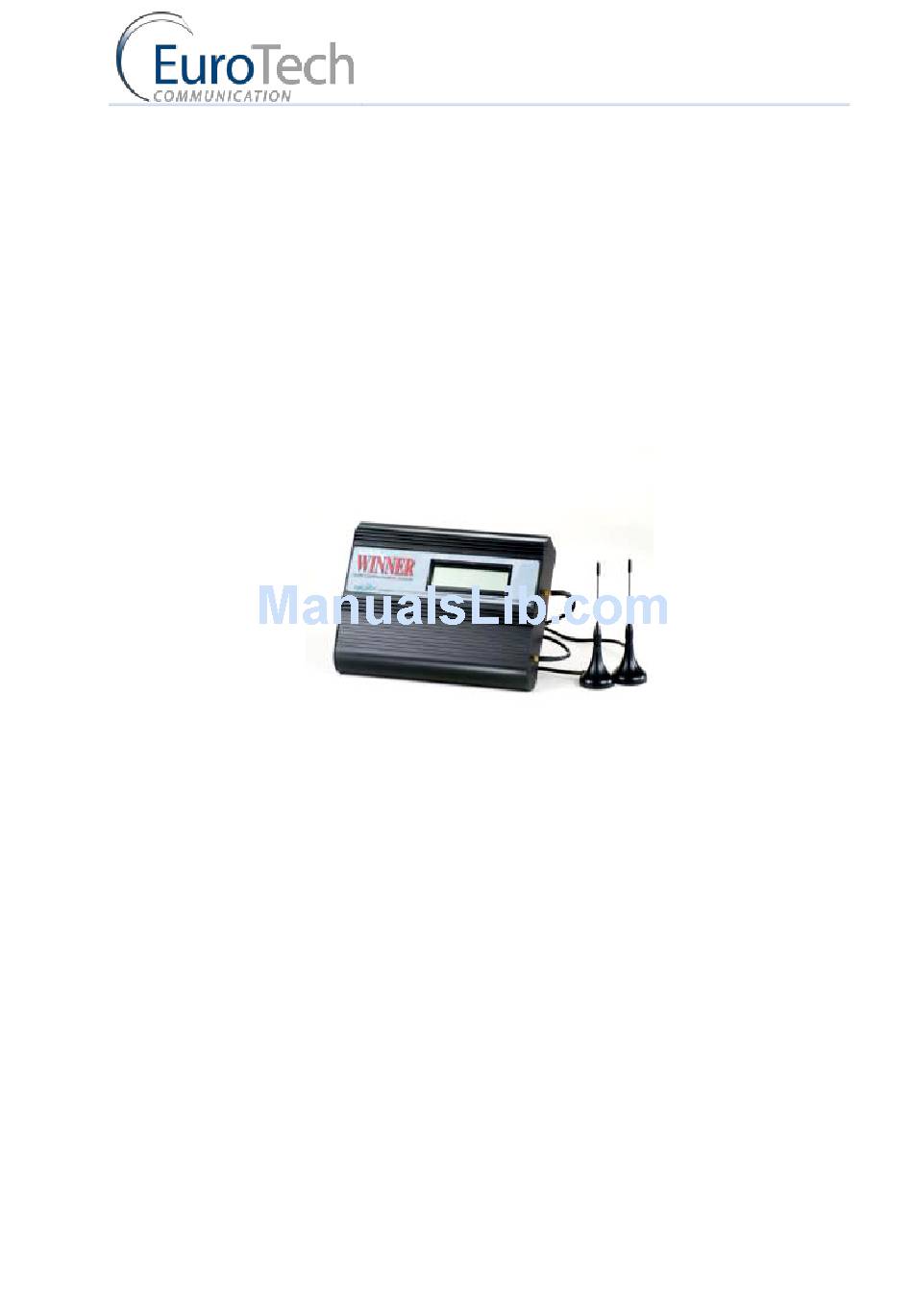

- Page 1 WINNER Dual Channel Fixed Cellular GSM Gateway User Manual Version 5.2...
-
Page 2: Table Of Contents
STAGE 3: Installing the System .................. 8 3.4. STAGE 4: PC Programming Management ............... 10 3.5. STAGE : Testing ..................... 18 GENERAL TECHNICAL INFORMATION ................. 19 4.1. Telephone Line Characteristics ................19 4.2. Enviromental Characteristics .................. 20 Winner Dual Channel Fixed Cellular GSM Gateway User Manual... -
Page 3: Overview
1. OVERVIEW This user’s manual will help you best install your WINNER GSM gateway unit, and provide you with the basic guidelines for handling any problems that might arise. In general, the WINNER GSM single/dual gateways provide a flexible and cost efficient connection between your telephone system and the GSM mobile networks. -
Page 4: Safety Guidelines
Warning: Potential Explosive Atmospheres: Do not operate your WINNER near blasting caps, or in a blasting area, to avoid the possibility of triggering an explosion. Do not operate a WINNER transmitter in a hazardous atmosphere: an explosion or fire may result. -
Page 5: Quick Start Guide
COM outlet on the PC. 3) The display will show "Init. COM port". 4) Start the "Winner v5.2" from the icon on your desktop. 5) Press the "Connect" icon at the top left-hand corner of the window. -
Page 6: General User Information
RF energy. Do not install a WINNER gateway unit in a health care facility, if regulations posted in the area restrict the use of cellular phones. Hospitals and health care facilities may be using equipment that is sensitive to external RF energy. -
Page 7: Installation Stages And Procedures
WINNER gateway units. When making or receiving a phone call, if you hear a “humming” sound or noise in the earpiece of the telephone connected to the WINNER, or if any other party hears the hum or noise, move the telephone away from the WINNER. If moving it farther away has no effect, try using a different telephone. -
Page 8: Stage 3: Installing The System
3.3. STAGE 3: INSTALLING THE SYSTEM ALWAYS POWER-DOWN The WINNER UNIT BEFORE INSERTING SIM CARDS! 1) Inspect the package, you should see: a unit gateway, an antenna, an adapter. Please note: the WINNER unit comes without the SIM card(s)! Antennas... - Page 9 SLAVE port (Port2) at the upper portion. Each port has it's own module and antenna socket. The two ports are basically independent but the Master port controls the RTC (Real Time Clock) and the LCD display. ALWAYS POWER-DOWN The WINNER UNIT BEFORE INSERTING SIM CARDS! Winner Dual Channel Fixed Cellular GSM Gateway User Manual...
-
Page 10: Stage 4: Pc Programming Management
3.4. STAGE 4: PC PROGRAMMING MANAGEMENT 3.4.1. INSTALLING THE PC SOFTWARE 1) Insert the Winner 5.2 Installation CD into to CD drive of the PC. 2) In Windows Explorer, navigate to the installation CD drive. 3) Double click on to install the Winner 5.2 PC Manegment Software. - Page 11 5) Click Next, The Ready to install the program window will open. 6) Click install, Wait until the software installation complete message will appear. Winner Dual Channel Fixed Cellular GSM Gateway User Manual...
- Page 12 The software window will open. 2) Connect the com port cable from the Com1 connection in the Gateway to the PC Com port. 3) Press in the toolbar. The connection window will open. Winner Dual Channel Fixed Cellular GSM Gateway User Manual...
- Page 13 8) The Gateway Ver: is the firmware program version of the gateway. 9) The Bootluader Ver: is the bootluader program version. 10) The Gateway Mode: is the connected port type (Master or Slave). 3.4.2.2. PORT SETTINGS 1) Press to configure the port. Winner Dual Channel Fixed Cellular GSM Gateway User Manual...
- Page 14 5) Select in Ignore First Digit the digit to ignore when appears in the beginning of the number. Disable – No digit will be ignored. Any – Any first digit will be ignored. Winner Dual Channel Fixed Cellular GSM Gateway User Manual...
- Page 15 17) Select in the RX Volume the volume of the speaker in the PBX. 18) Select in the TX Volume the volume of the microphone from the PBX. 3.4.2.3. 3. PREFIXES SETTING 1) Press to configure the SIMs settings and prefixes. Winner Dual Channel Fixed Cellular GSM Gateway User Manual...
- Page 16 Billing sum is based on the number of pulses counted during a conversation. "No. of pulses" can be separately programmed for each SIM Prefix. To set the tariffs press the Tariffs button. Winner Dual Channel Fixed Cellular GSM Gateway User Manual...
- Page 17 4) A 16KHz counter has to be attached to the telephone line, in order to utilize the By-Tariff option. 3.4.3. SYSTEM SETTING 1) Press button to set the time of the gateway. Winner Dual Channel Fixed Cellular GSM Gateway User Manual...
-
Page 18: Stage 5: Testing
With multiple SIMs: Make a call to each provider and watch the call progress on the LCD, You should see the provider’s name and the dialed number, if all works 'OK' then you are done. Winner Dual Channel Fixed Cellular GSM Gateway User Manual... -
Page 19: General Technical Information
Ringing Voltage: -70 V DC typical On hook voltage: -58 V DC typical Off hook Voltage: -24 V DC typical Off hook Loop current: 27mA @ 600 Ohm programming resistive Winner Dual Channel Fixed Cellular GSM Gateway User Manual... -
Page 20: Enviromental Characteristics
Packing - Per EuroTech standard Transportation - Transport conditions are according to EuroTech Standards. Storage Condition - Storage conditions are according to class 1.1, ETS 300 019 –1-1 (-20°C +80°C), 25°C to +65°C Winner Dual Channel Fixed Cellular GSM Gateway User Manual...
