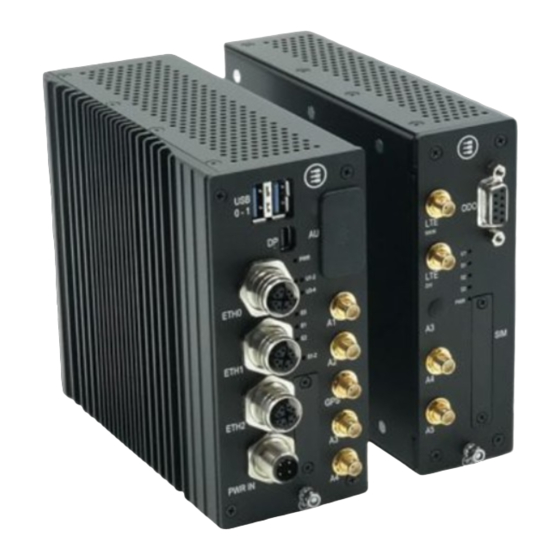

BoltGATE 20-31
Modular IoT Edge Gateway for Rolling Stock
Original instructions – Rev: 1-6 2022.07.28 – EN
Code: BTGATE-20-31_MAN_EN_1-6
FOR SAFE AND PROPER USE,
FOLLOW THESE INSTRUCTIONS.
KEEP THEM FOR FUTURE REFERENCE.
User's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BoltGATE 20-31 and is the answer not in the manual?

Questions and answers

Related Manuals for Eurotech BoltGATE 20-31

Summary of Contents for Eurotech BoltGATE 20-31

  • Page 1 User's manual BoltGATE 20-31 Modular IoT Edge Gateway for Rolling Stock Original instructions – Rev: 1-6 2022.07.28 – EN Code: BTGATE-20-31_MAN_EN_1-6 FOR SAFE AND PROPER USE, FOLLOW THESE INSTRUCTIONS. KEEP THEM FOR FUTURE REFERENCE.

  • Page 2: Intended Audience Of This Document

    . In the file "SER_LED.htm": fixed wrong image Removed block diagram section. Updated section "Antenna list" 2 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 3: How To Get Started

    APIs allowing you to write and deploy your own IoT application. For more information, refer to: "Eurotech Everyware IoT" on page 91 http://esf.eurotech.com/docs. © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 3 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 4 (This page is intentionally left blank)

  • Page 5: Table Of Contents

    5.4.4 Labels on the BoltSER 20-31 6 Certifications 6.1 Declaration of Conformity 6.2 CE marking 6.2.1 Safety © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 5 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 6 9.1 BoltIO 20-31 connectors 9.1.1 Digital inputs and digital outputs characteristics 9.1.2 Insulated Digital Inputs 9.1.3 Insulated Digital Outputs 6 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 7 13.2 How to safely remove the power supply 13.3 How to verify the installation of the product 13.4 How to clean the product Notes © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 7 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 8 (This page is intentionally left blank)

  • Page 9: Safety-Related Information

    RELATED INFORMATION This chapter gives the following information: 1.1 Important information 1.2 Explanation of messages 1.3 Safety instructions © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 9 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 10: Important Information

    Indicates how to avoid the hazardous situation. NOTICE Used to address practices not related to physical injury. 10 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 11: Safety Instructions

    If the product is used at high temperatures, its surfaces become hot. Burn hazard. Before you touch the product's surfaces, make sure that they are cool. © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 11 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 12 (This page is intentionally left blank)

  • Page 13: Consignes De Sécurité

    Ce chapitre fournit les informations suivantes: 2.1 Informations importantes 2.2 Explication des messages 2.3 Instructions de sécurité © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 13 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 14: Informations Importantes

    Indique comment éviter la situation dangereuse. AVIS Utilisé pour traiter les pratiques non liées à des blessures physiques. 14 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 15: Instructions De Sécurité

    Si le produit est utilisé à des températures élevées, ses surfaces deviennent chaudes. Risque de brûlure. Avant de toucher les surfaces du produit, assurez-vous qu'elles sont froides. © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 15 / 98 Code: BTGATE-20-31_MAN_EN_1-6...
  • Page 16 (This page is intentionally left blank)

  • Page 17: Technical Terms And Graphical Symbols

    ECHNICAL TERMS AND GRAPHICAL SYMBOLS This chapter gives the following information: 3.1 Technical terms (acronyms, abbreviations) 3.2 Graphical symbols © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 17 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 18: Technical Terms (Acronyms, Abbreviations)

    Alternating current (AC) Direct current (DC) Earth; ground Functional earthing; functional grounding (US) Protective earth; protective ground Dangerous voltage 18 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 19: Termes Techniques Et Symboles Graphiques

    ERMES TECHNIQUES ET SYMBOLES GRAPHIQUES Ce chapitre fournit les informations suivantes: 4.1 Termes techniques (acronymes, abréviations) 4.2 Graphical symbols © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 19 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 20: Termes Techniques (Acronymes, Abréviations)

    Alternating current (AC) Direct current (DC) Earth; ground Functional earthing; functional grounding (US) Protective earth; protective ground Dangerous voltage 20 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 21: Product Overview

    5.2 Intended use and not allowed uses of the product 5.3 Technical specifications 5.4 Labels on the product © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 21 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 22: Product Description

    The main CPU Module – the BoltGATE 20-31 – is based on the Intel® Atom™ E3900 processor, with up to 8GB of ECC RAM, up to 32GB of eMMC, and an optional SSD storage module. Interfaces include up to 3x GbE, 2x USB 3.0, Serial, and Display ports;...

  • Page 23: Intended Use And Not Allowed Uses Of The Product

    In safety-critical applications In environments with potentially explosive atmospheres If not installed according to the instructions and warnings contained in this document. © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 23 / 98 Code: BTGATE-20-31_MAN_EN_1-6...

  • Page 24: Technical Specifications

    Ultra-wide input voltage range: 9 to 137.5 VDC, with ignition key sense Consumption 15W Typical, 30W Max 24 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 25 61x132x150 (WxHxD); mm - Connectors and Mounting Bracket excluded SOFTWARE Eurotech Everyware Linux or Windows 10 IoT Enterprise (§) UL, NRTL listing Factory Option © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 25 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 26: Boltair 20-31 Technical Specifications

    Material: Aluminum - Color: Black Anodized Dimensions 42x132x150 (WxHxD); mm - Connectors and Mounting Bracket excluded (§) UL, NRTL listing Factory Option 26 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 27: Boltio 20-31 Technical Specifications

    Material: Aluminum - Color: Black Anodized Dimensions 42x132x150 (WxHxD); mm - Connectors and Mounting Bracket excluded (§) UL, NRTL listing Factory Option © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 27 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 28: Boltser 20-31 Technical Specifications

    Material: Aluminum - Color: Black Anodized Dimensions 42x132x150 (WxHxD); mm - Connectors and Mounting Bracket excluded (§) UL, NRTL listing Factory Option 28 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 29: Labels On The Product

    * Information included in the label depends on the product version ** The symbol stands for direct current © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 29 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 30: Labels On The Boltio

    * Information included in the label depends on the product version ** The symbol stands for direct current 30 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 31: Certifications

    6.4 FCC compliance 6.5 ISED Canada compliance 6.6 Antennas list 6.7 REACH compliance 6.8 Rail - Rolling stock compliance © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 31 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 32: Declaration Of Conformity

    Because of the substances present in the product, improper disposal can cause damage to human health and to the environment. For collecting and recycling information, refer to: https://www.eurotech.com/en/support. 32 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 33: Red Compliance

    16 April 2014 on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment. Modification statement Eurotech does not approve any changes or modifications to this product by the user. Any changes or modifications could void the user’s authority to operate this product. 6.2.5.1...

  • Page 34: Fcc Compliance

    Modification statement Eurotech does not approve any changes or modifications to the product by the user. Any changes or modifications could void the user’s authority to operate the product. Eurotech n’approuve aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit la nature.

  • Page 35: Rf Radiation Exposure Statement

    Pour les informations de la FCC indiquées sur l'étiquette du produit, voir: "Labels on the product" page © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 35 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 36: Ised Canada Compliance

    Cet appareil est conforme avec Santé Canada Code de sécurité 6. Le programme d'installation de cet appareil doit s'assurer que les rayonnements RF n'est pas émis au-delà de I'exigence de Santé Canada 36 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 37: Ised Restrictions On 5 Ghz Wi-Fi Usage

    Company Number is issued by Innovation, Science and Economic Development Canada (formerly Industry Canada). Le numéro d'entreprise est délivré par Innovation, Science et Développement économique Canada (anciennement Industrie Canada) © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 37 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 38: Antennas List

    2500 - 2700 GNSS Taoglas MA950.A.LBICG.005 GPS/GALILEO: 1575.42±1.023 <3 GLONASS:1602±5 BeiDou:1561.098±2.046 2J Antennas 2J4301MPGF 1575.42 - 1606 38 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 39: Antennas List For Fcc/Ised Compliance

    617 - 960 1427 - 2690 3300 - 5000 5150 - 5925 GNSS 2J Antennas 2J4301MPGF 1575.42 - 1606 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 39 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 40: Reach Compliance

    Power supply interruptions EN 50155:2017 Class S2 (up to 10ms) EMC emissions EN 50121-3-2:2016 EMC immunity EN 50121-3-2:2016 40 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 41: Main Cpu Module Interfaces

    7.3 Main CPU Modules Interfaces 7.4 Main CPU Module LED indicators 7.5 Main CPU Module Service Panel and Service Interfaces © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 41 / 98 Code: BTGATE-20-31_MAN_EN_1-6...

  • Page 42: Main Cpu Module Connectors (Vers: -11)

    LTE Diversity antenna connector Earth connection terminal Service Panel: contains the MicroSD Card and the Reset Pushbutton 42 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 43: Main Cpu Module Connectors (Vers: -21 And -31)

    Wi-Fi (MIMO) Diversity Antenna Connector Earth connection terminal Service Panel: contains the MicroSD Card and the Reset Pushbutton © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 43 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 44: Main Cpu Modules Interfaces

    Lane 2 (positive) AUX+ Auxiliary Channel (positive) Lane 2 (negative) AUX- Auxiliary Channel (negative) GND6 Ground Power for connector 44 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 45: Eth0, Eth1, Eth2: Gb Ethernet Connectors Specifications

    Cable-Mount; M12 series Gender: Female Type: B-Coded; 4-pin Example of cable: Manufacturer: Conec Part Number:43-00292 (or equivalent) © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 45 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 46: Navigation System Specifications

    Female inner pin contact Female connector body (outer thread) Connector Specifications: SMA connector Gender: Female Mating Connector Specifications: SMA connector Gender: Male 46 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 47: Lte Cellular Modem Specifications

    < 1.5dB for DCS1800, PCS1900, WCDMA B1/B2/B4, LTE-FDD B1/ B2/ B3/ B4/ B25/ B39 < 2dB for LTE-FDD B7, LTE-TDD B38/ B40/ B41 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 47 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 48 Female inner pin contact Female connector body (outer thread) Connector Specifications: SMA connector Gender: Female Mating Connector Specifications: SMA connector Gender: Male 48 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 49: Wi-Fi And Bt Specifications (Vers: -21 And -31 Only)

    802.11n 2.4G HT40 : Typical 14 dBm at MCS7 / 16dBm at MCS0 +/- 2dBm Bluetooth (BT 4.0 , BLE coexistence; Class 2 Device) -6 ≤ Output Power ≤ +7 dBm (Conductive) © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 49 / 98 Code: BTGATE-20-31_MAN_EN_1-6...
  • Page 50 HT40 MCS7 less than 61 dBm 802.11n 5G: HT20 MCS7 less than 64 dBm HT40 MCS7 less than 61 dBm 50 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 51 Male inner pin contact Female connector body (outer thread) Connector Specifications: RP-SMA connector Gender: Female Mating Connector Specifications: RP-SMA connector Gender: Male © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 51 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 52: Mvb Esd+ ("Rx Only" Or "Rx/Tx") Interface Specifications (Vers: -11 Only)

    Fig. 3 - ESD terminator connector arrangement 52 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 53: Earth Connection Terminal Specifications

    M4 washer NOTICE The earthing conductor to be connected to this terminal must have a size of 1 mm © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 53 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 54: Main Cpu Module Led Indicators

    ETH2 activity Green Activity for Mini PCI Express slot #1 Green Activity for Mini PCI Express slot #2 54 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 55: Main Cpu Module Service Panel And Service Interfaces

    Reset Pushbutton MicroSIM push-push receptacle (not available) TTL Serial Console (3.3 V TTL compatible) MicroSD push-push receptacle © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 55 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 56: How To Insert A Microsd Card

    Connector Housing Gender: Female Type: Pitch 1.25 mm; 3-pin Example: Manufacturer: Molex Part Number: 51021-0300 (or equivalent) 56 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 57: Boltair 20-31 Interfaces

    8.1 BoltAIR 20-31 connectors 8.2 BoltAIR 20-31 LED indicators 8.3 BoltAIR 20-31 Service Panel and Service Interfaces © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 57 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 58: Boltair 20-31 Connectors

    Service Panel: contains the MicroSIM receptacle Earth connection terminal NOTE: Antenna connector labeled A3 is not available. 58 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 59: Lte Modem Specifications

    < 1.5dB for DCS1800, PCS1900, WCDMA B1/B2/B4, LTE-FDD B1/ B2/ B3/ B4/ B25/ B39 < 2dB for LTE-FDD B7, LTE-TDD B38/ B40/ B41 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 59 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 60 Female inner pin contact Female connector body (outer thread) Connector Specifications: SMA connector Gender: Female Mating Connector Specifications: SMA connector Gender: Male 60 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 61: Wi-Fi And Bluetooth Specifications

    802.11n 2.4G HT40 : Typical 14 dBm at MCS7 / 16dBm at MCS0 +/- 2dBm Bluetooth (BT 4.0 , BLE coexistence; Class 2 Device) -6 ≤ Output Power ≤ +7 dBm (Conductive) © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 61 / 98 Code: BTGATE-20-31_MAN_EN_1-6...
  • Page 62 HT40 MCS7 less than 61 dBm 802.11n 5G: HT20 MCS7 less than 64 dBm HT40 MCS7 less than 61 dBm 62 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 63 Male inner pin contact Female connector body (outer thread) Connector Specifications: RP-SMA connector Gender: Female Mating Connector Specifications: RP-SMA connector Gender: Male © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 63 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 64: Odometer Specifications

    Connector Specifications: Standard 9-Pin D-Sub (socket) Gender: Female Mating Connector Specifications: Standard 9-Pin D-Sub (plug) Gender: Male 64 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 65: Earth Connection Terminal Specifications

    M4 washer NOTICE The earthing conductor to be connected to this terminal must have a size of 1 mm © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 65 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 66: Boltair 20-31 Led Indicators

    Mini PCI Express slot #2 activity Green Mini PCI Express slot #3 activity Blue Power input presence 66 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 67: Boltair 20-31 Service Panel And Service Interfaces

    The Service Interfaces are as follows: Ref # Description 1st MicroSIM push-push receptacle 2nd MicroSIM push-push receptacle (not available) © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 67 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 68: How To Insert A Microsim Card

    2. Push the MicroSIM card in the receptacle to lock it. 68 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 69: Boltio 20-31 Interfaces

    IO 20-31 INTERFACES This chapter gives the following information: 9.1 BoltIO 20-31 connectors 9.2 BoltIO 20-31 LED indicator © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 69 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 70: Boltio 20-31 Connectors

    Earth connection terminal 9.1.1 Digital inputs and digital outputs characteristics Digital I/Os Isolation: Inputs 3.7kV Outputs: 1.5kV 70 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 71: Insulated Digital Inputs

    Maximum: 2.5 Ohm 9.1.3.2 Electrical schematics The figure below shows the electrical schematics of one digital output: © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 71 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 72 Gender: Female OUT14 Isolated Digital Output 14 OUT15 Isolated Digital Output 15 OUT16 Isolated Digital Output 16 72 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 73: Earth Connection Terminal Specifications

    M4 washer NOTICE The earthing conductor to be connected to this terminal must have a size of 1 mm © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 73 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 74: Boltio 20-31 Led Indicator

    BoltIO 20-31 LED indicator The BoltIO 20-31 LED indicator is as follows: Colour Description Blue Power input presence 74 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 75: 10 Boltser 20-31 Interfaces

    SER 20-31 INTERFACES This chapter gives the following information: 10.1 BoltSER 20-31 connectors 10.2 BoltSER 20-31 LED indicator © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 75 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 76: Boltser 20-31 Connectors

    ISO 11898-2:2003 compliant Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase 76 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 77 Standard 9-Pin D-Sub (plug) CAN VDD CAN +5V Gender: Male Mating Connector Specifications: Standard 9-Pin D-Sub (socket) Gender: Female © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 77 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 78: Earth Connection Terminal Specifications

    NOTICE The earthing conductor to be connected to this terminal must have a size of 1 mm 78 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 79: Boltser 20-31 Led Indicator

    BoltSER 20-31 LED indicator The BoltSER 20-31 LED indicator is as follows: Colour Description Blue Power input presence © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 79 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 80 (This page is intentionally left blank)

  • Page 81: Product Installation And Power Supply

    11.3 How to remove the product from a DIN Rail 11.4 Mechanical specifications 11.5 How to supply power to the system © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 81 / 98 Code: BTGATE-20-31_MAN_EN_1-6...

  • Page 82: Introduction

    Make sure that the airflow is sufficient: allow a clearance of at least 1 rack unit above and below the product This is the minimum clearance to allow with a typical installation (BoltGATE 20-31 + BoltAIR 20-31 + BoltSER 20-31). If the number of Expansion Modules increases, the clearance must be higher.

  • Page 83: How To Install The Product On A Din Rail

    2. Lift the product upwards so that the upper side of the Mounting bracket is released from the upper edge of the DIN rail, see step 2. The product has now been removed from the DIN rail. © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 83 / 98 Code: BTGATE-20-31_MAN_EN_1-6...

  • Page 84: Mechanical Specifications

    BoltAIR 20-31 mechanical dimensions The mechanical dimensions are as follows: 42x132x150 (WxHxD); mm - Connectors and Mounting Bracket excluded 84 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 85: Boltio 20-31 Mechanical Dimensions

    BoltSER 20-31 mechanical dimensions The mechanical dimensions are as follows: 42x132x150 (WxHxD); mm - Connectors and Mounting Bracket excluded © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 85 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 86: How To Supply Power To The System

    All Expansion Modules are intended to work only if connected to the Main CPU Module. 11.5.1 Power supply specifications Power Supply BoltGATE 20-31: Ultra-wide input voltage range: 9 to 137.5 VDC, with ignition key sense Expansion Modules: Input voltage: 5 VDC, 12 VDC Power Consumption BoltGATE 20-31: 15W Typical, 30W Max 11.5.2...

  • Page 87: Main Cpu Module And Expansion Modules Electrical Interconnections

    Power signals: +5 VDC +12 VDC Power-good output Suspend input Fig. 4 - Example of modules electrical interconnection © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 87 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 88: Power Supply Safety Instructions

    2. Check the input voltage as close as possible to the PWR IN connectorr. This is to compensate for any cable losses, caused by cable length and other cable characteristics (continued on next page...) 88 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...
  • Page 89 Power IN: pin 4; Key Signal Input (KEY) 10. To keep the BoltGATE 20-31 turned ON, make sure that Pin 4 keeps connected to "Power VIN +". © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy...

  • Page 90: How To Turn Off The System

    How to trigger a hardware reset of the system To trigger a hardware reset of the system, push the reset pushbutton. 90 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 91: Eurotech Everyware Iot

    12.3 The ESF Web UI 12.4 The ESF Wires application 12.5 Everyware Cloud (EC) 12.6 For more information © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 91 / 98 Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 92: Everyware Iot

    The default user is: admin The default password is: admin The following picture shows an example of the ESF Web UI: 92 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 93: The Esf Wires Application

    The processing unit of a node executes independently and does not affect the execution of other nodes. Thus, the nodes are highly reusable and portable. The following picture shows an example of the Wires application: © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 93 / 98 Code: BTGATE-20-31_MAN_EN_1-6...

  • Page 94: Everyware Cloud (Ec)

    12.5 Everyware Cloud (EC) Everyware Cloud (EC) is the IoT Integration Platform distributed and supported by Eurotech. It gives all the services required for the management of IoT gateways and devices in the field, including configuration management, application life-cycle management and remote access.

  • Page 95: Product Maintenance

    13.2 How to safely remove the power supply 13.3 How to verify the installation of the product 13.4 How to clean the product © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy 95 / 98 Code: BTGATE-20-31_MAN_EN_1-6...

  • Page 96: How To Maintain The Product

    To remove the dust, use a dry lint-free cloth To remove the dirt, use water-based non-flammable cleaning products. 96 / 98 © 2022 Eurotech SpA - Via Fratelli Solari 3/A - 33020 AMARO (UD) - Italy Code: BTGATE-20-31_MAN_EN_1-6 Revision: 1-6 2022.07.28...

  • Page 97: Notes

    BoltGATE 20-31 User manual Rev. 1-4 Notes OTES Id: BTGATE-20-31_Man_ENG_1-4 97 / 98...
  • Page 98 Via Fratelli Solari, 3/a For your Eurotech local contact refer to: eurotech.com/contacts 33020 Amaro (UD) - Italy Tel: +39 0433.485.411 For the Eurotech Global Support Centre refer to: support.eurotech.com Fax: +39 0433.485.499 Email: welcome@eurotech.com For the Eurotech Download Area refer to: eurotech.com/download...
