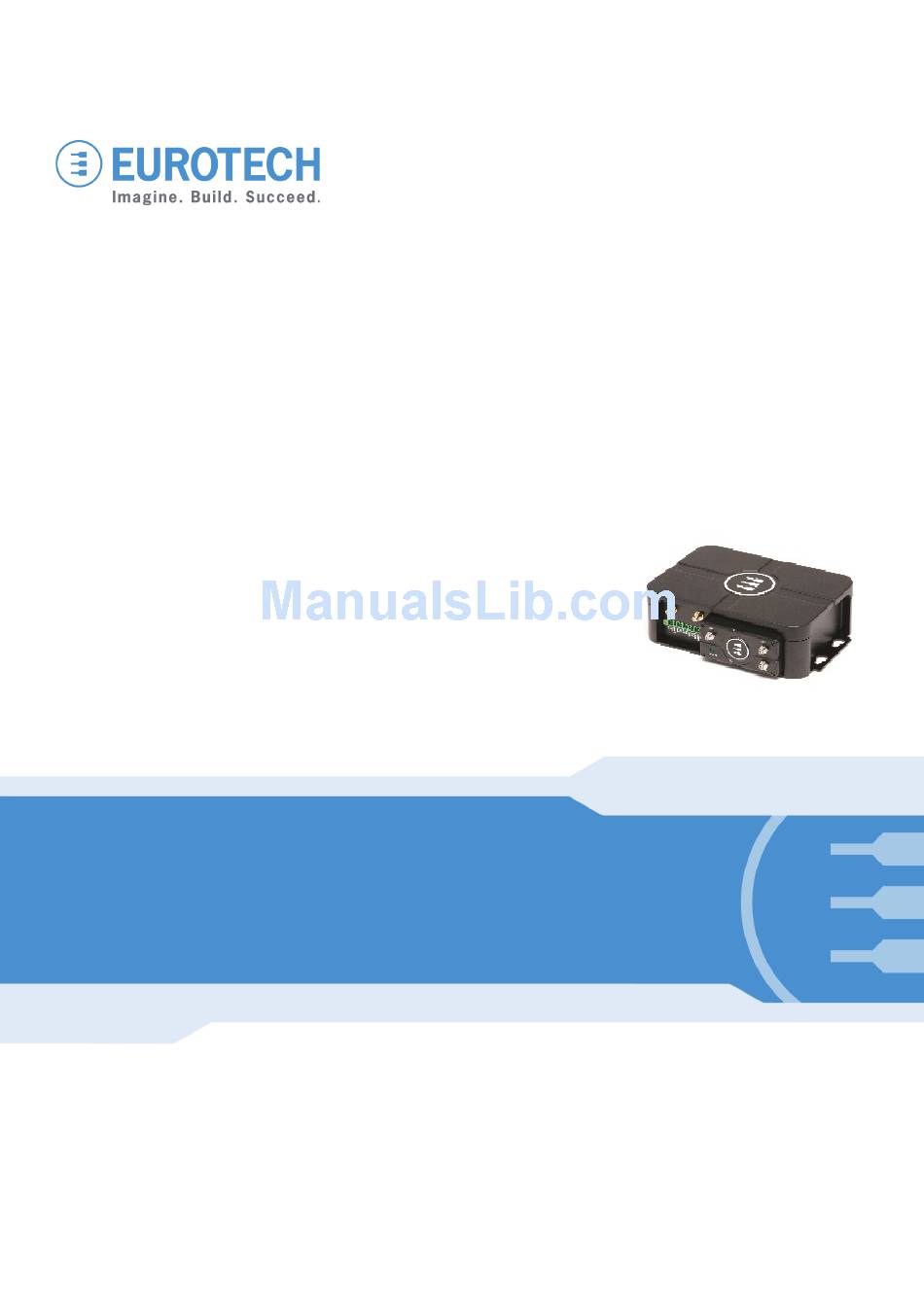

  • Page 1 USER MANUAL ReliaGATE 10-20 Multi-Service Gateway and Edge Controller Revision 1 – October 2014 – 110129-00011...

  • Page 2: Trademarks

    Trademarks All trademarks both marked and unmarked appearing in this document are the property of their respective owners. Revision history Description Date Revision October 2014 Initial release © 2014 Eurotech...

  • Page 3: Table Of Contents

    ReliaGATE 10-20 User Manual Table of Contents Table of Contents Trademarks .................................. 2 Revision history ................................2 Table of Contents ............................... 3 Safety and Regulatory ............................4 Overview ................................. 11 Block Diagram ................................12 Features ..................................13 Product Options................................. 14 Related Documents ..............................

  • Page 4: Safety And Regulatory

    Eurotech reserves the right to revise this document or to make changes to its content at any time without any obligation to notify any person of such revision or changes.
  • Page 5 Eurotech assumes no liability for the customer’s failure to comply with these requirements. The safety precautions listed below represent warnings of certain dangers of which Eurotech is aware. You, as the user of the device, should follow these warnings and all other safety precautions necessary for the safe operation of the device in your operating environment.
  • Page 6 Never open, dismantle or repair the device. • For your maintenance or repair requirement please contact a qualified Eurotech engineer. If the device does not function correctly and you are unable to find a solution, feel free to contact the Eurotech Technical Support Team. 110129-00011...
  • Page 7 ReliaGATE 10-20 User Manual Safety and Regulatory If the equipment does not work properly, especially if smells unusual, unplug it immediately and contact the Eurotech Technical Support Team (see last page of this manual for further details). Cleaning WARNING When cleaning the device, remember to: •...
  • Page 8 ReliaGATE 10-20 User Manual Life support policy WARNING Users must not use Eurotech products as critical components of life support devices or systems without the express written approval of Eurotech Spa. Warranty Please contact your local Eurotech Sales Office for detailed warranty terms and conditions.
  • Page 9 For any technical questions, or if you cannot isolate a problem with your device, or for any enquiry about repair and returns policies, feel free to contact your local Eurotech Technical Support Team. See the back cover for full contact details.
  • Page 10 Additional restrictions and requirements may be listed in the System Specifications. Warning: Any product returned to Eurotech that is damaged due to inappropriate packaging will not be covered by the warranty. Conventions The following table describes the conventions for signal names used in this document.

  • Page 11: Overview

    M2M platform integration for immediate service generation. It provides a flexible communication architecture and offers connectivity to a wide range of sensors and edge devices making it easy to deliver data to your business application. ReliaGATE 10-20 supports wireless ®...

  • Page 12: Block Diagram

    Overview ReliaGATE 10-20 User Manual Block Diagram The following diagram illustrates the organization of the ReliaGATE 10-20. Some features of the processor are accessible on the motherboard, but are not available externally. See the CPU 351-13 user manual for details.

  • Page 13: Features

    ReliaGATE 10-20 User Manual Overview Features Processor • Freescale iMX6 800MHz Solo Core processor Memory • 512 MB DDR3 DRAM • Up to 64GB on-board flash with soldered down eMMC • MicroSD expansion slot Communications • Two gigabit Ethernet ports •...

  • Page 14: Product Options

    Overview ReliaGATE 10-20 User Manual Product Options In addition to the standard features described in the previous section, the ReliaGATE 10-20 is designed to support the following options: • Amplified audio output • Application-specific ZigBee stack • Built-in cellular module •...

  • Page 15: Interfaces

    Interfaces This section describes the communications, user interface, discrete I/Os, and power supply features of the ReliaGATE 10-20. The following images illustrate the location of the interface connectors. Front Panel, ReliaGATE interfaces exposed Front Panel, ReliaGATE 10-20 installed...
  • Page 16 Interfaces ReliaGATE 10-20 User Manual Rear Panel 110129-00011...

  • Page 17: Power

    4-position, 2-row, 4.2mm shrouded receptacle housing Molex Mini-Fit 5557 series, p/n 39-01-2040, etc Crimp receptacle for 18-24 AWG wire, tin plated (4 ea) Molex p/n 39-00-0039 or 39-00-0060 The ReliaGATE 10-20 power connector is a 4-pin header located on the rear panel. RSVD Name Type...

  • Page 18: Communications

    ReliaCELL 10-20 (USB) M2.5 x 20 screws (4x) (Eurotech mounting kit 250128-90501) The ReliaGATE 10-20 includes a docking bay for the ReliaCELL 10-20, a family of cellular modem modules that are certified for networks, technologies, and carriers around the world. 110129-00011...
  • Page 19 ReliaGATE 10-20 User Manual Interfaces Secure the ReliaCELL 10-20 to the bay on ReliaGATE 10-20 as described in the Mechanical section of this manual. Follow the guidelines in the ReliaCELL user manual for antenna selection. All Eurotech operating systems are designed to support the ReliaCELL 10-20.
  • Page 20 See the System Specifications section for additional details. Vehicle – CAN 2.0b The ReliaGATE 10-20 provides a CAN 2.0b (Controller Area Network) bus on the Discrete I/O connector. CAN bus is typically found in vehicles and industrial automation equipment. See the System Specifications section for additional details.
  • Page 21 ReliaGATE 10-20 User Manual Interfaces Serial 1 DB-9 M header Connector Mating connector DB-9 F cable This connector provides access to two serial ports. Connect a standard EIA-232 cable to access three-wire port Serial 1. Use a customized cable or wiring pinout to access Serial 5.

  • Page 22: User Interface

    Interfaces ReliaGATE 10-20 User Manual User Interface The ReliaGATE 10-20 includes LEDs, GPIOs, audio I/O, and A/D inputs to complete the user interface. LED Indicators Ten light-emitting diodes (LEDs) on the rear panel indicate the status of ReliaGATE 10-20 subsystems.
  • Page 23 Micro-HDMI socket Mating connector Micro-HDMI cable assembly The ReliaGATE 10-20 includes an HDMI display output. This output requires licensing for use in commercial applications and is unlabelled on the enclosure. Contact Eurotech Sales if your application requires this feature. 110129-00011...

  • Page 24: Discrete I/O

    Interfaces ReliaGATE 10-20 User Manual Discrete I/O Connector 12-position base strip, 3.5mm, green Phoenix contact 1843897 Mating connector 12-position pluggable terminal block, 3.5mm, with screw connector Phoenix Contact 1847220 (other orientations available) A 12-position socket ("base strip") located on the rear panel provides access to analog inputs, general-purpose digital inputs, audio I/O, and the CAN bus.

  • Page 25: System Specifications

    System Specifications Mechanical The ReliaGATE 10-20 electronics are housed in a sturdy aluminium enclosure consisting of a base plate with mounting tabs and lid. This section provides mechanical details about the enclosure. Mechanical Drawings The following mechanical drawings specify the dimensions of the ReliaGATE 10-20 enclosure. Dimensions are in inches [millimeters].

  • Page 26: Power Supply

    RTC backup battery (note 2) Notes: 1. The enclosure on early ReliaGATE 10-20 models indicates a lower limit on the input voltage. While the unit might run at that voltage, it typically will not start at that voltage. 2. When system power is disconnected, the RTC is battery is powered by a 3V lithium BR1225 coin cell inside the enclosure.
  • Page 27 ReliaGATE 10-20 User Manual System Specifications The ReliaGATE 10-20 includes a seven-port USB hub that controls internal peripherals and provides three ports for external use. The external ports are designed to support higher-current devices. Loading 3 usb ports at max capacity could be an issue the extended capability is to provide transient load support, 5V regulator maxes out at 3A.
  • Page 28 System Specifications ReliaGATE 10-20 User Manual The ReliaGATE 10-20 utilizes a u-blox NEO-6M receiver for GPS functionality. Description Parameter Receiver Type Channels: Frequency: GPS L1, C/A Code SBAS: WAAS, EGNOS, MSAS Time-To-First-Fix (all satellites at -130 dBm) Cold Start (without aiding):...

  • Page 29: Discrete I/Os

    4. Conversion rate is dependent on I C clock rates. 5. Contact your Eurotech sales representative if the analog input in your application requires a faster response time. 6. Digital inputs and outputs are digitally isolated. Stuffing option for 3.3 VCC, non-isolated I/O is available.
  • Page 30 Toll free: +1 888.941.2224 Tel: +81 86.245.2861 Via Fratelli Solari, 3/a Fax: +39 0433.485.499 Tel: +1 301.490.4007 Fax: +81 86.245.2860 33020 Amaro (UD) – Italy E-mail: sales.it@eurotech.com Fax: +1 301.490.4582 E-mail: sales@advanet.jp E-mail: support.it@eurotech.com E-mail: sales.us@eurotech.com E-mail: tsupport@advanet.jp Web: www.eurotech.com E-mail: support.us@eurotech.com...
