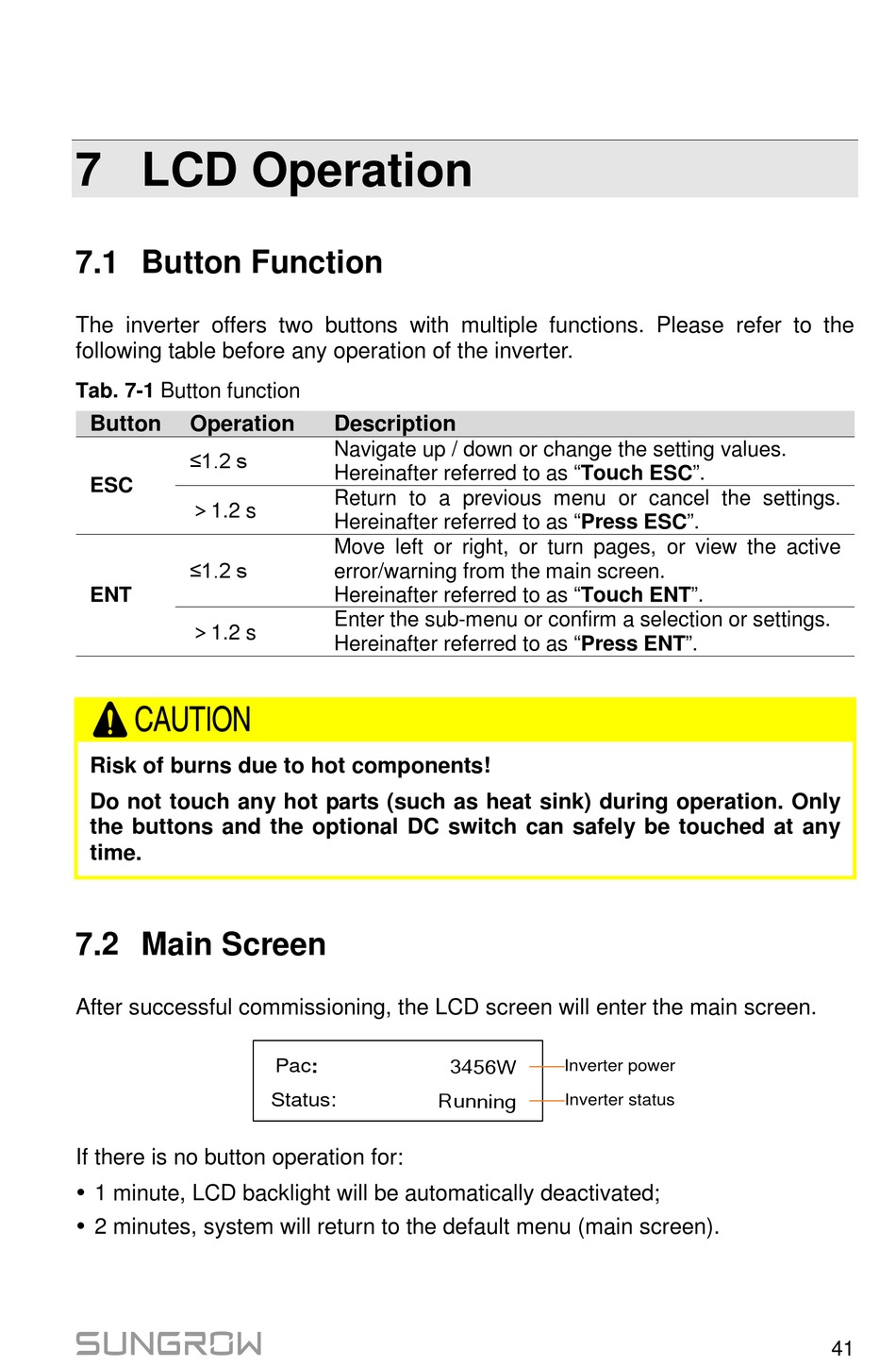

7 LCD Operation

7.1 Button Function

The inverter offers two buttons with multiple functions. Please refer to the
following table before any operation of the inverter.
Tab. 7-1 Button function
Button Operation
≤1.2 s
ESC
＞1.2 s
≤1.2 s
ENT
＞1.2 s
Risk of burns due to hot components!
Do not touch any hot parts (such as heat sink) during operation. Only
the buttons and the optional DC switch can safely be touched at any
time.

7.2 Main Screen

After successful commissioning, the LCD screen will enter the main screen.
If there is no button operation for:
 1 minute, LCD backlight will be automatically deactivated;
 2 minutes, system will return to the default menu (main screen).
Description
Navigate up / down or change the setting values.
Hereinafter referred to as "Touch ESC".
Return to a previous menu or cancel the settings.
Hereinafter referred to as "Press ESC".
Move left or right, or turn pages, or view the active
error/warning from the main screen.
Hereinafter referred to as "Touch ENT".
Enter the sub-menu or confirm a selection or settings.
Hereinafter referred to as "Press ENT".
Inverter power
Inverter status
