4. To protect the inverter from
theft, you can lock it with a
padlock.
purchased by the user if
necessary. The hole diameter
is about 8 mm.

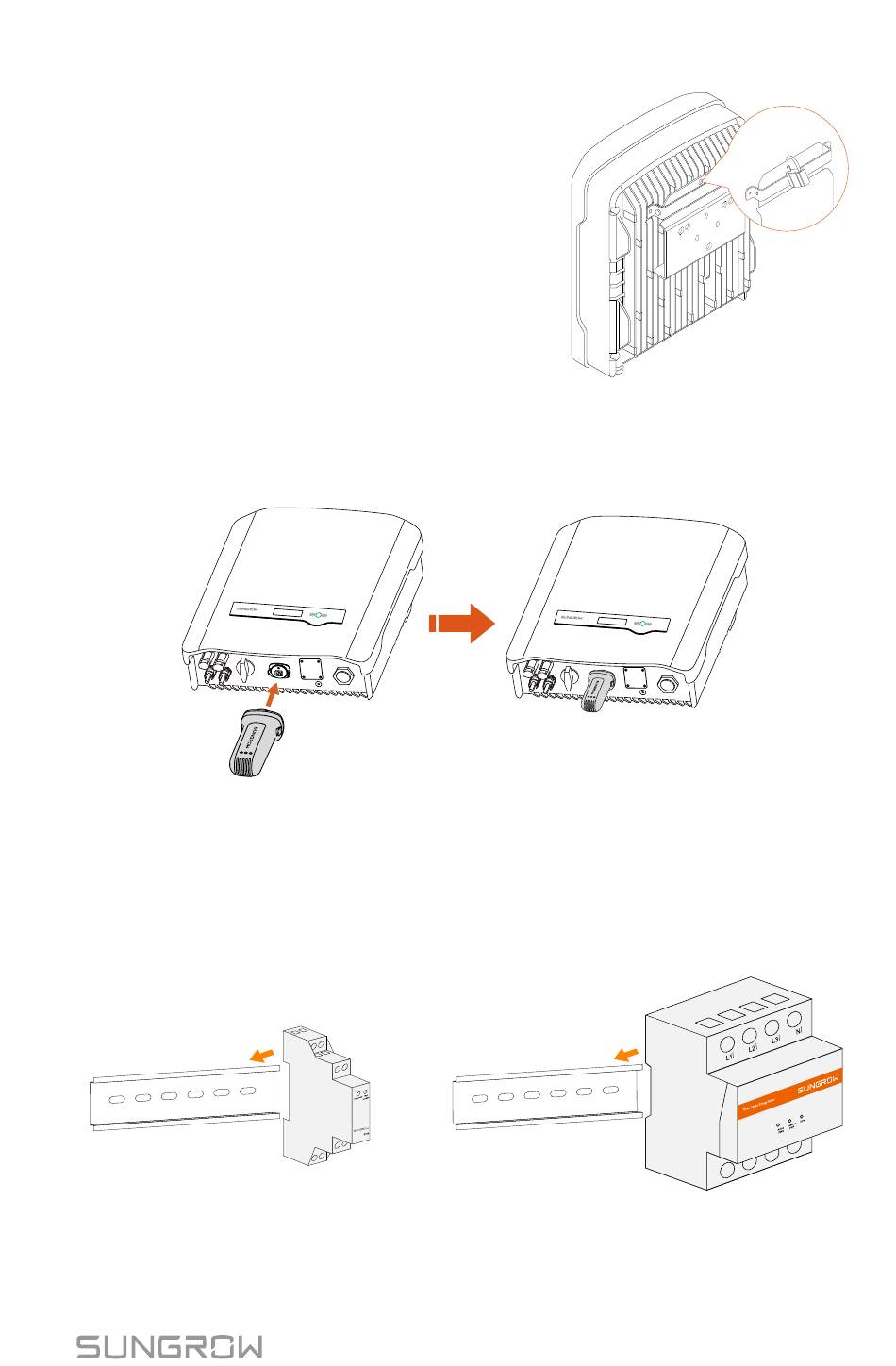

5. Remove the waterproof lid from RS485 terminal and install the
communication module to the inverter. The following figure takes the
Wi-Fi module as an example. Refer to the manual delivered with the
module for details.

4.5 Installing the Energy Meter

The SUNGROW Energy Meter should be installed between the grid and the
load. It supports a 35 mm DIN-rail installation, as shown in the following figure.
Single-phase Energy Meter
The padlock
Fig. 4-1 Installing the Meter to the Rail
is
Three-phase Energy Meter
