5 Electrical Connection

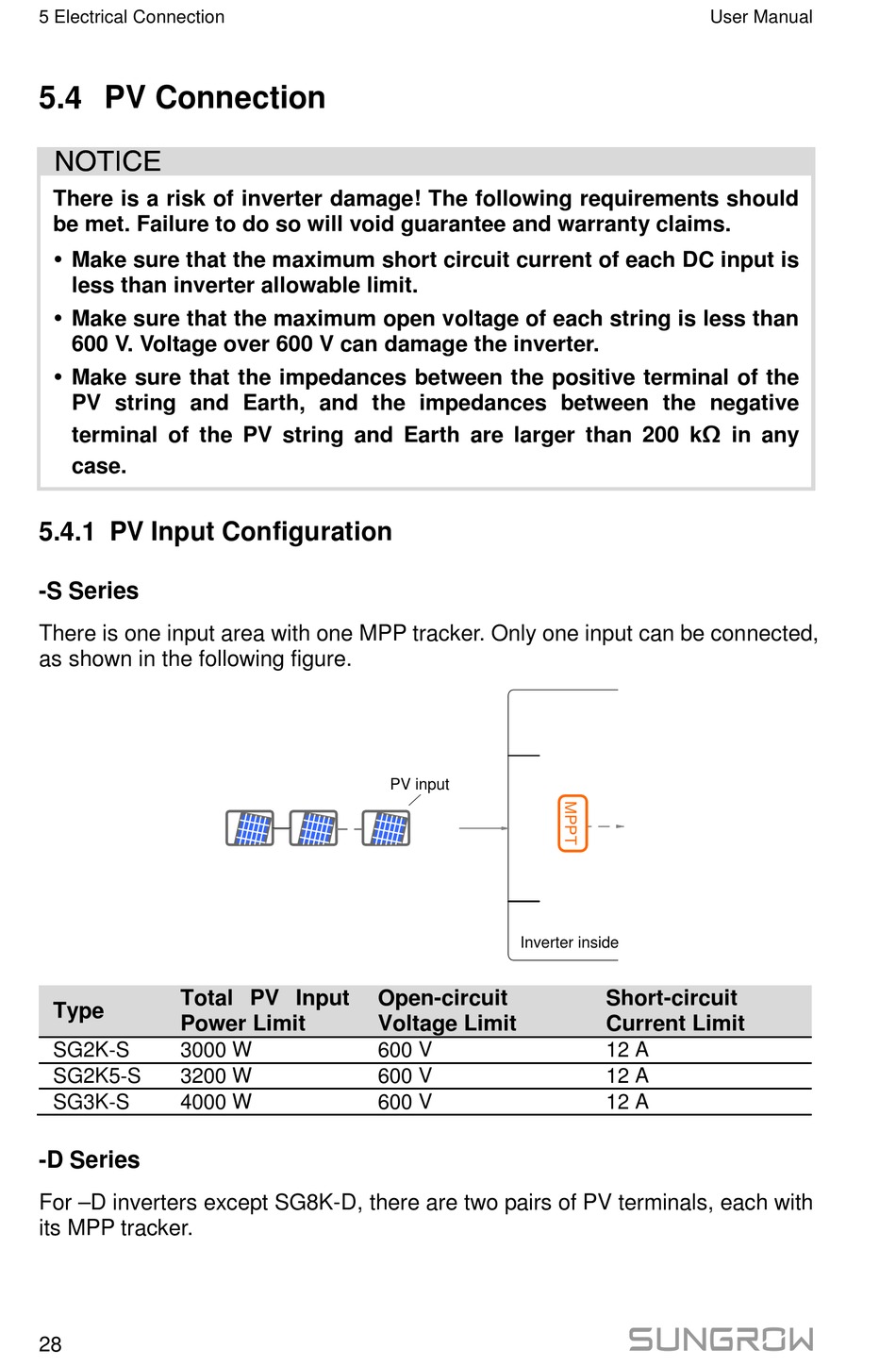

5.4 PV Connection

There is a risk of inverter damage! The following requirements should
be met. Failure to do so will void guarantee and warranty claims.
 Make sure that the maximum short circuit current of each DC input is
less than inverter allowable limit.
 Make sure that the maximum open voltage of each string is less than
600 V. Voltage over 600 V can damage the inverter.
 Make sure that the impedances between the positive terminal of the
PV string and Earth, and the impedances between the negative
terminal of the PV string and Earth are larger than 200 kΩ in any
case.

5.4.1 PV Input Configuration

-S Series
There is one input area with one MPP tracker. Only one input can be connected,
as shown in the following figure.
Total PV Input
Type
Power Limit
SG2K-S 3000 W
SG2K5-S 3200 W
SG3K-S 4000 W
-D Series
For –D inverters except SG8K-D, there are two pairs of PV terminals, each with
its MPP tracker.
28
PV input
Inverter inside
Open-circuit
Voltage Limit
600 V
600 V
600 V
User Manual
Short-circuit
Current Limit
12 A
12 A
12 A
