User Manual
Make sure that the CT clamp of 1-phase sensor is installed in the right
direction: the arrow on the sensor must point away from the grid
towards the load.
For Three-phase Energy Meter

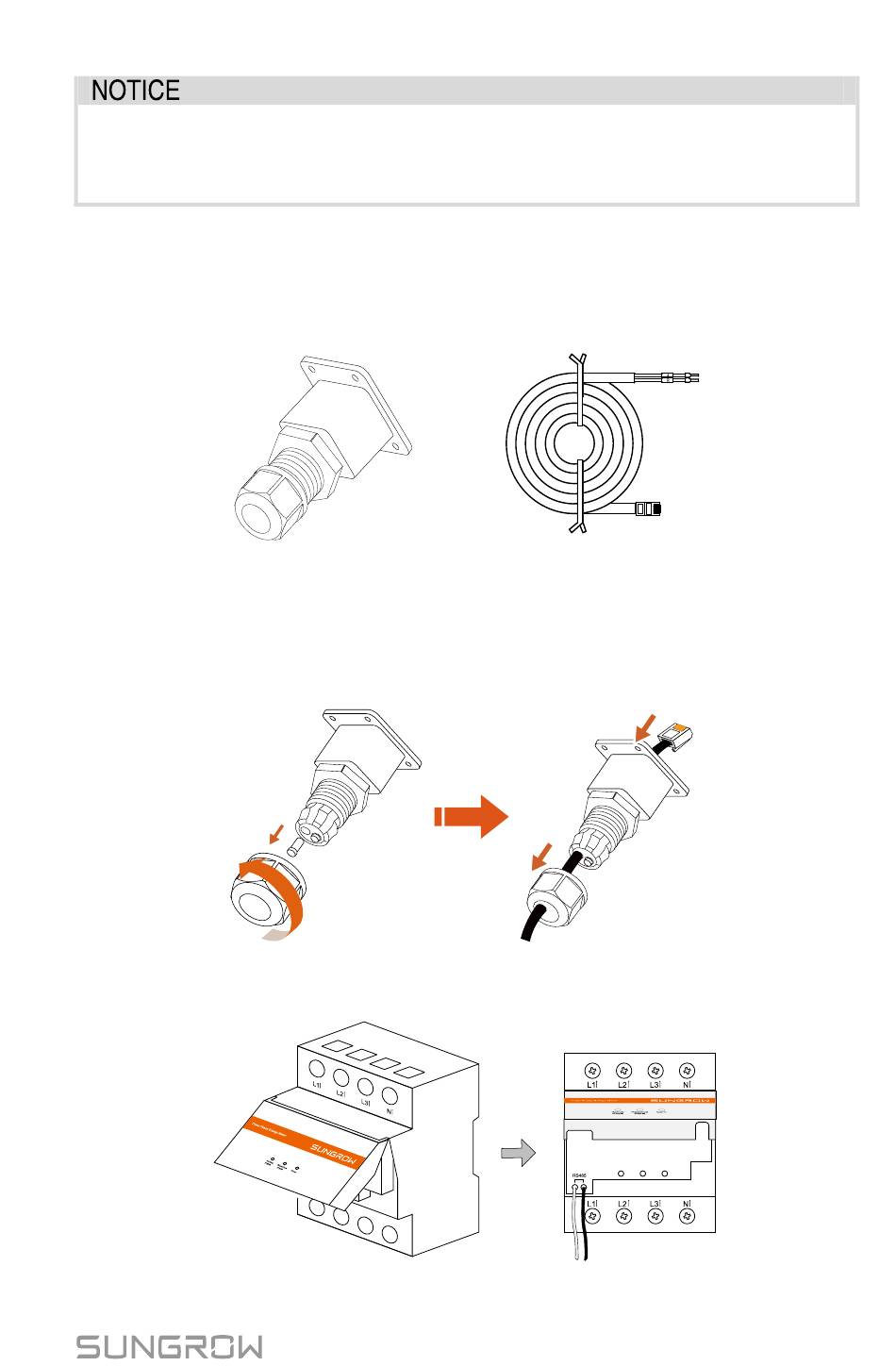

1.
Take out the communication connector from inverter's packaging, and
the meter and RS485 cable from the meter's packaging.
Communication connector
2.
Unscrew the swivel nut from the cable gland and remove the waterproof
plug from the left inlet. Lead the A and B plugs from inside out through
the communication connector. This will result in the cable with the RJ45
plug on the inside end, and the A and B plugs on the outside.
3.
Connect the A and B plugs to terminals A and B on the Energy Meter, as
shown below.
5 Electrical Connection
A
B
Meter RS485 cable
A B
35
