2 Product Introduction

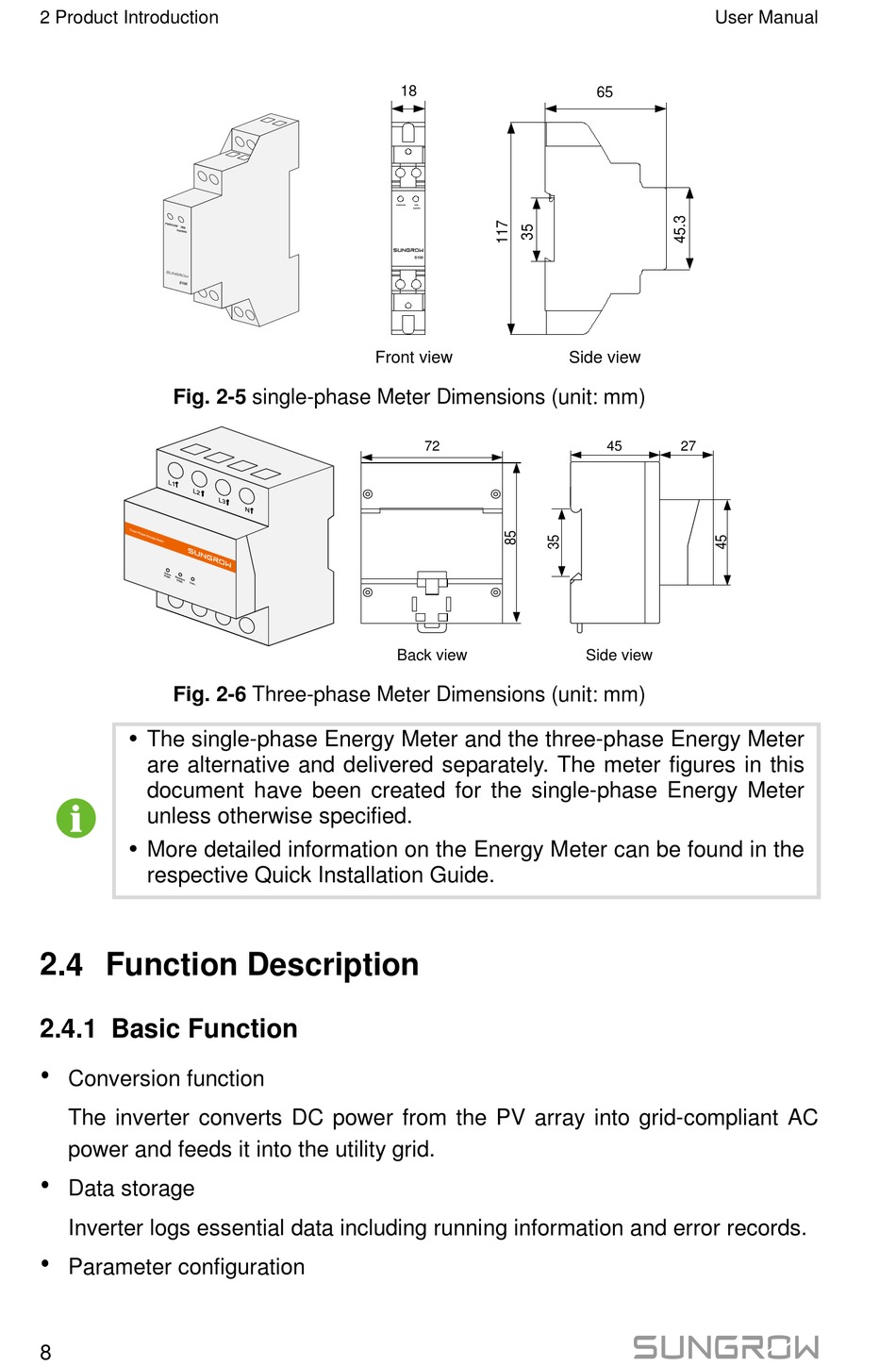

Fig. 2-5 single-phase Meter Dimensions (unit: mm)
Fig. 2-6 Three-phase Meter Dimensions (unit: mm)
 The single-phase Energy Meter and the three-phase Energy Meter
are alternative and delivered separately. The meter figures in this
document have been created for the single-phase Energy Meter
unless otherwise specified.
 More detailed information on the Energy Meter can be found in the
respective Quick Installation Guide.

2.4 Function Description

2.4.1 Basic Function


Conversion function
The inverter converts DC power from the PV array into grid-compliant AC
power and feeds it into the utility grid.

Data storage
Inverter logs essential data including running information and error records.

Parameter configuration
8
18
Front view
72
Back view
User Manual
65
Side view
45 27
Side view
