To avoid the input power unbalance of the two inputs or input
load-restriction, ensure the two PV input cables are of the same type.

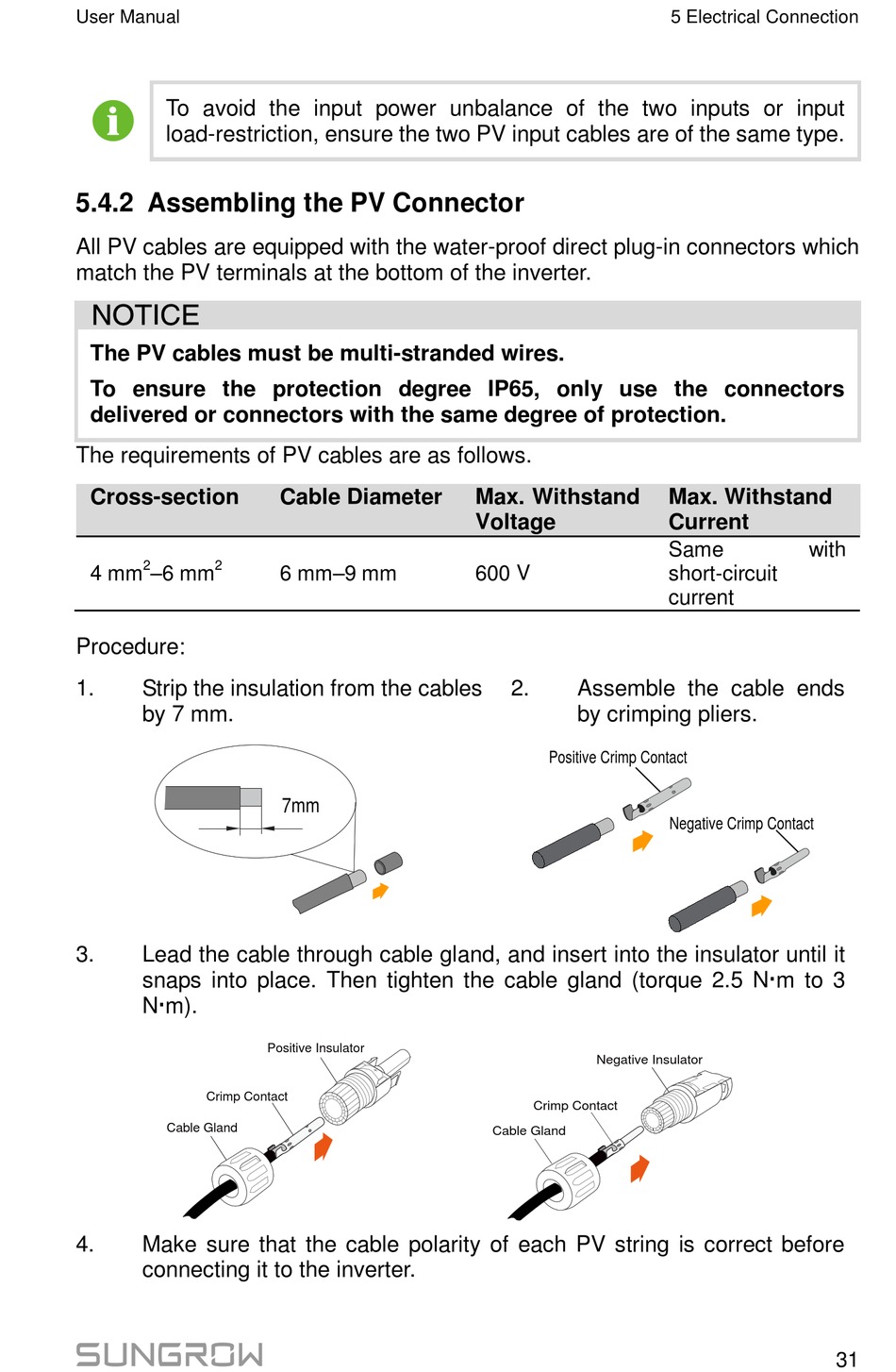

5.4.2 Assembling the PV Connector

All PV cables are equipped with the water-proof direct plug-in connectors which
match the PV terminals at the bottom of the inverter.
The PV cables must be multi-stranded wires.
To ensure the protection degree IP65, only use the connectors
delivered or connectors with the same degree of protection.
The requirements of PV cables are as follows.
Cross-section
2 2
4 mm –6 mm
Procedure:
1. Strip the insulation from the cables
by 7 mm.
3. Lead the cable through cable gland, and insert into the insulator until it
snaps into place. Then tighten the cable gland (torque 2.5 Nm to 3
Nm).
Crimp Contact
Cable Gland
4. Make sure that the cable polarity of each PV string is correct before
connecting it to the inverter.
Cable Diameter
6 mm–9 mm
7mm
Positive Insulator
Max. Withstand
Voltage
600 V
2. Assemble the cable ends
by crimping pliers.
Positive Crimp Contact
Negative Insulator
Crimp Contact
Cable Gland
5 Electrical Connection
Max. Withstand
Current
Same with
short-circuit
current
Negative Crimp Contact
