4 Mechanical Mounting

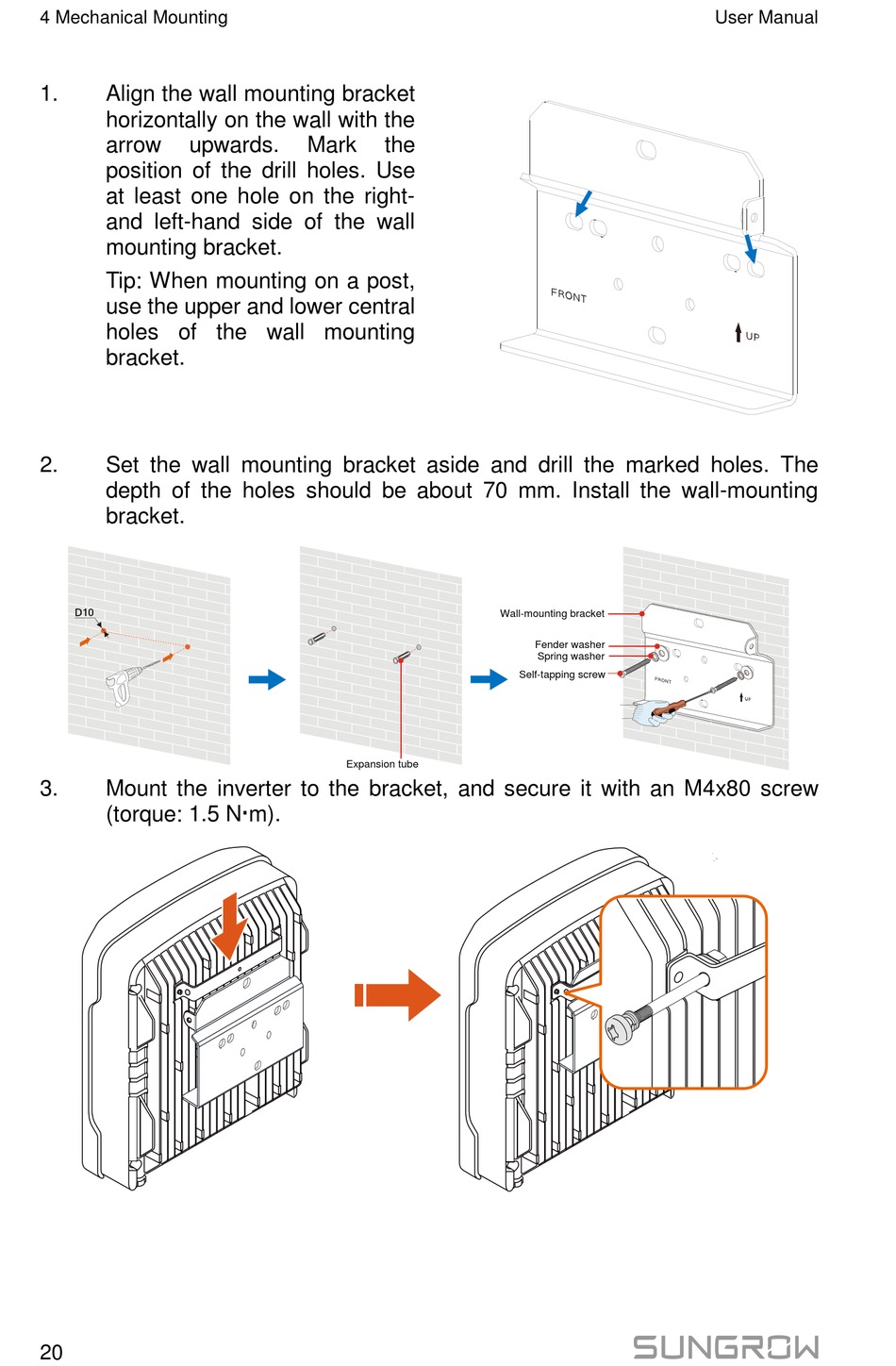

1. Align the wall mounting bracket
horizontally on the wall with the
arrow upwards.
position of the drill holes. Use
at least one hole on the right-
and left-hand side of the wall
mounting bracket.
Tip: When mounting on a post,
use the upper and lower central
holes of the wall mounting
bracket.
2. Set the wall mounting bracket aside and drill the marked holes. The
depth of the holes should be about 70 mm. Install the wall-mounting
bracket.
3. Mount the inverter to the bracket, and secure it with an M4x80 screw
(torque: 1.5 Nm).
20
Mark the
Expansion tube
Wall-mounting bracket
Fender washer
Spring washer
Self-tapping screw
