2 Product Introduction
1 2

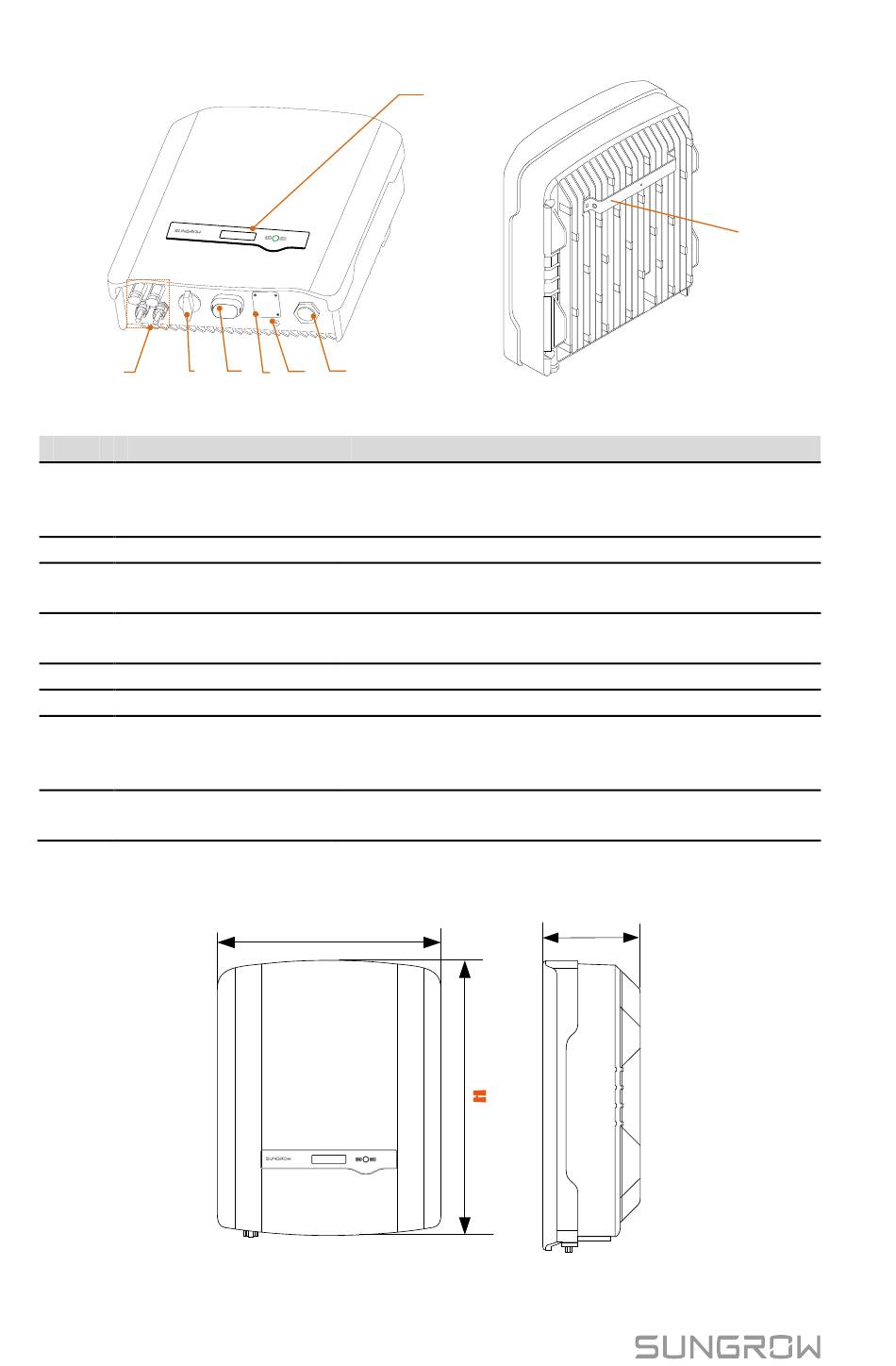

Fig. 2-2 Inverter Appearance (SG5K-D for reference)
Item Name
1 PV terminals
2 DC switch (optional)
3 RS485 terminal
Meter | DRM
4
terminal
5 Second PE terminal
6 AC terminal
7 LCD panel
8 Mounting rack
Dimensions and Weight
6
3 6
4 5
Description
Positive and negative DC input connectors.
One or two or three pairs, depending on inverter
type.
To disconnect the DC current safely.
To connect the communication module, such as
Wi-Fi module.
Connections to the energy meter and external
Demand Response Enabling Device (DRED).
For reliable grounding.
To feed power into the utility grid.
The display and two buttons can be used to
access current operating data or change inverter
settings.
For mounting the inverter to the wall mounting
bracket.
W
Fig. 2-3 Dimensions of the Inverter
7
D
