Configuration Options

Configurable parameters have a dialog box or a drop-down list. Once a configuration
change has been made on a page, be sure to click on the Apply button to confirm
the new setting. The following table summarizes the web page configuration
buttons.
Button
Revert
Apply
Help
Notes: 1.
To ensure proper screen refresh, be sure that Internet Explorer 5.x is
configured as follows: Under the menu "Tools / Internet Options / General /
Temporary Internet Files / Settings," the setting for item "Check for newer
versions of stored pages" should be "Every visit to the page."
2.
When using Internet Explorer 5.0, you may have to manually refresh the
screen after making configuration changes by pressing the browser's refresh
button.

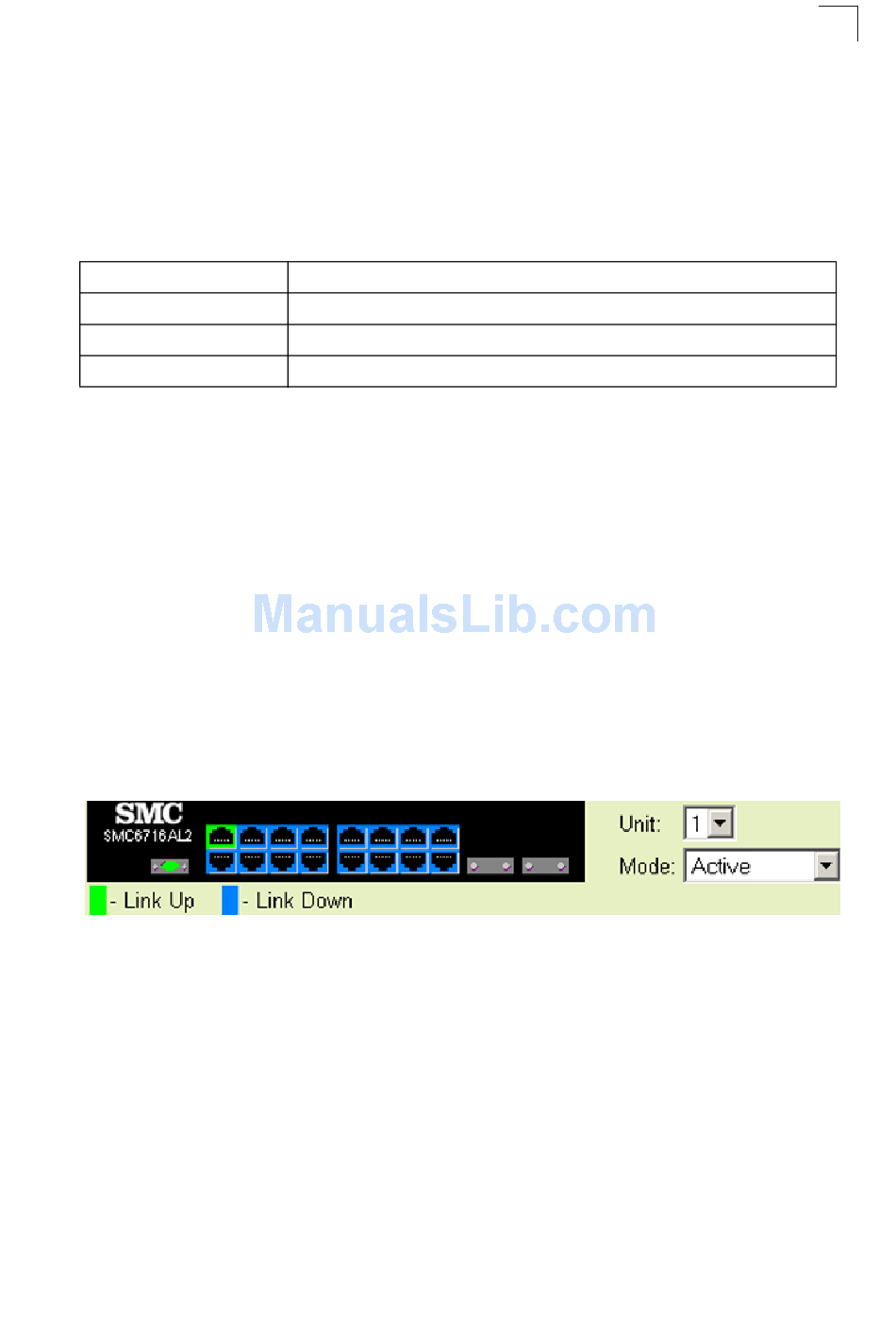

Panel Display

The web agent displays an image of the switch's ports. The Mode can be set to
display different information for the ports, including Active (i.e., up or down), Duplex
(i.e., half or full duplex, or Flow Control (i.e., with or without flow control). Clicking on
the image of a port opens the Port Configuration page as described on page 3-64.

Table 3-1. Configuration Options

Action.
Cancels specified values and restores current values prior to pressing Apply.
Sets specified values to the system.
Links directly to webhelp.

Figure 3-2. Front Panel Indicators

3
Panel Display
3-3
