3
Configuring the Switch
channeling all other traffic through a promiscuous port). Then assign any
promiscuous ports to a primary VLAN and any host ports a secondary VLAN
(i.e., community VLAN).

Displaying Current Private VLANs

The Private VLAN Information page displays information on the private VLANs
configured on the switch, including primary and community VLANs, and their
associated interfaces.
Command Attributes
• VLAN ID – ID of configured VLAN (1-4094, no leading zeroes).
• Primary VLAN – The primary VLAN with which the selected VLAN is associated.
(Note that this displays as VLAN 0 if the selected VLAN is itself a primary VLAN.)
• Ports List – The list of ports (and assigned type) in the selected private VLAN.
Web – Click VLAN, Private VLAN, Information. Select the desired port from the
VLAN ID drop-down menu.
3-114

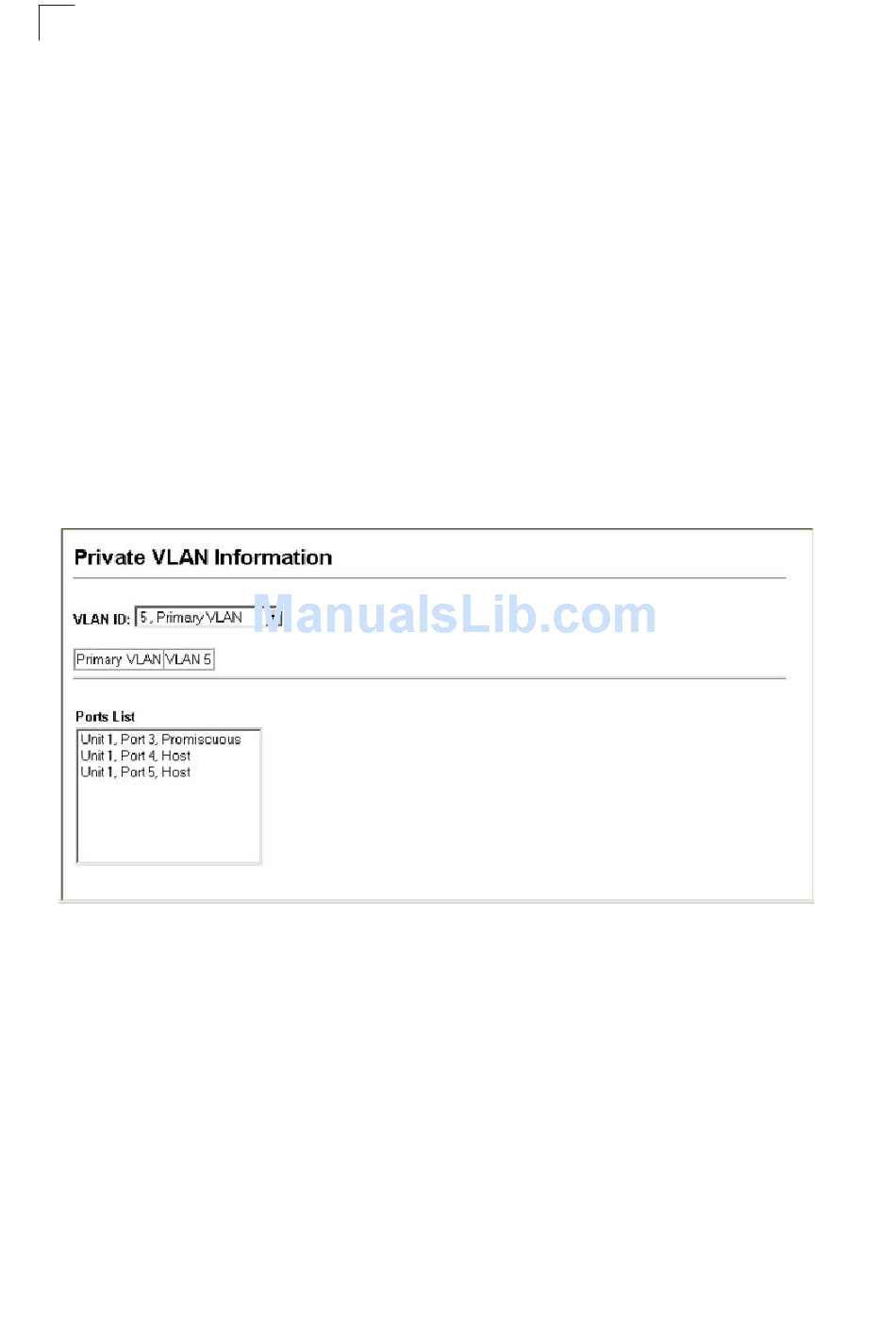

Figure 3-67. Private VLAN Information
