USER GUIDE

ADSL2 BARRICADE™
1-Port ADSL/ADSL2+ Router
SMC7901BRA5

Advertisement

Table of Contents
loading

Related Manuals for SMC Networks SMC7901BRA5

Summary of Contents for SMC Networks SMC7901BRA5

  • Page 1: User Guide

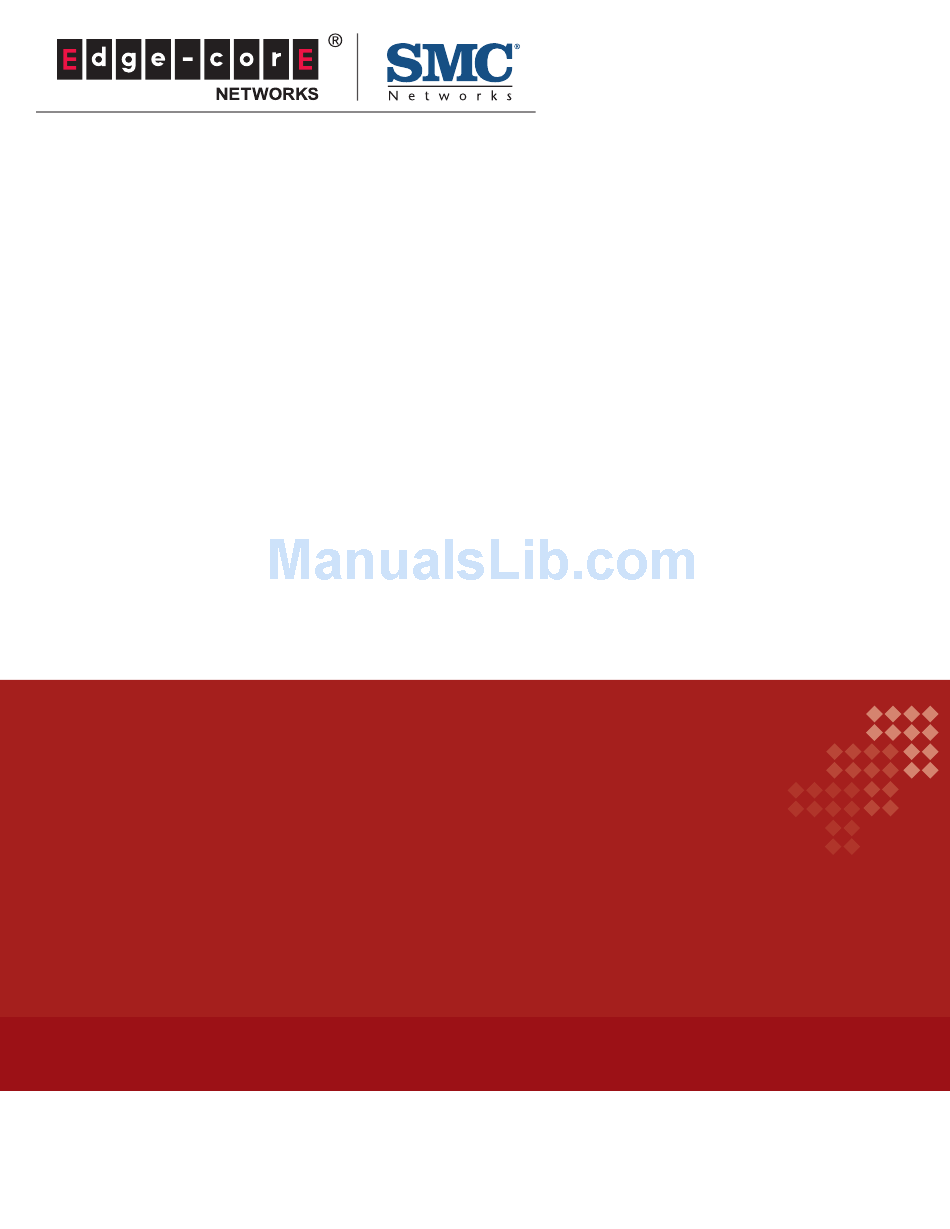

    USER GUIDE ADSL2 BARRICADE™ 1-Port ADSL/ADSL2+ Router SMC7901BRA5...
  • Page 2 1-Port ADSL/ADSL2+ Router User Guide No. 1, Creation Road III, Hsinchu Science Park, 30077, Taiwan, R.O.C. September 2011 TEL: +886 3 5770270 Pub. # 149xxxxxxxxx Fax: +886 3 5780764 SMC-UG-0911-01...
  • Page 3 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC.

  • Page 4: Warranty And Product Registration

    ARRANTY AND RODUCT EGISTRATION To register SMC products and to review the detailed warranty statement, please refer to the Support Section of the SMC Website at http:// www.smc.com. – 4 –...

  • Page 5: Compliances

    OMPLIANCES EDERAL OMMUNICATION OMMISSION NTERFERENCE TATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 6 OMPLIANCES of all devices connected to one line should not exceed five (5.0). To be certain of the number of devices you may connect to you line, as determined by the REN, you should contact your local telephone company to determine the maximum REN for your calling area. If your equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily.
  • Page 7 (EEC) ECLARATION OF ONFORMANCE FOR AFETY SMC contact for these products in Europe is: SMC Networks Europe, C/Fructuós Gelabert 6-8, 2 Edificio Conata II, 08970 - Sant Joan Despí, Barcelona, Spain. This information technology equipment complies with the requirements of...
  • Page 8 OMPLIANCES NVIRONMENTAL TATEMENT The manufacturer of this product endeavours to sustain an environmentally-friendly policy throughout the entire production process. This is achieved though the following means: Adherence to national legislation and regulations on environmental ◆ production standards. Conservation of operational resources. ◆...

  • Page 9: About This Guide

    BOUT UIDE This guide gives specific information on how to install the ADSL Gateway URPOSE Router and its physical and performance related characteristics. It also gives information on how to operate and use the management functions of the ADSL Gateway Router. This guide is for users with a basic working knowledge of computers.

  • Page 10: Table Of Contents

    ONTENTS ARRANTY AND RODUCT EGISTRATION OMPLIANCES BOUT UIDE IGURES ONTENTS ABLES ECTION ETTING TARTED NTRODUCTION Features and Benefits Description of Hardware Power Connector Power Button Reset Button NSTALLING THE OUTER Package Contents System Requirements Cable Connections Powering On Configuring the TCP/IP Protocols ECTION ONFIGURATION YSTEM...
  • Page 11 ONTENTS Step 1 - Getting Started Step 2 - Time Zone Step 3 - ADSL Settings Step 4 - Configuration Saving EVICE NFORMATION System Status LAN Status WAN Status Port Mapping Traffic Statistics DSL Statistics ARP Table 5 LAN S ETTINGS LAN Interface DHCP Settings...
  • Page 12 ONTENTS NAT ALG and Pass-Through NAT Port Trigger FTP ALG Configuration NAT IP Mapping Quality of Service MAC Filtering URL Blocking Software Forbidden IGMP Proxy Configuration RIP Configuration ARP Binding Configuration DVANCED Bridge Setting Log Setting Routing Configuration UPnP SNMP Protocol Configuration System Time Configuration Other Advanced Configuration Port Mapping...

  • Page 13: Contents

    ONTENTS ECTION PPENDICES ROUBLESHOOTING Diagnosing Gateway Indicators If You Cannot Connect to the Internet Problems Accessing the Management Interface ARDWARE PECIFICATIONS Physical Characteristics Software Features Standards Compliances ABLES AND INOUTS Twisted-Pair Cable Assignments 10/100BASE-TX Pin Assignments Straight-Through Wiring Crossover Wiring RJ-11 Port LOSSARY NDEX...
  • Page 14 IGURES Figure 1: Top Panel Figure 2: Rear Panel Figure 3: Connecting the Router Figure 4: Web Login Figure 5: Home Page Figure 6: Wizard Step 1 - Getting Started Figure 7: Wizard Step 2 - Time Zone Configuration Figure 8: Wizard Step 3 - ADSL Settings Figure 9: Wizard Step 3 - Configuration Saving Figure 10: System Status Figure 11: Status - LAN...
  • Page 15 IGURES Figure 32: NAT — Exclude IP Figure 33: NAT Forwarding Settings Figure 34: NAT ALG and Pass-Through Figure 35: NAT — Port Trigger Figure 36: NAT — FTP ALG Configuration Figure 37: NAT — IP Mapping Figure 38: Quality of Service Figure 39: MAC Filtering Settings Figure 40: DMZ Settings Figure 41: URL Blocking Settings...
  • Page 16 IGURES Figure 68: Straight-through Wiring Figure 69: Crossover Wiring Figure 70: RJ-11 Wiring – 12 –...

  • Page 17: Tables

    ABLES Table 1: LED Display Indicators Table 2: Configuration Menu Table 3: LED Troubleshooting Chart Table 4: Web Access Troubleshooting Chart Table 5: 10/100BASE-TX MDI and MDI-X Port Pinouts Table 6: RJ-11 Port Pinouts – 17 –...

  • Page 18: Sectioni

    ECTION ETTING TARTED This section provides an overview of the ADSL Gateway Router, and describes how to install and mount the unit. This section includes these chapters: “Introduction” on page 19 ◆ “Installing the Router” on page 23 ◆ – 18 –...

  • Page 19: Introduction

    NTRODUCTION The Barricade ADSL Gateway Router (SMC7901BRA5) is an ADSL2/2+ modem contained in a compact unit. The router enables multiple wired users to securely access the Internet through a single-user account with the ADSL service provider. The router provides one 10/100 Mbps Ethernet port or USB port for connection to the end user, and one ADSL line for connection to the Internet service provider.

  • Page 20: Description Of Hardware

    | Introduction HAPTER Description of Hardware ESCRIPTION OF ARDWARE This ADSL Gateway Router is a high bit-rate Digital Subscriber Line (DSL) modem that can connect to an ADSL Internet service provider. This unit provides the following ports on the rear panel: One RJ-11 port for connection to your ADSL service provider’s incoming ◆...

  • Page 21: Figure 2: Rear Panel

    | Introduction HAPTER Description of Hardware Figure 2: Rear Panel USB Port Power Socket and WAN Port Ethernet Port Reset Button On/Off Switch The ADSL Gateway Router includes key system and port indicators that simplify installation and network troubleshooting. The LEDs, which are located on the top of the unit for easy viewing, are described in the following table.

  • Page 22: Power Connector

    | Introduction HAPTER Description of Hardware The ADSL Gateway Router must be powered with its supplied power OWER ONNECTOR adapter. Failure to do so results in voiding of any warrantly supplied with the product. The power adapter automatically adjusts to any voltage between 100~240 volts at 50 or 60 Hz, and supplies 12 volts DC power to the unit.

  • Page 23: Installing The Router

    ACKAGE ONTENTS After unpacking the ADSL Gateway Router, check the contents of the box to be sure that you have received the following components: Barricade ADSL Gateway Router, SMC7901BRA5 ◆ ◆ RJ-45 Category 5 network cable ADSL splitter ◆...

  • Page 24: Cable Connections

    | Installing the Router HAPTER Cable Connections The router should be located in a cool dry place, with at least ◆ 5 cm (2 in.) of space on all sides for ventilation. Place the router out of direct sunlight, and away from heat sources or ◆...

  • Page 25: Powering On

    | Installing the Router HAPTER Powering On Connect one end of the included Ethernet cable to the Ethernet port on the ADSL Gateway Router, and the other end to a PC’s RJ-45 network port. Alternatively, you can connect the Ethernet port to a LAN switch. Do not plug a phone jack connector into any RJ-45 port.
  • Page 26 | Installing the Router HAPTER Configuring the TCP/IP Protocols For Windows NT, click the “Protocols” tab. Select “TCP/IP” from the list of network protocols; this may include details of adapters installed in your computer. Click “Properties.” Check the option “Obtain an IP Address.” 2000 INDOWS Click “Start/Settings/Network/Dial-up Connections.”...
  • Page 27 | Installing the Router HAPTER Configuring the TCP/IP Protocols In the TCP/IP dialog box, verify that “Ethernet” is selected in the “Connect Via:” field. If “Using DHCP Server” is already selected in the “Configure” field, your computer is already configured for DHCP. Otherwise, select “Using DHCP Server”...

  • Page 28: Ection

    ECTION ONFIGURATION This section describes the basic settings required to access the web management interface and provides details on configuring the Gateway. This section includes these chapters: “System Configuration” on page 29 ◆ “Device Information” on page 37 ◆ “Advanced Setup” on page 47 ◆...

  • Page 29: System Configuration

    YSTEM ONFIGURATION SING THE NTERFACE The router provides a web-based management interface for configuring device features and viewing statistics to monitor network activity. This interface can be accessed by any computer on the network using a standard web browser (such as Internet Explorer 5.0, Netscape 6.2, Mozilla Firefox 2.0, or above).

  • Page 30: Home Page

    | System Configuration HAPTER Using the Web Interface When your web browser connects with the router’s web agent, the home page is displayed as shown below. Basic information can be viewed using the Status menu. To carry out detailed configuration tasks, use the other menu items.
  • Page 31 | System Configuration HAPTER Using the Web Interface Table 2: Configuration Menu (Continued) Menu Description Page DHCP Config DHCP Mode Sets DHCP server and DHCP relay settings Static IP Configures static DHCP assignments WAN Interface Channel Config Configures the DSL channel settings ATM Settings Configures DSL ATM settings ADSL Settings...
  • Page 32 | System Configuration HAPTER Using the Web Interface Table 2: Configuration Menu (Continued) Menu Description Page UPnP Enables UPnP for the WAN interface SNMP Configures SNMP settings System Time Configures NTP time server settings Others Configures Half Bridge settings Port Mapping Maps LAN ports to WAN interfaces Diagnostic Diag-Test...

  • Page 33: Setup Wizard

    | System Configuration HAPTER Setup Wizard ETUP IZARD The Wizard is designed to help you configure the basic settings required to get the ADSL Gateway Router up and running. Click “Wizard” in the main menu to get started. After reading the wizard welcome message, click Next to continue. 1 - G ETTING TARTED...

  • Page 34: Step 3 - Adsl Settings

    | System Configuration HAPTER Setup Wizard The following items are displayed on this page: Status – Enables or disables time synchronization with external ◆ servers. Server IP – Specifies the IP address of a public NTP time server on the ◆...
  • Page 35 | System Configuration HAPTER Setup Wizard Protocol — The protocol used will be specified by your service ◆ provider. Choose from the following options: PPPoE — Point-to-Point Protocol over Ethernet (PPPoE). ■ PPPoA — Point-to-Point Protocol over Asynchronous Transfer Mode ■...

  • Page 36: Step 4 - Configuration Saving

    | System Configuration HAPTER Setup Wizard The final step in the setup wizard saves the configuration changes. Click Finish to complete the wizard, then click Save. ONFIGURATION AVING Figure 9: Wizard Step 3 - Configuration Saving – 36 –...

  • Page 37: Device Information

    EVICE NFORMATION The Status pages display information on hardware/software versions, LAN and WAN connection status, statistics, and the ARP table. YSTEM TATUS The System Status page displays the hardware and software versions, and the WAN connection status and speed. Click Status, System. Figure 10: System Status The following items are displayed on this page: YSTEM...

  • Page 38: Lan Status

    | Device Information HAPTER LAN Status DSL: ◆ Operational Status – Displays the status of the DSL connection. Upstream Speed – The current upload speed of the DSL connection. ◆ Downstream Speed – The current download speed of the DSL ◆...

  • Page 39: Wan Status

    | Device Information HAPTER WAN Status MAC Address — Displays the physical layer address of the DHCP ◆ Client. Expiry(s) — Displays the duration of the lease time. ◆ Type — Indicates if the entry is dynamic or static. ◆ WAN S TATUS The ADSL Router WAN window displays basic WAN port settings.

  • Page 40: Port Mapping

    | Device Information HAPTER Port Mapping APPING The Port Mapping status shows the mapping of WAN and LAN interfaces to specific groups. Figure 13: Status - Port Mapping The following items are displayed on this page: Status — Indicates if port mapping is enabled or disabled. ◆...

  • Page 41: Traffic Statistics

    | Device Information HAPTER Traffic Statistics RAFFIC TATISTICS The ADSL Router Traffic Statistics - Interfaces window displays received and transmitted packet statistics for all interfaces on the ADSL Router. Figure 14: Status - Traffic Statistics The following items are displayed on this page: Interface —...

  • Page 42: Dsl Statistics

    | Device Information HAPTER DSL Statistics DSL S TATISTICS The ADSL Router DSL Statistics window displays received and transmitted packet statistics for all interfaces on the ADSL Router. Figure 15: Status - DSL Statistics The following items are displayed on this page: ADSL Status —...

  • Page 43: Arp Table

    | Device Information HAPTER ARP Table SNR Margin Downstream/Upstream (db) — Displays the current ◆ signal-to-noise margin expressed in decibels (dB). SNR is the ratio of signal power to the noise power corrupting the signal. Vendor ID – The vendor name of the digital signal processor (DSP). ◆...
  • Page 44 | Device Information HAPTER ARP Table The following items are displayed on this page: IP Address — IP address of a local entry in the cache. ◆ MAC Address — MAC address mapped to the corresponding IP ◆ address. Refresh — Sends a request to update the current parameters. ◆...

  • Page 45: Lan Settings

    LAN S ETTINGS This chapter describes LAN configuration on the ADSL Router. You can use the web browser interface to access IP addressing only if the ADSL Router already has an IP address that is reachable through your network. ◆ “LAN Interface”...

  • Page 46: Lan Interface

    | LAN Settings HAPTER LAN Interface LAN I NTERFACE By default, the ADSL Router is configured with the IP address 192.168.2.1, subnet mask 255.255.255.0 and a default gateway of 192.168.2.1. Figure 17: LAN Configuration The following items are displayed on this page: Interface Name —...

  • Page 47: Dhcp Settings

    | LAN Settings HAPTER DHCP Settings Secondary IP Address — Specifies a secondary IP address for ◆ management of the unit. IGMP Snooping — Enables Internet Group Management Protocol ◆ (IGMP) multicast filtering. LAN Port — Selects the LAN port. ◆...

  • Page 48: Dhcp Relay

    | LAN Settings HAPTER DHCP Settings Dynamic Host Configuration Protocol (DHCP) can dynamically allocate an DHCP R ELAY IP address and other configuration information to network clients that broadcast a request. To receive the broadcast request, the DHCP server would normally have to be on the same subnet as the client. However, when the access point’s DHCP relay agent is enabled, received client requests can be forwarded directly by the access point to a known DHCP server on another subnet.

  • Page 49: Dhcp Server

    | LAN Settings HAPTER DHCP Settings The unit can support up to 253 local clients. Addresses are assigned to DHCP S ERVER clients from a common address pool configured on the unit. Configure an address pool by specifying start and end IP addresses. Be sure not to include the unit's IP address in the address pool range.

  • Page 50: Figure 21: Device Ip Range Table

    | LAN Settings HAPTER DHCP Settings Default Gateway — Specifies the gateway address through which ◆ traffic is routed from. Usually the LAN IP address of the ADSL Router MAX Lease Time — Select a time limit for the use of an IP address ◆...

  • Page 51: Dhcp Static Ip

    | LAN Settings HAPTER DHCP Settings Assigns a physical MAC address to the DHCP pool by mapping it to a DHCP S TATIC corresponding IP address. Figure 22: DHCP Static IP Assignment The following items are displayed on this page: IP Address —...

  • Page 52: Wan Settings

    WAN S ETTINGS This chapter describes WAN configuration on the ADSL Router. The WAN pages are used to configure standard WAN services, including VPI, VCI, encapsulation, service type (PPPoE, IPoE, bridging), ATM settings and ADSL settings. It includes the following sections: “Channel Configuration”...

  • Page 53: Channel Configuration

    | WAN Settings HAPTER Channel Configuration HANNEL ONFIGURATION The Channel Configuration page configures channel operation modes of the ADSL Router. Figure 23: WAN Configuration The following items are displayed on this page: Default Route Selection – Enables the default route to be specified or ◆...
  • Page 54 | WAN Settings HAPTER Channel Configuration VC/MUX (Virtual Circuit Multiplexing) – When using this mode, the ■ communicating hosts agree on the high-level protocol for a given circuit, which tends to reduce fragmentation overhead. This allows a sender to pass each datagram directly to AAL5 for transfer, and requires nothing to be sent besides the datagram and the AAL5 trailer.

  • Page 55: Atm Settings

    | WAN Settings HAPTER ATM Settings selected, the WAN interface IP address is assigned by the remote DHCP server. Local IP address — The IP address of the WAN interface provided ■ by the ISP. Gateway — The IP address of the remote gateway router provided ■...
  • Page 56 | WAN Settings HAPTER ATM Settings VCI (Virtual Channel Identifier) — Adds a VCI entry to the table. ◆ (Range: 32-65535; Default: 35) QoS — Selects packet level Quality of Service (QoS) for the connection. ◆ Options are: UBR (Unspecified Bitrate): Configures a PVC with a Peak Cell Rate ■...

  • Page 57: Adsl Settings

    | WAN Settings HAPTER ADSL Settings ADSL S ETTINGS The ADSL Settings page configures the ADSL modulation type, ADSL2+ related parameters, capabilities and the ADSL tone mask. Figure 25: ATM Settings The following items can be enabled on this page: ADSL Modulation —...
  • Page 58 | WAN Settings HAPTER ADSL Settings ADSL2 — This standard extends the capability of basic ADSL data ■ rates to 12 Mbit/s downstream and 3 Mbit/s upstream (with a mandatory capability of ADSL2 transceivers of 8 Mbit/s downstream and 800 Kbit/s upstream. ADSL2+ —...

  • Page 59: Services

    ERVICES The Advanced Configuration settings for the ADSL Router contain advanced system management configuration settings such as DNS setup, routing configuration, bridging, SNMP and TR-069 settings. The following sections are contained in this chapter: ◆ “DNS Settings” on page 60 “Access Control Lists”...

  • Page 60: Dns Settings

    | Services HAPTER DNS Settings DNS S ETTINGS Sets Domain Name Server (DNS) and Dynamic DNS settings. The Domain Name Server (DNS) implements a human recognizable web DNS S ERVER address to a numerical IP address. DNS can be set automatically or manually.

  • Page 61: Ddns

    | Services HAPTER DNS Settings Dynamic DNS (DDNS) provides users on the Internet with a method to tie DDNS a specific domain name to the unit’s dynamically assigned IP address. DDNS allows your domain name to follow your IP address automatically by changing your DNS records when your IP address changes.
  • Page 62 | Services HAPTER DNS Settings The following parameters apply to the TZO setting. ◆ Email — Specifies your contact email address for the DDNS service. Key — Specifes an encryption key for the DDNS service. ◆ DDNS T YNAMIC ABLE This table displays the configured servers in the DDNS setup.

  • Page 63: Access Control Lists

    | Services HAPTER Access Control Lists CCESS ONTROL ISTS The ADSL Router supports Access Control Lists that filter IP addresses allowed access on the unit's LAN and WAN interfaces. Only traffic from IP addresses in the ACL table are allow access to the ADSL Router. When you select LAN for the ACL “direction,”...

  • Page 64: Wan Acls

    | Services HAPTER Access Control Lists ACL T URRENT ABLE Lists the configured ACLs on the LAN ports. ◆ Select — The number of the entry in the table. Direction — Displays if the ACL is applied to a LAN or WAN interface. ◆...
  • Page 65 | Services HAPTER Access Control Lists Add — Adds the ACL to the ACL Table. ◆ ACL T URRENT ABLE Lists the configured ACLs on the LAN ports. Select — The number of the entry in the table. ◆ Direction — Displays if the ACL is applied to a LAN or WAN interface. ◆...

  • Page 66: Ip/Port Filtering

    | Services HAPTER IP/Port Filtering IP/P ILTERING IP/Port filtering restricts connection parameters to limit the risk of intrusion and defends against a wide array of common hacker attacks. IP/Port filtering allows the unit to permit, deny or proxy traffic through its ports and IP addresses.
  • Page 67 | Services HAPTER IP/Port Filtering Source IP Address — Specifies the source IP address to block or allow ◆ traffic from. Destination IP Address — Specifies the destination IP address to ◆ block or allow traffic from. Subnet Mask — Specifies a subnet mask. ◆...

  • Page 68: Nat/Napt Settings

    | Services HAPTER NAT/NAPT Settings NAT/NAPT S ETTINGS Network Address Translation (NAT) is a standard method of mapping multiple “internal” IP addresses to one “external” IP address on devices at the edge of a network. For the router, the internal (local) IP addresses are the IP addresses assigned to local PCs by the DHCP server, and the external IP address is the IP address assigned to the specified WAN interface.

  • Page 69: Figure 31: Nat - Virtual Servers

    | Services HAPTER NAT/NAPT Settings Figure 31: NAT — Virtual Servers The following items are displayed on this page: Service Type – Sets a name to describe the virtual server service. ◆ Usual Service Name – Select a name from the list of common ■...

  • Page 70: Nat Exclude Ip

    | Services HAPTER NAT/NAPT Settings You can use the Exclude IP feature to block an IP address or range of IP NAT E XCLUDE addresses from accessing WAN interfaces. Figure 32: NAT — Exclude IP The following items are displayed on this page: Interface –...

  • Page 71: Nat Alg And Pass-Through

    | Services HAPTER NAT/NAPT Settings Remote IP Address — Specifies the source IP address on the WAN to ◆ allow access from. Leaving this parameter blank allows access from all traffic. Enable — Checking this box activates the parameters configurated ◆...

  • Page 72: Nat Port Trigger

    | Services HAPTER NAT/NAPT Settings MSN — Enables MSN passthrough. (Default: Enabled) ◆ Port triggering is a way to automate port forwarding in which outbound NAT P RIGGER traffic on predetermined ports (“triggering ports”) causes inbound traffic to specific incoming ports to be dynamically forwarded to the initiating host while the outbound ports are in use.

  • Page 73: Ftp Alg Configuration

    | Services HAPTER NAT/NAPT Settings FTP ALG Configuration specifies a non-standard FTP port for passthrough FTP ALG traffic. The standard port for FTP connections is TCP port 21, and the router ONFIGURATION monitors port 21 to ensure the NAT passthrough of FTP. When the FTP server port is not 21, you must specify the TCP port to ensure NAT passthrough of FTP.

  • Page 74: Quality Of Service

    | Services HAPTER Quality of Service The following items are displayed on this page: Type – Selects the type of mapping to use. Either one-to-one, one-to- ◆ many, many-to-many, or many-to-one. Local Start/End IP – Defines a local IP address pool range. ◆...
  • Page 75 | Services HAPTER Quality of Service The following items are displayed on this page: IP QoS – If enabled, QoS rules will be applied to traffic entering the ◆ Gateway. QoS Policy – Selects Stream-based, 802.1p-based, or DSCP-based ◆ policy. Schedule Mode –...

  • Page 76: Mac Filtering

    | Services HAPTER MAC Filtering MAC F ILTERING MAC based packet filtering enables the router to filter clients based on their physical layer address. Figure 39: MAC Filtering Settings The following items are displayed on this page: Outgoing Default Policy — A default action for MAC addresses not ◆...

  • Page 77: Dmz

    | Services HAPTER DMZ enables a specified host PC on the local network to access the Internet without any firewall protection. Some Internet applications, such as interactive games or videoconferencing, may not function properly behind the router's firewall. By specifying a Demilitarized Zone (DMZ) host, the PC's TCP ports are completely exposed to the Internet, allowing open two-way communication.

  • Page 78: Url Blocking

    | Services HAPTER URL Blocking URL B LOCKING By filtering inbound Uniform Resource Locators (URLs) the risk of compromising the network can be reduced. URLs are commonly used to point to websites. By specifying a URL or a keyword contained in a URL traffic from that site may be blocked.

  • Page 79: Software Forbidden

    | Services HAPTER Software Forbidden OFTWARE ORBIDDEN The Software Forbidden page enables traffic from listed application software to be blocked by the router. Figure 42: Software Forbidden Settings The following items are displayed on this page: Current Forbidden Software List — Software applications that are ◆...

  • Page 80: Dos

    | Services HAPTER Denial of Service (DoS) is an attempt by a hacker to flood an IP address, domain, or server with repeated external communincation requests, effectively saturating the system with an information flood that renders it slow or effectively inoperable for genuine users to access it. DoS attacks are also referred to as non-intrusion attacks, the goal of which is to cripple your system but not steal data.
  • Page 81 | Services HAPTER Whole System Flood: FIN: Prevents a FIN (no more data from ■ sender) flood in which part of a TCP packet from an invalid (or spoofed) IP address floods the network with connection resets. Whole System Flood: UDP: Prevents a flood of large numbers of ■...

  • Page 82: Igmp Proxy Configuration

    | Services HAPTER IGMP Proxy Configuration TCP SynWithData: Prevents the hacker sending a volume of ■ requests for connections that cannot be completed. UDP Bomb: Also called a UDP Flood or packet storm. Prevents the ■ hacker congesting the network by generating a flood of UDP packets between it and the unit using the UDP chargen service (a testing utility that generates a character string for every packet it receives).

  • Page 83: Figure 44: Igmp Proxy Configuration

    | Services HAPTER IGMP Proxy Configuration Figure 44: IGMP Proxy Configuration The following items are displayed on this pages: IGMP Proxy — Enables IGMP proxy. When enabled, the upstream ◆ interface acts as a host interface, sending query messages periodically to the downstream interfaces, sending join and leave messages to the upstream multicast router when a first join or last leave message is received from a downstream interface, and sending membership...

  • Page 84: Rip Configuration

    | Services HAPTER RIP Configuration RIP C ONFIGURATION RIP is an Internet protocol you can set up to share routing table information with other routing devices on your LAN, at your ISP’s location, or on remote networks connected to your network via the ADSL line. Most small home or office networks do not need to use RIP;...

  • Page 85: Arp Binding Configuration

    | Services HAPTER ARP Binding Configuration ARP B INDING ONFIGURATION The router uses its tables to make routing decisions, and uses Address Resolution Protocol (ARP) to forward traffic from one hop to the next. ARP is used to map an IP address to a physical layer MAC address. When an IP frame is received by the router, it first looks up the MAC address corresponding to the destination IP address in the ARP cache.

  • Page 86: Advanced

    DVANCED The Advanced Configuration settings for the ADSL Router contain advanced system management configuration settings. The following sections are contained in this chapter: “Bridge Setting” on page 87 ◆ “Log Setting” on page 88 ◆ “Routing Configuration” on page 89 ◆...

  • Page 87: Bridge Setting

    | Advanced HAPTER Bridge Setting RIDGE ETTING This feature allows you to set the bridge aging time and to enable Spanning Tree. The Spanning Tree Protocol (STP) can be used to detect and disable network loops, and to provide backup links between bridges. This allows a wireless bridge to interact with other bridging devices (that is, an STP- compliant switch, bridge or router) in your network to ensure that only one route exists between any two stations on the network, and provide backup...

  • Page 88: Log Setting

    | Advanced HAPTER Log Setting ETTING The ADSL Router supports a logging process that controls error messages saved to memory. The logged messages serve as a valuable tool for isolating ADSL Router and network problems. The Log Setting page displays the latest messages logged in chronological order.

  • Page 89: Routing Configuration

    | Advanced HAPTER Routing Configuration VENT ABLE Displays the current entries in the System Log table. ◆ Time — Displays the date and time the log entry was created. Index — The number of the log entry. ◆ Type — Displays the source of the log message. ◆...
  • Page 90 | Advanced HAPTER Routing Configuration Subnet Mask — The network mask of the destination subnet. The ◆ default gateway uses a mask of 0.0.0.0. Next Hop — The IP address of the next hop through which traffic will ◆ flow towards the destination subnet. Metric —...

  • Page 91: Upnp

    | Advanced HAPTER UPnP UPnP (Universal Plug and Play) provides inter-connectivity between devices supported by the same standard. UPnP is based on standard Internet protocols, such as TCP/IP, UDP, and HTTP. Figure 50: UPnP The following items are displayed on this page: UPnP —...

  • Page 92: Snmp Protocol Configuration

    | Advanced HAPTER SNMP Protocol Configuration SNMP P ROTOCOL ONFIGURATION Simple Network Management Protocol (SNMP) is a communication protocol designed specifically for managing devices on a network. SNMP is typically used to configure devices for proper operation in a network environment, as well as to monitor them to evaluate performance or detect potential problems.

  • Page 93: System Time Configuration

    | Advanced HAPTER System Time Configuration YSTEM ONFIGURATION The System Time page allows you to manually configure time settings or enable the use of an NTP server. Figure 52: System Time Configuration The following items are displayed on this page: System Time —...

  • Page 94: Other Advanced Configuration

    | Advanced HAPTER Other Advanced Configuration THER DVANCED ONFIGURATION Enables the Half Bridge feature for PPPoE (PPPoA) connections. When the router is set to Half Bridge, it establishes the PPPoE/PPPoA connection with the ISP, then forwards all other traffic to DHCP clients connected to the router.

  • Page 95: Port Mapping

    | Advanced HAPTER Port Mapping APPING Port Mapping supports multiple ports to WAN interfaces and bridging groups. Each group performs as an independent network. You can create up to four groups on the router. Figure 54: Port Mapping Configuration The following items are displayed on this page: WAN –...

  • Page 96: Diagnostics

    IAGNOSTICS The Diagnostics page is used to test the local Ethernet connection, or the WAN connection for the DSL signal and the connection to DSL provider network. This chapter contains the following sections: ◆ “Diagnostic Test” on page 97 “Ping” on page 98 ◆...

  • Page 97: Diagnostic Test

    | Diagnostics HAPTER Diagnostic Test IAGNOSTIC The diagnostic test shows the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides. Figure 55: Diagnostic Test The following items are displayed on this page: Select the Interface —...

  • Page 98: Ping

    | Diagnostics HAPTER Ping The ADSL Router provides the function of “pinging” its own IP address or URL to test for connectivity. Figure 56: Ping The following items are displayed on this page: Host — The host IP address or URL to test for connectivity. ◆...

  • Page 99: Traceroute

    | Diagnostics HAPTER Traceroute RACEROUTE Traceroute discovers the routes that packets take when traveling to a destination. Traceroute works by taking advantage of the error messages generated by routers when a packet exceeds its time-to-live (TTL) value. The traceroute command first sends probe datagrams with the TTL value set at one.

  • Page 100: Figure 59: Traceroute Result

    | Diagnostics HAPTER Traceroute Figure 59: Traceroute Result – 100 –...

  • Page 101: Adsl Tone Diagnostics

    | Diagnostics HAPTER ADSL Tone Diagnostics ADSL T IAGNOSTICS The ADSL page displays diagnostic testing for the ADSL connection. Figure 60: ADSL Tone Diagnostics The following items are displayed on this page: Start — Starts the diagnostics test. ◆ Downstream/Upstream — Displays downstream and upstream ◆...
  • Page 102 | Diagnostics HAPTER ADSL Tone Diagnostics Output Power (dBm) — Displays the output power of the unit in ◆ decibels per milliwatt. Tone Number — Displays the tone number of the ADSL signal. ◆ (Range: 0~255) H.Real — Displays the real part of channel transfer function of each ◆...

  • Page 103: Administration Settings

    DMINISTRATION ETTINGS The Admin pages are used to manage configuration files, system logs, TR- 069 ACS, passwords; and also to update software and reboot the system. This chapter contains the following sections: “Commit/Reboot” on page 104 ◆ “Backup/Restore Settings” on page 105 ◆...

  • Page 104: Commit/Reboot

    | Administration Settings HAPTER Commit/Reboot OMMIT EBOOT Use this page to save the current configuration and reboot the system. Figure 61: Commit/Reboot The following items are displayed on this page: Reboot from — Select the option for router’s configuration: ◆ Save the current configuration —...

  • Page 105: Backup/Restore Settings

    | Administration Settings HAPTER Backup/Restore Settings ACKUP ESTORE ETTINGS The Backup/Restore Settings page allows you to backup current settings to a local file, and load previously saved settings to the unit. Figure 63: Backup/Restore Settings The following items are displayed on this page: ◆...

  • Page 106: Password Setup

    | Administration Settings HAPTER Password Setup ASSWORD ETUP Management access to the ADSL Router is controlled through different levels of user name and password. To protect access to the management interface, you need to configure a new Administrator’s password as soon as possible. If a new password is not configured, then anyone having access to the ADSL Router may be able to compromise the unit's security by entering the default values.

  • Page 107: Upgrade Firmware

    | Administration Settings HAPTER Upgrade Firmware PGRADE IRMWARE You can update the ADSL Router’s firmware by using the Upgrade Firmware facility which allows you to upload new firmware manually by specifying a file path. Make sure the firmware file you want to use is on the local computer by clicking Browse to search for the file to be used for the update.

  • Page 108: Configuration

    | Administration Settings HAPTER TR-069 Configuration TR-069 C ONFIGURATION The Technical Report 069 (TR069) protocol defines a specification for remote management of CPE devices. The protocol uses HTTP for two-way communication between the CPE device and an Auto Configuration Server (ACS), allowing service providers to provide CPE configuration, software upgrades, and other service functions for end-users.
  • Page 109 | Administration Settings HAPTER TR-069 Configuration The following items are displayed on this pages: Defines the Auto Configuration Server parameters. Enable — Enables/disables TR-069 support. (Default: Enabled) ◆ URL — Speceifies the URL required for the CPE to connect to the ACS. ◆...
  • Page 110 | Administration Settings HAPTER TR-069 Configuration Skip MReboot — Specifies whether to send an MReboot event code in ◆ the inform message. Delay — Specifies whether to start TR-069 after a short delay. ◆ Auto-Execution — Specifies whether to automatically start TR-069 ◆...

  • Page 111: Ection

    ECTION PPENDICES This section provides additional information and includes these items: “Troubleshooting” on page 112 ◆ “Hardware Specifications” on page 114 ◆ “Cables and Pinouts” on page 118 ◆ – 111 –...

  • Page 112: A Troubleshooting

    ROUBLESHOOTING IAGNOSING ATEWAY NDICATORS Gateway operation is easily monitored via the LED indicators to identify problems. The table below describes common problems you may encounter and possible solutions. If the solutions in the table fail to resolve the problem, contact technical support for advice. Table 3: LED Troubleshooting Chart Symptom Cause...

  • Page 113: If You Cannot Connect To The Internet

    | Troubleshooting PPENDIX If You Cannot Connect to the Internet ANNOT ONNECT TO THE NTERNET Check that your computer is properly configured for TCP/IP. For more ◆ information, see “Configuring the TCP/IP Protocols” on page Make sure the correct network adapter driver is installed for your PC ◆...

  • Page 114: Specifications

    ARDWARE PECIFICATIONS HYSICAL HARACTERISTICS 1 RJ-11 VDSL line (to phone jack in the wall) ORTS 1 RJ-45 10/100BASE-TX (Ethernet connection to PC) 1 USB (optional connection to PC) RJ-45 connector, auto MDI/X pinout detection THERNET NTERFACE 10BASE-T: 100-ohm, UTP cable; Category 3 or better 100BASE-TX: 100-ohm, UTP cable;...

  • Page 115: Software Features

    | Hardware Specifications PPENDIX Software Features OFTWARE EATURES Support up to 8 ATM PVCs ATM F EATURES Support ATM Forum UNI 3.1/4.0 PVC Support UBR, CBR, and rt-VBR and nrt-VBR service classes Provide ATM layer functionality Support up to 8 PVCs – traffic shaping (CBR, UBR, rt/nrt-VBR) Support PPPoA (RFC2364) Support MPoA functionality (RFC2684) Support IP over ATM (IPoA)

  • Page 116: Standards

    | Hardware Specifications PPENDIX Standards User authentication for PPP (PAP/CHAP) DDoS (Dynamic DoS) Protection IREWALL Filtering – IP Filtering, MAC Filtering, URL Filtering ACL (Access Control List) VPN (IPSec, PPTP, L2TP) pass-through Software Forbidden Access administration ANAGEMENT Web-based configuration - HTTP server System configuration backup and restore SNMP Support (V.1 and V.2C) –...

  • Page 117: Compliances

    | Hardware Specifications PPENDIX Compliances OMPLIANCES FCC Part 15B Class B MISSIONS FCC Part 68 CE Mark RoHS compliant NVIRONMENTAL EN60950-1 :2006+A11 :2009 AFETY – 117 –...

  • Page 118: Ables And Pinouts

    ABLES AND INOUTS WISTED ABLE SSIGNMENTS For 10/100BASE-TX connections, a twisted-pair cable must have two pairs of wires. For 1000BASE-T connections the twisted-pair cable must have four pairs of wires. Each wire pair is identified by two different colors. For example, one wire might be green and the other, green with white stripes.

  • Page 119: 10/100Base-Tx Pin Assignments

    | Cables and Pinouts PPENDIX 10/100BASE-TX Pin Assignments 10/100BASE-TX P SSIGNMENTS Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45 connections: 100-ohm Category 3 or better cable for 10 Mbps connections. Also be sure that the length of any twisted-pair connection does not exceed 100 meters (328 feet).

  • Page 120: Crossover Wiring

    | Cables and Pinouts PPENDIX Crossover Wiring ROSSOVER IRING If the twisted-pair cable is to join two ports and either both ports are labeled with an “X” (MDI-X) or neither port is labeled with an “X” (MDI), a crossover must be implemented in the wiring. (When auto-negotiation is enabled for any RJ-45 port on this gateway, you can use either straight- through or crossover cable to connect to any device type.) Figure 69: Crossover Wiring...

  • Page 121: Port

    | Cables and Pinouts PPENDIX RJ-11 Port RJ-11 P Standard telephone RJ-11 connectors and cabling can be found in several common wiring patterns. These six-pin connectors can accommodate up to three wire-pairs (three telephone lines), but usually only one or two pairs of conductor pins and wires are implemented.

  • Page 122: Glossary

    LOSSARY IEEE 802.3-2005 specification for 10 Mbps Ethernet over two pairs of 10BASE-T Category 3 or better UTP cable. IEEE 802.3-2005 specification for 100 Mbps Fast Ethernet over two pairs of 100BASE-TX Category 5 or better UTP cable. IEEE 802.3ab specification for 1000 Mbps Gigabit Ethernet over four pairs 1000BASE-T of Category 5 or better UTP cable.
  • Page 123 LOSSARY International Telecommunication Union Telecommunication Standardization Section of ITU ITU-T Local Area Network: A group of interconnected computers and support devices. The physical layer address used to uniquely identify network nodes. MAC A DDRESS Maximum Transfer Unit. The maximum transfer unit for traffic crossing this device.
  • Page 124 LOSSARY A connector for twisted-pair wiring. RJ-45 C ONNECTOR A filter to separate DSL signals from POTS signals to prevent mutual PLITTER interference. Simple Network Time Protocol: SNTP allows a device to set its internal SNTP clock based on periodic updates from a Network Time Protocol (NTP) server.

  • Page 125: Index

    NDEX UMERICS 10/100BASE-TX pin assignments Ethernet 100BASE-TX 10BASE-T factory defaults, resetting front panel ACLs ADSL capability ADSL modulation ADSL settings Gateway ADSL tone diagnostics features AnnexL option AnnexM option ARP table ATM settings hardware, description backup/restore settings IGMP proxy configuration bridge configuration installation buttons...
  • Page 126 NDEX power connector powering on problems, troubleshooting rear panel Reset button RIP configuration RJ-11 pin assignments port RJ-45 connector pins RJ-45 port routing configuration SNMP protocol configuration specifications component environmental power specifications, hardware standards IEEE ITU-T straight-through cables system indicators requirements system log TCP/IP, PC configuration...
  • Page 127 SMC NETWORKS TECHNICAL SUPPORT Headquarters & From Singapore in English and (Mon.-Fri. 9 to 5 Sub-Sahara Africa Office Tel: +65-63387667, Ext. 4 No. 1, Creation Rd. III From the United Arab Emirates in English (Sun.-Thu. 9 to 6 Hsinchu Science Park...

Table of Contents
