Page 1: User Guide
USER GUIDE EZ Switch 10/100/1000 16/24-Port Gigabit Ethernet Plus Switch SMCGS1610/SMCGS2410... - Page 2 EZ Switch 10/100/1000 User Guide From SMC’s EZ line of low-cost workgroup LAN solutions No. 1, Creation Road III, Hsinchu Science Park, 30077, Taiwan, R.O.C. TEL: +886 3 5638888 SMCGS1610/SMCGS2410 Fax: +886 3 6686111 E112013-AP-R02...
- Page 3 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC.
-
Page 4: Warranty And Product Registration
ARRANTY AND RODUCT EGISTRATION To register SMC products and to review the detailed warranty statement, please refer to the Support Section of the SMC Website at http://www.smc.com. – –... -
Page 5: Ompliances And Safety
OMPLIANCES AND AFETY TATEMENTS FCC - C LASS This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 6: About This Guide
BOUT UIDE URPOSE This guide details the hardware features of the switch, including the physical and performance-related characteristics, and how to install the switch. UDIENCE The guide is intended for use by network administrators who are responsible for installing and setting up network equipment; consequently, it assumes a basic working knowledge of LANs (Local Area Networks). - Page 7 BOUT UIDE 2013 R CTOBER EVISION This is the first revision of this guide. – 7 –...
-
Page 8: Table Of Contents
ONTENTS ARRANTY AND RODUCT EGISTRATION OMPLIANCES AND AFETY TATEMENTS BOUT UIDE ONTENTS NTRODUCTION Overview Features ARDWARE ESCRIPTION Front Panel Port and System Status LEDs RJ-45 Ports Smart Button Rear Panel AC Power Socket NSTALLING THE WITCH Package Contents Precautions Safety Requirements Location Requirements Installation Desktop Installation... - Page 9 ONTENTS Connecting Network Devices Cabling Guidelines Connecting to PCs, Servers, Hubs and Switches ROUBLESHOOTING Diagnosing Switch Indicators The Power LED is Off The Link/Act LED is Off when a Device is Connected to the Corre- sponding Port Power and Cooling Problems Installation PECIFICATIONS Physical Characteristics...
-
Page 10: Introduction
NTRODUCTION VERVIEW The SMCGS1610 and SMCGS2410 are the first available unmanaged switches that can be transformed into a smart switch with the use of a single button. DHCP prevention combined with loopback detection and prevention, improves the network environment and reduces network maintenance costs. The switches also provide DoS attack protection, minimizing virus attacks and increasing network uptime. -
Page 11: Features
HAPTER Overview EATURES MART UTTON The SMCGS1610 and SMCGS2410 are the first available switches that use a single button to give your unmanaged switch smart switch capability. Figure 1: Push to Smart Button DHCP P REVENTION DHCP Prevention protects your company’s network DHCP Server. When the Smart button is pressed in, it enables a DHCP port restriction feature. - Page 12 | Introduction HAPTER Overview OOPBACK ETECTION AND REVENTION When a loop occurs at a port, the switch will Block the loop port, automatically protecting the switch. ■ Flash the port LED twice every second. ■ Turn the Loop LED on red. ■...
- Page 13 | Introduction HAPTER Overview DOS A TTACK ROTECTION The switches can detect multiple DOS attack scenarios and initiate appropriate protection algorithms. DOS attack scenarios that can be protected against are: DoS - Land Attack ■ DoS - IP Spoofing Attack ■...
- Page 14 | Introduction HAPTER Overview LED indicators for displaying power, link, speed, activity and loop disabled. ◆ Desktop and rack-mountable steel case. ◆ Internal power supply. ◆ – 14 –...
-
Page 15: Description

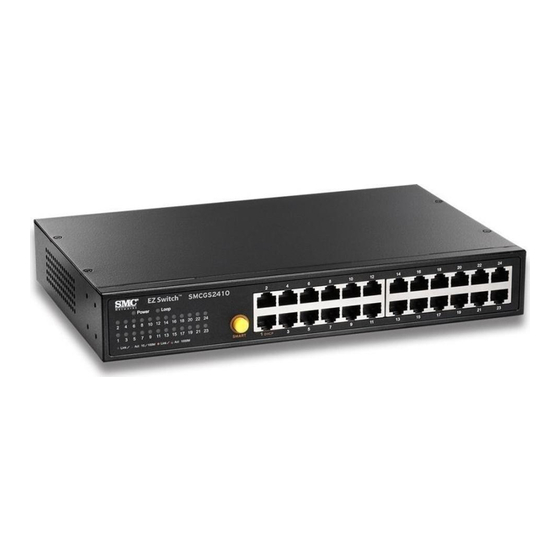

ARDWARE ESCRIPTION This chapter describes the front panel, rear panel, and LED indicators of the switch. The SMCGS1610 and SMCGS2410 only differ in the number of ports. All figures in this guide are of the SMCGS2401. RONT ANEL The front panel of SMCGS2401 consists of switch LED indicators, 24 10/100/ 1000 Mbps RJ-45 ports, and a Smart button. -
Page 16: Ports
| Hardware Description HAPTER Front Panel Table 1: System and Port Status LEDs (Continued) Condition Status Loop On Red The switch has detected a loop condition and disabled the appropriate port. When the loop clears, the LED will turn off. The switch has not detected a loop condition or the current loop condition has cleared. -
Page 17: Rear Panel
| Hardware Description HAPTER Rear Panel port LED twice every second. The Loop LED will also turn on when a loop condition exists. When the loop condition has been cleared, the Loop LED will turn off and the port LED will stop flashing. IGMP Snooping V1/V2 - With IGMP snooping turned on, multicast traffic is ◆... -
Page 18: Installing The Switch
SMC distributor. Also be sure you have all the necessary tools and cabling before installing the switch. ACKAGE ONTENTS The following contents should be found in your package: One SMCGS1610 or SMCGS2410 Switch ◆ Power Cord ◆ This User Guide ◆... -
Page 19: Precautions
| Installing the Switch HAPTER Precautions RECAUTIONS To ensure a long-term and stable performance of the switch, pay attention to the following before installation. AFETY EQUIREMENTS Before cleaning the switch, disconnect the power supply. Do not clean the ◆ switch using a wet cloth, and never use any other liquid for cleaning. Take waterproof measures during storage, transportation and operation of ◆... -
Page 20: Installation
| Installing the Switch HAPTER Installation Position the switch away from water and moisture sources, be sure to ◆ provide an acceptable temperature and humidity operating environment. NSTALLATION This switch can be either installed in a standard 19-inch mountable rack or located on a desktop. -
Page 21: Rack Installation
| Installing the Switch HAPTER Installation Figure 6: Attaching Rubber Feet Upturn the switch and set in the desired location, making sure there is enough ventilation space on all sides for proper air flow Connect the switch to a power source with the provided power cord. See “Powering On”... -
Page 22: How To Connect To Ac Power
| Installing the Switch HAPTER Installation Figure 7: Attaching Brackets Use suitable screws (not provided) to secure the brackets to the rack, as illustrated in the following figure. Figure 8: Mounting the Switch Connect the switch to a power source with the provided power cord. See “Powering On”... -
Page 23: Powering On
AC supply source and back panel power input connector. OWERING The SMCGS1610 and SMCGS2410 switches are powered by connecting to an AC power supply using a power cord. When powering on the switch, it automatically initializes and the LED indicators respond as follows:... -
Page 24: Connecting Network Devices
| Installing the Switch HAPTER Connecting Network Devices All of the LED indicators flash momentarily for one second, which represents a resetting of the system. The Power LED indicator turns on green. ONNECTING ETWORK EVICES The switches are designed to be connected to 10, 100, or 1000 Mbps network cards in PCs and servers, as well as to other switches and hubs. -
Page 25: A Troubleshooting
ROUBLESHOOTING IAGNOSING WITCH NDICATORS OWER Make sure the AC power cord is connected to the switch and power source ◆ properly. Make sure the power source is ON. ◆ FF WHEN A EVICE IS ONNECTED TO THE ORRESPONDING Make sure that the cable connectors are firmly plugged into the switch and ◆... -
Page 26: Installation
| Troubleshooting PPENDIX Installation NSTALLATION Verify that all system components have been properly installed. If one or more components appear to be malfunctioning (such as the power cord or network cabling), test them in an alternate environment where you are sure that all the other components are functioning properly. -
Page 27: Specifications
PECIFICATIONS HYSICAL HARACTERISTICS TANDARDS IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T OPOLOGY Star ROTOCOL CSMA/CD RANSFER Ethernet: 10 Mbps (half/full duplex) Fast Ethernet: 100 Mbps (half/full duplex) Gigabit Ethernet: 1000 Mbps (full duplex) ETWORK EDIA ABLE 10BASE-T: UTP Category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 STP (maximum 100 m) 100BASE-TX: UTP Category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 STP (maximum 100 m) - Page 28 100BASE-TX: 148810 pps/port 1000BASE-T: 1488100 pps/port WITCHING ATABASE 16K MAC address entries UFFER EMORY Internal Memory: 64 KB Flash: 2 MB WITCHING APACITY SMCGS1610: 32 Gbps SMCGS2410: 48 Gbps OWER DAPTER SMCG1601/2401: 100 ~240 V, 50-60 Hz – 28 –...
- Page 29 | Specifications PPENDIX Physical Characteristics IMENSIONS SMCGS1610: 28.0 x 18.0 x 4.4 cm (11.0 x 7.1 x 1.73 in.) SMCGS2410: 28.0 x 18.0 x 4.4 cm (11.0 x 7.1 x 1.73 in.) EIGHT SMCGS1610: 1.54 Kg (3.54 lbs) SMCGS2410: 1.66 Kg (3.65 lbs)
- Page 30 | Specifications PPENDIX Physical Characteristics MISSIONS FCC Class A, EN55022/EN61000-3-2/3 AFETY LVD (EN60950) – 30 –...
- Page 32 #10-04, Realty Centre Singapore 079716 Tel: +65-63387667 Fax: +65-63387767 www.smc-asis.com www.smcnetworks.co.kr Declaration of Conformity (DoC) can be obtained from www.smc.com -> support -> download SMCGS1610/SMCGS2410 www.smc.com 150200062800A R02 20 Mason • Irvine, CA 92618 • Phn: 949-679-8000 • www.smc.com...
