Web – Click Port, LACP, Port Internal Information. Select a port channel to display
the corresponding information.

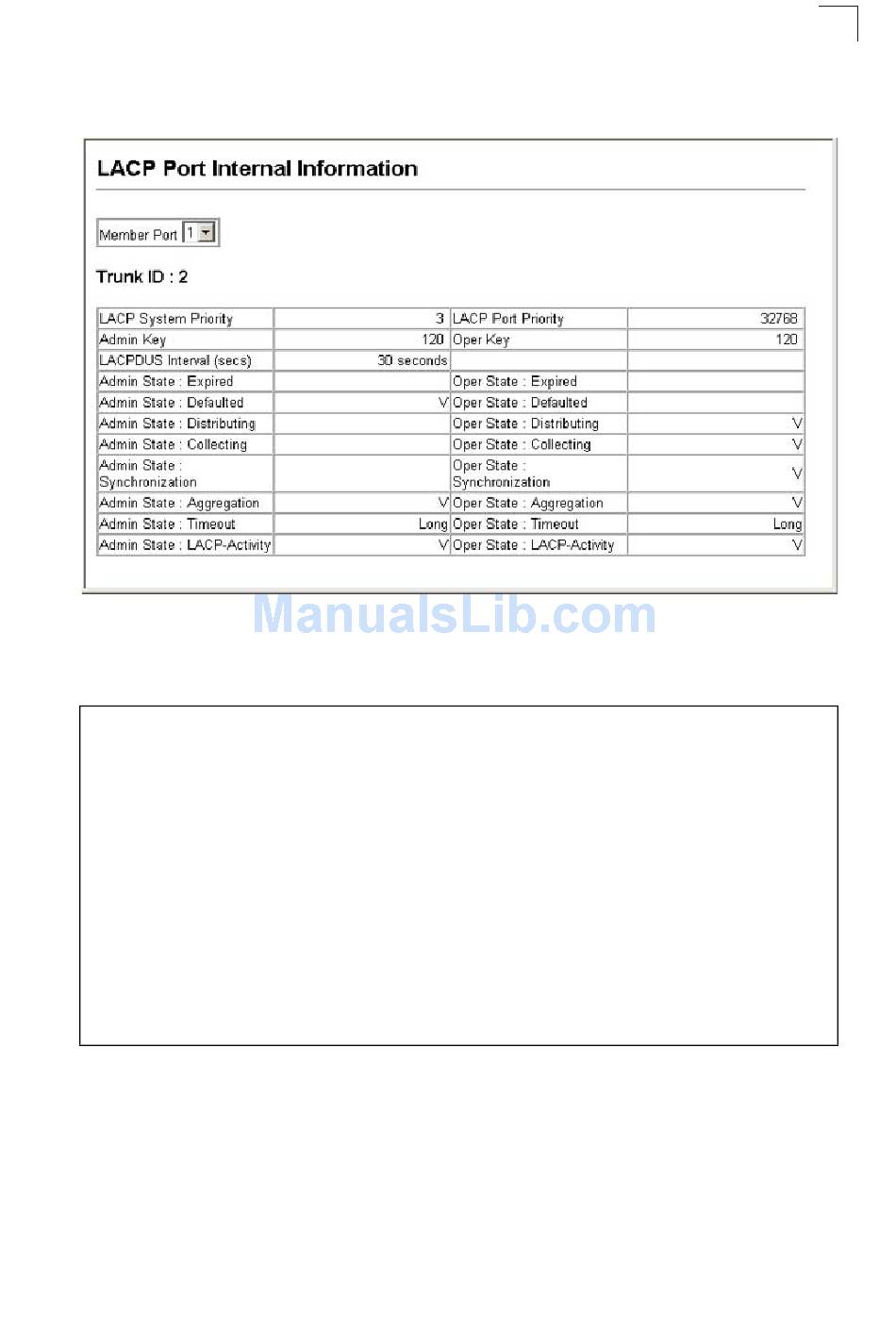

Figure 3-45. Displaying LACP Port Internal Information

CLI – The following example displays the LACP configuration settings and
operational state for the local side of port channel 1.
Console#show lacp 1 internal
Channel group : 1
-------------------------------------------------------------------------
Oper Key : 4
Admin Key : 0
Eth 1/1
-------------------------------------------------------------------------
LACPDUs Internal : 30 sec
LACP System Priority : 32768
LACP Port Priority : 32768
Admin Key : 4
Oper Key : 4
Admin State : defaulted, aggregation, long timeout, LACP-activity
Oper State : distributing, collecting, synchronization, aggregation,
long timeout, LACP-activity
. .
.
Console#
