CLI – This example modifies the settings for multicast filtering, and then displays the
current status.
Console(config)#ip igmp snooping
Console(config)#ip igmp snooping querier
Console(config)#ip igmp snooping query-count 10
Console(config)#ip igmp snooping query-interval 100
Console(config)#ip igmp snooping query-max-response-time 20
Console(config)#ip igmp snooping query-time-out 300
Console(config)#ip igmp snooping version 2
Console(config)#exit
Console#show ip igmp snooping
Service status
Querier status
Query count
Query interval
Query max response time : 20 sec
Router port expire time : 300 sec
IGMP snooping version
Console#

Displaying Interfaces Attached to a Multicast Router

Multicast routers that are attached to ports on the switch use information obtained
from IGMP, along with a multicast routing protocol such as DVMRP or PIM, to
support IP multicasting across the Internet. These routers may be dynamically
discovered by the switch or statically assigned to an interface on the switch.
You can use the Multicast Router Port Information page to display the ports on this
switch attached to a neighboring multicast router/switch for each VLAN ID.
Command Attributes
• VLAN ID – ID of configured VLAN (1-4094).
• Multicast Router List – Multicast routers dynamically discovered by this switch or
those that are statically assigned to an interface on this switch.
Web – Click IGMP Snooping, Multicast Router Port Information. Select the required
VLAN ID from the scroll-down list to display the associated multicast routers.

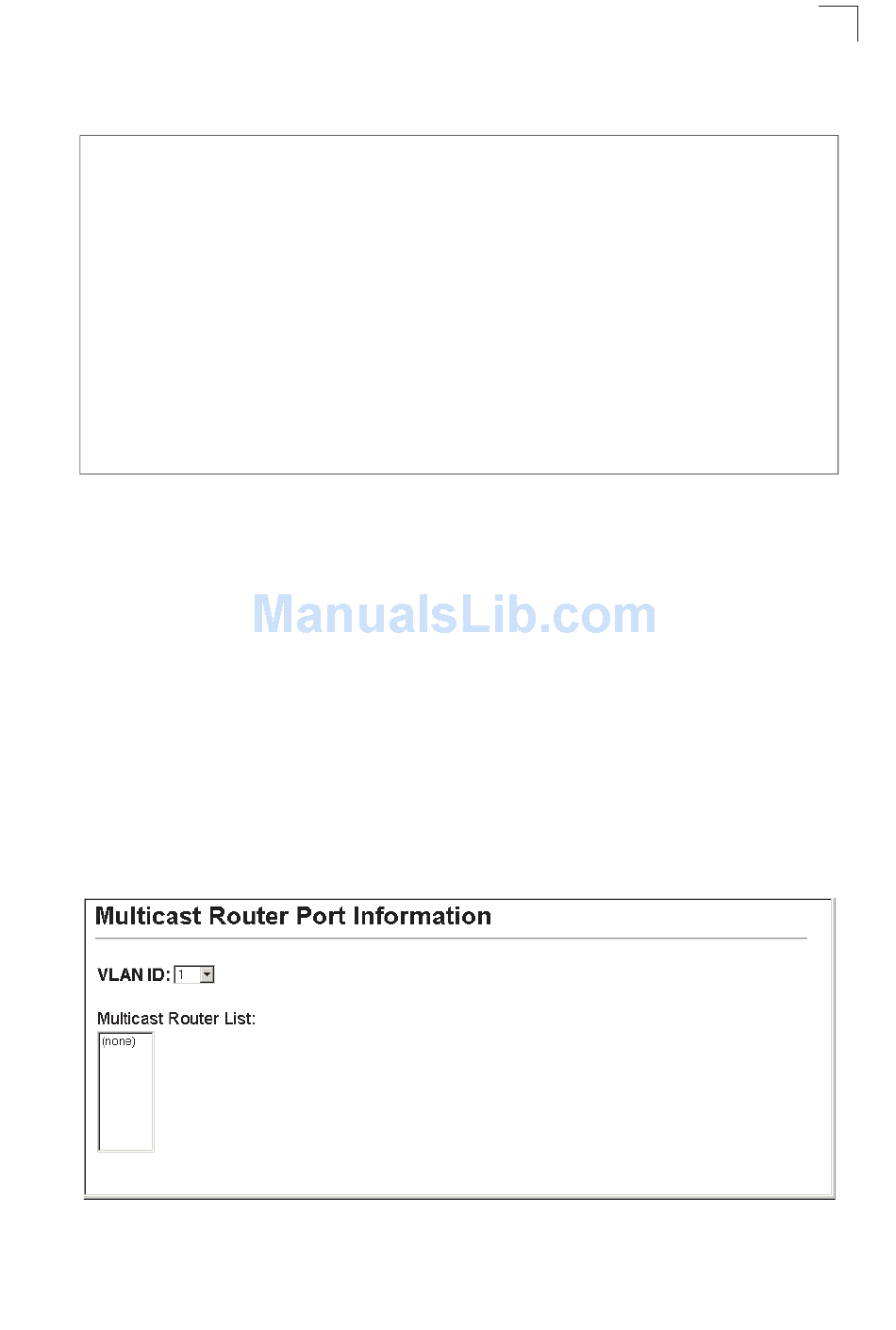

Figure 3-83. Displaying Multicast Router Port Information

: Enabled
: Enabled
: 10
: 100 sec
: Version 2
