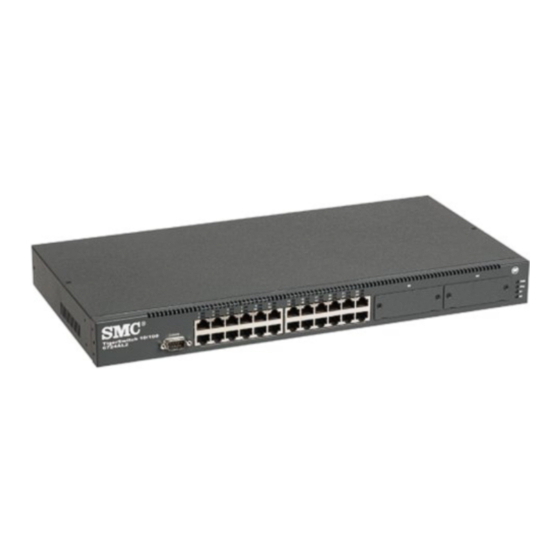

TigerSwitch 10/100
24-Port Fast Ethernet Switch
◆ 24 10BASE-T/100BASE-TX ports
◆ Optional 1000BASE-X or 100BASE-FX modules
◆ 8.8 Gbps of aggregate bandwidth
◆ Non-blocking switching architecture
◆ Spanning Tree Protocol
◆ Up to four port trunks
◆ RADIUS and TACACS+ authentication
◆ Rate limiting for bandwidth management
◆ QoS support for four-level priority
◆ Full support for VLANs with GVRP
◆ IP Multicasting with IGMP Snooping
◆ Manageable via console, Web, SNMP/RMON
Installation Guide
SMC6724AL2
Advertisement
Table of Contents
Related Manuals for SMC Networks SMC6724AL2
Summary of Contents for SMC Networks SMC6724AL2
-
Page 1: Installation Guide
◆ Up to four port trunks ◆ RADIUS and TACACS+ authentication ◆ Rate limiting for bandwidth management ◆ QoS support for four-level priority ◆ Full support for VLANs with GVRP ◆ IP Multicasting with IGMP Snooping ◆ Manageable via console, Web, SNMP/RMON Installation Guide SMC6724AL2... - Page 3 TigerSwitch 10/100 Installation Guide From SMC’s Tiger line of feature-rich workgroup LAN solutions 38 Tesla Irvine, CA 92618 Phone: (949) 679-8000 October 2003 Pub. # 150200037800A...
- Page 4 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC.
-
Page 5: Limited Warranty
IMITED ARRANTY Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. - Page 6 * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase. SMC Networks, Inc. 38 Tesla Irvine, CA 92618...
-
Page 7: Industry Canada - Class A
1. Wear an anti-static wrist strap or take other suitable measures to prevent electro- static discharge when handling this equipment. 2. When connecting this switch to a power outlet, connect the field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards. - Page 8 OMPLIANCES EC Conformance Declaration - Class A SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí, Barcelona, Spain. This information technology equipment complies with the requirements of the Council Directive...
-
Page 9: Japan Vcci Class A
Japan VCCI Class A Taiwan BSMI Class A Australia AS/NZS 3548 (1995) - Class A SMC contact for products in Australia is: SMC Communications Pty. Ltd. Suite 18, 12 Tryon Road, Lindfield NSW2070, Phone: 61-2-94160437 Fax: 61-2-94160474 OMPLIANCES... -
Page 10: Underwriters Laboratories Compliance Statement
OMPLIANCES Safety Compliance Warning: Fiber Optic Port Safety CLASS I LASER DEVICE Avertissment: Ports pour fibres optiques - sécurité sur le plan optique DISPOSITIF LASER DE CLASSE I Warnhinweis: Faseroptikanschlüsse - Optische Sicherheit LASERGER ÄT DER KLASSE I Underwriters Laboratories Compliance Statement Important! Before making connections, make sure you have the correct cord set. - Page 11 Wichtige Sicherheitshinweise (Germany) 1. Bitte lesen Sie diese Hinweise sorgfältig durch. 2. Heben Sie diese Anleitung für den späteren Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie keine Flüssigoder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung. 4.
- Page 12 OMPLIANCES viii...
-
Page 13: Table Of Contents
Overview ..........1-1 Switch Architecture ........1-2 Management Options . - Page 14 Desktop or Shelf Mounting ......3-6 Installing an Optional Module into the Switch ....3-7 Connecting to a Power Source .
- Page 15 Troubleshooting ....... . . A-1 Diagnosing Switch Indicators ....... . . A-1 Power and Cooling Problems .
- Page 16 ABLE OF ONTENTS Ordering Information ......D-1 Glossary Index...
- Page 17 It brings order to poorly performing networks by segregating them into separate broadcast domains with IEEE 802.1Q compliant VLANs, and empowers multimedia applications with multicast switching and CoS services. Console Port Figure 1-1. SMC6724AL2 Front and Rear Panels IGER WITCH ™ 10/100 (SMC6724AL2) contains 24 10BASE-T /...
-
Page 18: About The Tigerswitch 10/100
SNMP applications. To manage the switch, you can make a direct connection to the RS-232 console port (out-of-band), or you can manage the switch through a network connection (in-band) using Telnet, the on-board Web agent, or Windows-based network management software. -
Page 19: Description Of Hardware
Description of Hardware RJ-45 Ports The switch base unit contains 24 10BASE-T / 100BASE-TX RJ-45 ports. All of these ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. (See “10BASE-T/100BASE-TX Pin Assignments”... -
Page 20: Status Leds
BOUT THE IGER WITCH Status LEDs The LEDs, which are located on the front panel for easy viewing, are shown below and described in the following table. Condition Base Unit Ports 1~24 Flashing Amber (Link/Act) Flashing Green Module Ports M1, M2 Flashing Amber Flashing Green 10/100... - Page 21 Figure 1-3. System LEDs Table 1-2. System Status LEDs Condition On Green Diag On Green Flashing Green On Amber ESCRIPTION OF Diag Diagnostic Test Indicator System Status LEDs Status The unit’s internal power supply is operating normally. The unit has no power connected. The system diagnostic test has completed successfully.
-
Page 22: Optional Media Extender Modules
BOUT THE IGER WITCH Optional Media Extender Modules Optional 10/100/1000BASE-T Module (SMC6824GT) 10/100/1000BASE-T Gigabit Module SMC6824GT Figure 1-4. Single-Port 1000BASE-T Gigabit Module Using Category 5, 5e, or 6 twisted-pair cable you can connect to another device up to 100 m (328 ft) away. The 1000BASE-T module operates at 10/100/1000 Mbps. -
Page 23: Optional 100Base-Fx Module (Smc6824Fmsc)
100BASE-FX module is fixed to operate at 100 Mbps full duplex, and supports auto-negotiation for flow control. This module is fitted with an SC connector, but you can attach an ST plug to the switch using the SC-ST Converter (Part Number: 99-012034-091). -
Page 24: Power Supply Receptacle
Caution: Install only 5 V GBIC transceivers into the module slots. Power Supply Receptacle The power receptacle is located on the rear panel of the switch. The standard power receptacle is for the AC power cord. Figure 1-8. Power Supply Receptacle... -
Page 25: Features And Benefits
Features and Benefits Connectivity ◆ 24 dual-speed ports for 10 or 100 Mbps Ethernet connections ◆ Auto-negotiation enables each RJ-45 port to automatically select the optimum communication mode (half or full duplex) if this feature is supported by the attached device; otherwise the port can be configured manually ◆... -
Page 26: Management
BOUT THE IGER WITCH ◆ Filtering and forwarding at line speed ◆ Desktop or rack-mountable Management ◆ “At-a-glance” LEDs for easy troubleshooting ◆ Management agent: • Supports Telnet, SNMP and Web-based interface • Manages switch in-band or out-of-band 1-10 10/100... -
Page 27: Network Planning
For Ethernet, there may be up to four hubs between any pair of stations; for Fast Ethernet, the maximum is two. This is known as the hop count. However, a switch turns the hop count back to zero. So subdividing the network into smaller and more manageable segments, and linking them to the larger network by means of a switch, removes this limitation. -
Page 28: Application Examples
Ethernet or Fast Ethernet hub or switch. In the figure below, this switch is operating as a collapsed backbone for a small LAN. It is providing dedicated 10 Mbps full-duplex connections to workstations and 100 Mbps full-duplex connections to power users and servers. -
Page 29: Network Aggregation Plan
Network Aggregation Plan With 26 parallel bridging ports (i.e., 26 distinct collision domains), this switch can collapse a complex network down into a single efficient bridged node, increasing overall bandwidth and throughput. In the figure below, the 10BASE-T/100BASE-TX ports on the switch are providing 100 Mbps connectivity for up to 24 segments. -
Page 30: Remote Connection With Fiber Cable
A 100 Mbps multimode fiber (MMF) link can run up to 2 km, and a 100 Mbps single-mode fiber (SMF) link can run as far as 20 km. This allows the switch to serve as a collapsed backbone, providing direct connectivity for a widespread LAN. -
Page 31: Making Vlan Connections
VLANs, ports can either be assigned to one specific group or to all groups. Port-based VLANs are suitable for small networks. A single switch can be easily configured to support several VLAN groups for various organizational entities (such as Finance and Marketing). -
Page 32: Application Notes
1. Full-duplex operation only applies to point-to-point access (such as when a switch is attached to a workstation, server or another switch). When the switch is connected to a hub, both devices must operate in half-duplex mode. 2. Avoid using flow control on a port connected to a hub unless it is actually required to solve a problem. -
Page 33: Installing The Switch
NSTALLING THE Selecting a Site TigerSwitch 10/100 units can be mounted in a standard 19-inch equipment rack or on a flat surface. Be sure to follow the guidelines below when choosing a location. ◆ The site should: • be at the center of all the devices you want to link and near a power outlet. -
Page 34: Ethernet Cabling
NSTALLING THE WITCH Ethernet Cabling To ensure proper operation when installing the switch into a network, make sure that the current cables are suitable for 10BASE-T or 100BASE-TX operation. Check the following criteria against the current installation of your network: •... -
Page 35: Equipment Checklist
◆ SMC Warranty Registration Card—be sure to complete and return to Optional Rack-Mounting Equipment If you plan to rack-mount the switch, be sure to have the following equipment available: ◆ Four mounting screws for each device you plan to install in a rack—these are not included... -
Page 36: Mounting
“Installing an Optional Module into the Switch” on page 3-7. Rack Mounting Before rack mounting the switch, pay particular attention to the following factors: ◆ Temperature: Since the temperature within a rack assembly may be... - Page 37 Figure 3-3. Installing the Switch in a Rack 3. If installing a single switch only, turn to “Connecting to a Power Source” at the end of this chapter. 4. If installing multiple switches, mount them in the rack, one below the other, in any order.
-
Page 38: Desktop Or Shelf Mounting
2. Set the device on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for proper air flow. 3. If installing a single switch only, go to “Connecting to a Power Source” at the end of this chapter. -
Page 39: Installing An Optional Module Into The Switch
3. Before opening the package that contains the module, touch the bag to the switch casing to discharge any potential static electricity. Also, it is recommended to use an ESD wrist strap during installation. 4. Remove the module from the anti-static shielded bag. -
Page 40: Connecting To A Power Source
NSTALLING THE WITCH Connecting to a Power Source To connect a device to a power source: 1. Insert the power cable plug directly into the receptacle located at the back of the device. 2. Plug the other end of the cable into a grounded, 3-pin socket. Note: For International use, you may need to change the AC line cord. -
Page 41: Connecting To The Console Port
Connecting to the Console Port The DB-9 serial port on the switch’s front panel is used to connect to the switch for out-of-band console configuration. The on-board menu-driven configuration program can be accessed from a terminal or a PC running a terminal emulation program. - Page 42 NSTALLING THE WITCH 3-10...
-
Page 43: Making Network Connections
Network card ports in PCs and servers do not contain an internal wiring crossover, these are known as straight-through (MDI) ports. Therefore, most switch and hub ports implement a built-in crossover - known as fixed crossover (MDI-X) ports - so that they can be connected to PCs and servers using standard straight-through cable. -
Page 44: Connecting To Pcs, Servers, Hubs And Switches
AKING ETWORK have an MDI port, so that they can connect to another switch’s/hub’s MDI-X port using straight-through cable. To connect between two switches/hubs that only have fixed MDI-X ports, the wiring crossover must be implemented in the cable - known as a crossover cable. -
Page 45: Wiring Closet Connections
1. Attach one end of a patch cable to an available port on the switch, and the other end to the patch panel. 2. If not already in place, attach one end of a cable segment to the back of the patch panel where the punch-down block is located, and the other end to a modular wall outlet. -
Page 46: Fiber Optic Devices
AKING ETWORK 3. Label the cables to simplify future troubleshooting. SMC TigerSwitch 10/100 Figure 4-2. Wiring Closet Connections Fiber Optic Devices An optional slide-in 100BASE-FX module can be used for backbone and long distance connections. Each multimode fiber optic port requires 50/125 or 62.5/125 micron multimode fiber optic cabling with an SC connector at both ends. - Page 47 3. Connect one end of the cable to the SC port on the switch and the other end to the SC port on the other device. Since SC connectors are keyed, the cable can be attached in only one orientation.
-
Page 48: Connectivity Rules
AKING ETWORK 4. As a connection is made, check the Activity LED on the switch’s front panel for the corresponding module to be sure that the connection is valid. Note: If you use the optional SC-ST Converter, be sure to connect the converter’s Tx (Rx) port to the Rx (Tx) port on the other device. -
Page 49: 1000 Mbps Gigabit Ethernet Collision Domain
1000BASE-T is a simple test of the cable installation to be sure that it complies with the IEEE 802.3ab standards. 1000 Mbps Gigabit Ethernet Collision Domain Type Cat. 5, 5e, or 6 100-ohm UTP 10/100 Mbps Ethernet Collision Domain Maximum 10/100 Mbps Ethernet Cable Distance Type 10BASE-T 100BASE-TX Category 5 or better 100-ohm UTP or... -
Page 50: Cable Labeling And Connection Records
• Note the length of each cable and the maximum cable length supported by the switch ports. • For ease of understanding, use a location-based key when assigning prefixes to your cable labeling. -
Page 51: Troubleshooting
• Verify that the switch and attached device are powered on. • Be sure the cable is plugged into both the switch and corresponding device. • Verify that the proper cable type is used and its length does not exceed specified limits. -
Page 52: Power And Cooling Problems
Then verify that you entered the correct IP address. Also, be sure the port through which you are connecting to the switch has not been disabled. If it has not been disabled, then check the network cabling that runs between your remote location and the switch. -
Page 53: Cables
Specifications Cable 10BASE-T 100BASE-TX Cat. 5 or better 100-ohm 100BASE-FX 50/125 or 62.5/125 micron 100BASE-FX 9/125 micron core 1000BASE-T 1000BASE-SX 50/125 or 62.5/125 micron 1000BASE-LX 9/125 micron SMF Fiber Diameter 62.5/125 micron 50/125 micron MMF Note: If you need to connect to a device with 62.5/125 micron cable that has ST-type connectors, SMC provides an optional SC-ST Converter (Part Number: 99-012034-091). -
Page 54: Twisted-Pair Cable And Pin Assignments
ABLES Twisted-Pair Cable and Pin Assignments Caution: DO NOT plug a phone jack connector into any RJ-45 port. Use only twisted-pair cables with RJ-45 connectors that conform with FCC standards. For 100BASE-TX/10BASE-T connections, a twisted-pair cable must have two pairs of wires. Each wire pair is identified by two different colors. For example, one wire might be green and the other, white with green stripes. -
Page 55: Straight-Through Wiring
1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3, and 6 at the other end of the cable. When using any RJ-45 port on this switch, you can use either straight-through or crossover cable.. Input Receive Data +... -
Page 56: Crossover Wiring
“X” (MDI-X) or neither port is labeled with an “X” (MDI), a crossover must be implemented in the wiring. (When auto-negotiation is enabled for any RJ-45 port on this switch, you can use either straight-through or crossover cable to connect to any device type.) -
Page 57: 1000Base-T Cable Requirements
1000BASE-T MDI and MDI-X Port Pinouts MDI Signal Name Bi-directional Data One Plus (BI_D1+) Bi-directional Data One Minus (BI_D1-) Bi-directional Data Two Plus (BI_D2+) Bi-directional Data Three Plus (BI_D3+) Bi-directional Data Three Minus (BI_D3-) Bi-directional Data Two Minus (BI_D2-) Bi-directional Data One Plus (BI_D4+) Bi-directional Data Four Minus (BI_D4-) 1000BASE-T Cable Requirements All Category 5 UTP cables that are used for 100BASE-TX connections... -
Page 58: Adjusting Existing Category 5 Cabling
ABLES Adjusting Existing Category 5 Cabling If your existing Category 5 installation does not meet one of the test parameters for 1000BASE-T, there are basically three measures that can be applied to try to correct the problem: 1. Replace any Category 5 patch cables with high-performance Category 5e or 6 cables. -
Page 59: Console Port Pin Assignments
Console Port Pin Assignments The DB-9 serial port on the switch’s front panel is used to connect to the switch for out-of-band console configuration. The on-board menu-driven configuration program can be accessed from a terminal or a PC running a terminal emulation program. -
Page 60: Console Port To 25-Pin Dte Port On Pc
ABLES Console Port to 25-Pin DTE Port on PC Switch’s 9-Pin Se- rial Port 2 RXD <---------TXD ------------ 3 TXD -----------RXD ----------> 5 SGND -----------SGND ---------- No other pins are used. Null Modem 2 TXD 3 RXD 7 SGND PC’s 25-Pin... -
Page 61: Specifications
Physical Characteristics Base Unit Ports 24 10BASE-T/100BASE-TX, with auto-negotiation Media Slot 2 slots for optional 100BASE-FX, 1000BASE-T, or 1000BASE-X (GBIC) modules Network Interface 10BASE-T: RJ-45 (100-ohm, UTP cable; Categories 3 or better) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better) Ports 1-24: RJ-45 connectors, auto MDI/MDI-X Communication Speed 10 and 100 Mbps... -
Page 62: Switch Features
Internal, auto-ranging transformer: 100 to 240 VAC, 50 to 60 Hz Power Consumption 60 Watts maximum Heat Dissipation 205 BTU/hr maximum Maximum Current 3.0 A @ 110 VAC 2.0 A @ 240 VAC Switch Features Forwarding Mode Store-and-forward Throughput Wire speed ° ° C (32 to 122 °... -
Page 63: Management Features
Flow Control Full Duplex: IEEE 802.3x Half Duplex: Back pressure Management Features In-Band Management Telnet, Web-based HTTP, or SNMP manager (EliteView Network Management software provided free) Out-of-Band Management RS-232 DB-9 console port Software Loading TFTP or Web (HTTP) in-band, or XModem out-of-band MIB Support MIB II (RFC1213), Bridge MIB (RFC 1493, without Static Table), SMC’s private MIB... -
Page 64: Compliances
PECIFICATIONS Compliances CE Mark Emissions FCC Class A Industry Canada Class A EN55022 (CISPR 22) Class A EN 61000-3-2/3 VCCI Class A C-Tick - AS/NZS 3548 (1995) Class A Immunity EN 61000-4-2/3/4/5/6/8/11 Safety CSA/NRTL (CSA 22.2.950 & UL 1950) EN60950 (TÜV/GS) Warranty Limited Lifetime... -
Page 65: Slide-In Modules
Slide-in Modules 100BASE-FX Extender Modules Models SMC6824FSSC, SMC6824FMSC Ports 1 100BASE-FX Network Interface SMC6824FSSC: 9/125 micron single-mode fiber cable SMC6824FMSC 50/125 or 62.5/125 micron multimode fiber cable Standards IEEE 802.3u Fast Ethernet ISO/IEC 8802-3 Weight 50 gm (1.8 oz) Size 6.0 x 9.1 cm ( 2.37 x 2.56 in.) 1000BASE-T Extender Module Model... -
Page 66: 1000Base-X Gbic Module
PECIFICATIONS Weight 55 gm (1.98 oz) Size 6.0 x 9.1 cm ( 2.37 x 2.56 in.) 1000BASE-X GBIC Module Model SMC6824GB Ports 1 slot for GBIC transceivers Communication Speed 1000 Mbps Communication Mode Full Duplex Standards IEEE 802.3z Gigabit Ethernet... -
Page 67: Ordering Information
RDERING TigerSwitch 10/100 Products and Accessories Product Number Description SMC6724AL2 24-port Fast Ethernet switch with two media expansion slots SMC6824GT Gigabit module with one 1000BASE-T port (RJ-45 connector) SMC6824FSSC Extender module with one 100BASE-FX single-mode fiber port (SC-type connector) SMC6824FMSC... - Page 68 RDERING NFORMATION...
-
Page 69: Auto-Negotiation
10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3 or better UTP cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Fast Ethernet over two pairs of Category 5 or better UTP cable. 100BASE-FX IEEE 802.3u specification for 100 Mbps Fast Ethernet over two strands of 50/125 or 62.5/125 micron core fiber cable. - Page 70 Device that provides a full 100 Mbps bandwidth (or either 10 or 100 Mbps bandwidth with Auto-Negotiation) to each port (LAN segment). Full Duplex Transmission method that allows switch and network card to transmit and receive concurrently, effectively doubling the bandwidth of that link. Gigabit Ethernet A 1000 Mbps network communication system based on Ethernet and the CSMA/CD access method.
- Page 71 IEEE 802.3 Defines carrier sense multiple access with collision detection (CSMA/CD) access method and physical layer specifications. IEEE 802.3ab Defines CSMA/CD access method and physical layer specifications for 1000BASE-T Gigabit Ethernet. IEEE 802.3u Defines CSMA/CD access method and physical layer specifications for 100BASE-TX Fast Ethernet.
- Page 72 Media Access Control (MAC) A portion of the networking protocol that governs access to the transmission medium, facilitating the exchange of data between network nodes. An acronym for Management Information Base. It is a set of database objects that contains information about the device. Media Independent Interface, the standard interface for Fast Ethernet—similar to the AUI interface for traditional Ethernet.
- Page 73 3-8 crossover port 4-1 desktop mounting 3-6 electrical interference, avoiding 3-1 equipment checklist 3-3 Ethernet cable lengths 4-7 features C-2 management 1-10 switch 1-9 fiber cables 4-4 front and rear panels of switch 1-1 full-duplex connectivity 2-1 NDEX Index-1...
- Page 74 NDEX Gigabit Ethernet cable lengths 4-7 grounding for racks 3-4 indicators, LED 1-4 installation connecting devices to the switch 4-2 desktop or shelf mounting 3-6 installing optional modules 3-4 port connections 4-4 power requirements 3-1 problems A-2 rack mounting 3-4...
- Page 75 C-1 power C-2 standards compliance C-4 IEEE C-3 status LEDs 1-4 surge suppressor, using 3-1 switch architecture 1-2 switching, introduction to 2-1 Telnet A-2 temperature within a rack 3-4 troubleshooting in-band access A-2 power and cooling problems A-2 switch indicators A-1...
- Page 76 NDEX Index-4...
- Page 78 81-3-5645-5715; Fax 81-3-5645-5716 61-2-8875-7887; Fax 61-2-8875-7777 91 22 5696 2790; Fax 91 22 5696 2794 97 14 299 4466 Fax 97 14 299 4664 66 2 651 8733 Fax 66 2 651 8737 Model Number: SMC6724AL2 Pub. Number: 150200037800A E102003-R01...
