• Catch FPC/other's Changes — When checked, sets the switcher to report all
configuration and setting changes to the serial port or Ethernet connection that turned
this selection on. These reports allow the Matrix Switchers Control Program to track
the changes that occur in the configuration and settings of the switcher, whether
commanded via either serial port or the Ethernet port.
Master-Reset selection
Master reset performs all of the following functions:
• Clears all ties
• Clears all presets
Clears all rooms
•
• Clears all output mutes
NOTE: Master reset does not reset the Internet protocol (IP) settings.

Using Emulation Mode

Emulation mode allows you to set up the software without connecting the switcher. Use
emulation mode as follows:
1. To run the Matrix Switchers Control Program, click
Start
MATRIX Switcher + Control Pgm
The
Comm Port Selection
Figure 32.
2. Choose
Choose an emulation file to open, and click
3.
of a completed matrix setup. Selecting the file NEW.INI or clicking
blank setup dialog box to get you started.
4. Enter the file name under which you want to save any changes to the file, and click
> >
Programs Extron Electronics

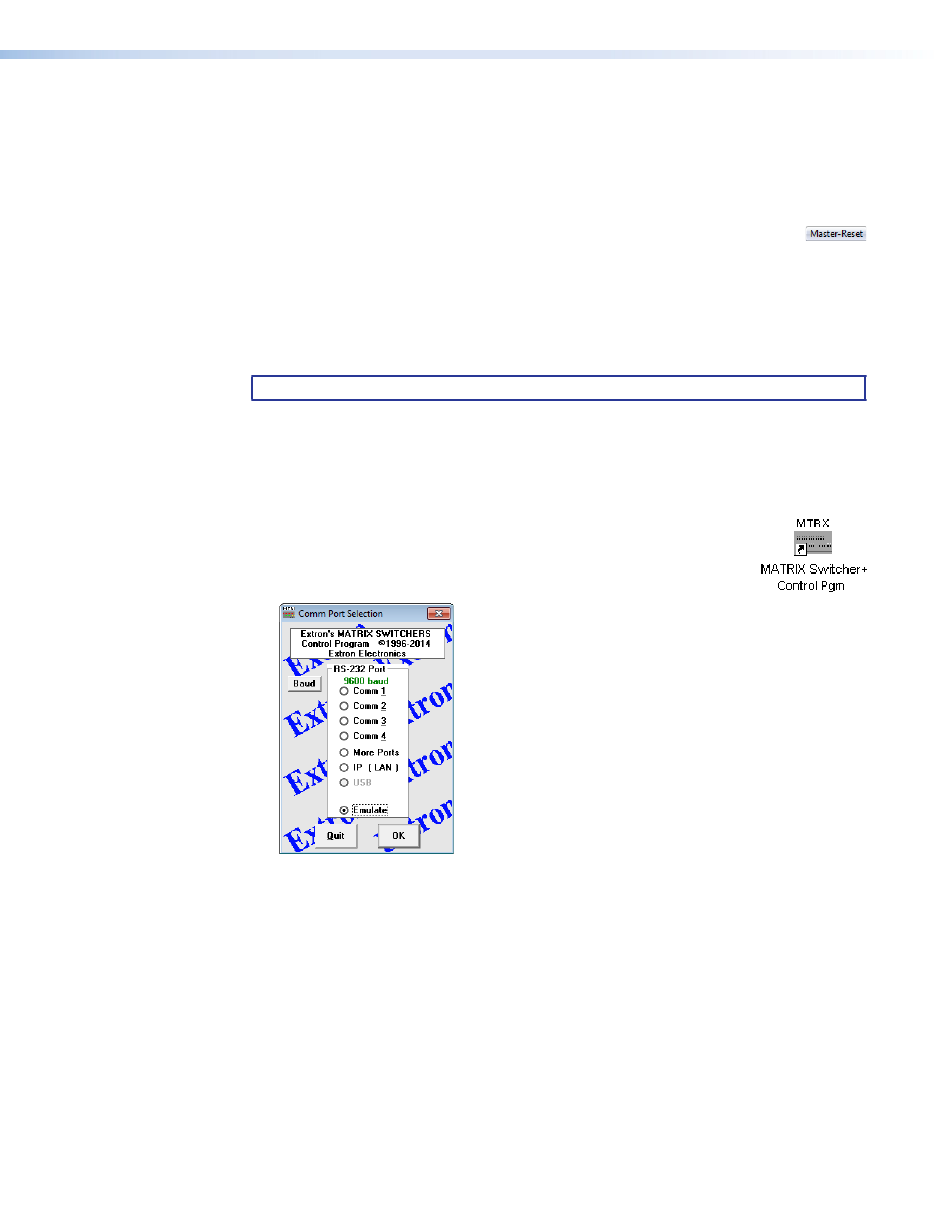

dialog box (see figure 32) appears.
Comm Port Selection Dialog Box
, and click .
Emulate OK
FOX Matrix 320x and FOX Matrix 14400 • Matrix Software
>
Matrix Switchers
.
. The file DEMO.MTX provides a sample
OK
>
provides a
Cancel
.
OK
