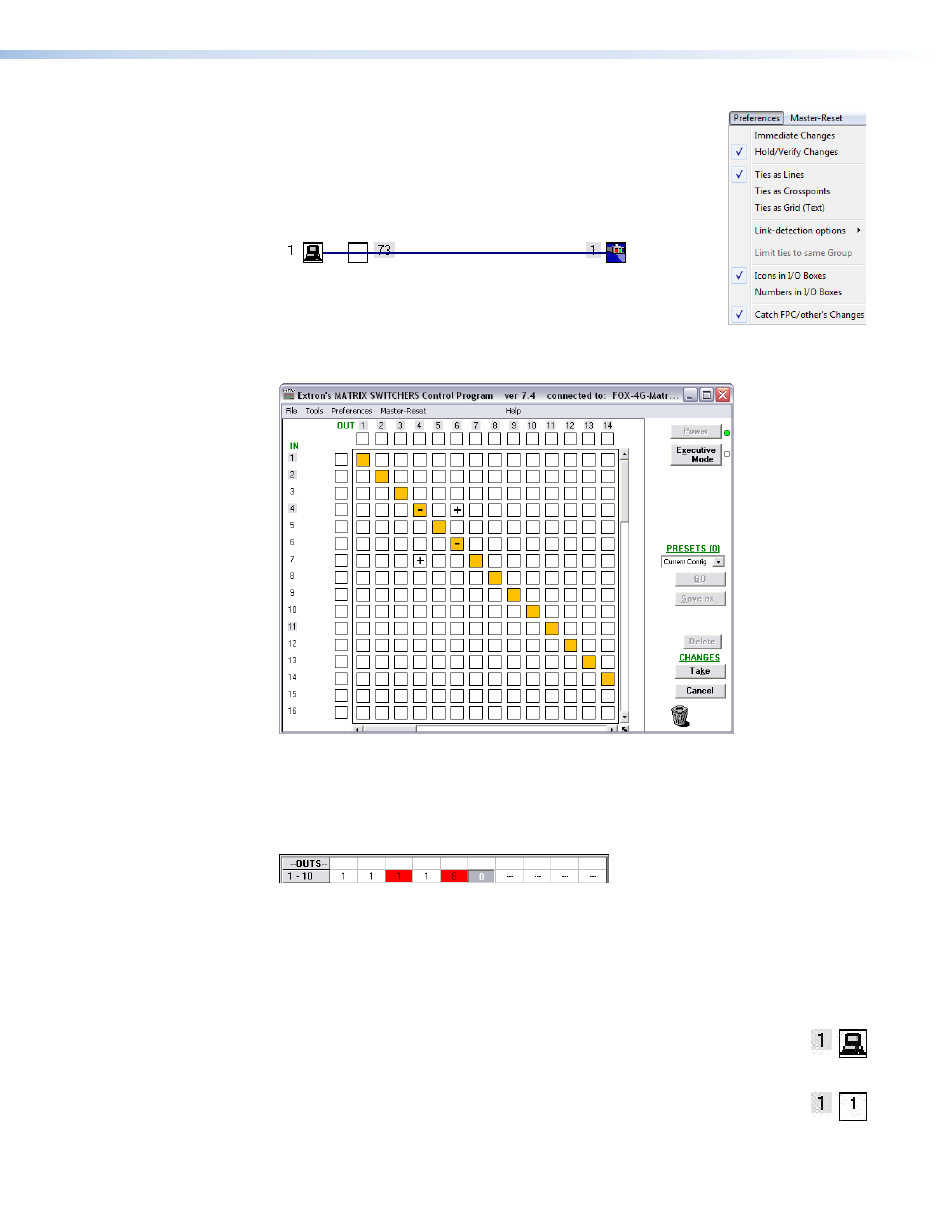

Preferences menu
Immediate Changes — Causes configuration changes to take
•
effect immediately.
• Hold/verify Changes — Delays implementation of
configuration changes until the
• Ties as Lines — Displays ties as lines (see figure 29).
Ties Shown as Lines
Figure 29.
Ties as Crosspoints — Displays ties as a matrix of inputs
•
and outputs (see figure 30). Ties that have been made are
indicated as amber boxes. Ties that will take effect when you click the
indicated by . Ties that will be broken when you click the
+
Ties Shown as Crosspoints
Figure 30.
Ties as Grid (available for FOX Matrix 320x only)— Displays ties as a grid of outputs
•
and inputs (see figure 31) that allows you to click an output and type the desired input.
Ties that have been made are indicated in black and white. Ties that will take effect or
be broken when you click the
Ties Shown in a Grid
Figure 31.
Link-detection options — Allows you to set the link detection feature as follows:
•
• To automatically refresh the display every 10 seconds
• To update the display whenever you refresh the screen
• To never sample and display the link status
• Icons in I/O Boxes — Erases any numbers in the I/O boxes in either the
ties-as-lines display or the ties-as-boxes display (see
You can place icons in the boxes.
• Numbers in I/O Boxes — Erases any icons in the I/O boxes in either the
ties-as-lines display or the ties-as-boxes display and fills each box with the
associated input or output number.
button is clicked.
Take
button are indicated in red or gray.
Take
FOX Matrix 320x and FOX Matrix 14400 • Matrix Software
button are
Take
button are indicated by
Take
figure 20 on page 42).
.
–
