Mode
Activation
5
Hold the
Reset
button for approximately
9 seconds, until the Reset LED blinks
three times (once at 3 seconds, again at
6 seconds, and then again at 9 seconds).
Reset
Then momentarily press
1 second.
Performing Soft System Resets (Resets 3, 4, and 5)
Perform a soft reset of the switcher as follows (see figure 13):
1.
2.
Reset Mode Comparison and Summary (continued)
Mode 5 performs a complete reset to factory defaults
(with the exception of the firmware):
•
Does everything mode 4 does.
•
Resets most settings, including:
within
•
Clears all ties.
•
Clears all presets.
•
Clears all output mutes.
•
(FOX Matrix 320x) Sets the output lasers to always on.
•
Resets all IP options.
•
Removes all files from the switcher.
The reset LED blinks four times in succession during the reset.
Use a small screwdriver to press and hold the rear panel Reset button until the
rear panel Reset LED blinks once (events reset), twice (system reset), or three times
(absolute reset).
Press and hold
Reset LED blinks once.
the Reset button.
Events
Reset
3 seconds
(Mode 3)
RESET
Press and hold
Reset LED blinks twice.
the Reset button.
IP Settings
Reset
6 seconds
(Mode 4)
RESET
Press and hold
the Reset button.
Absolute
Reset
9 seconds
(Mode 5)
RESET

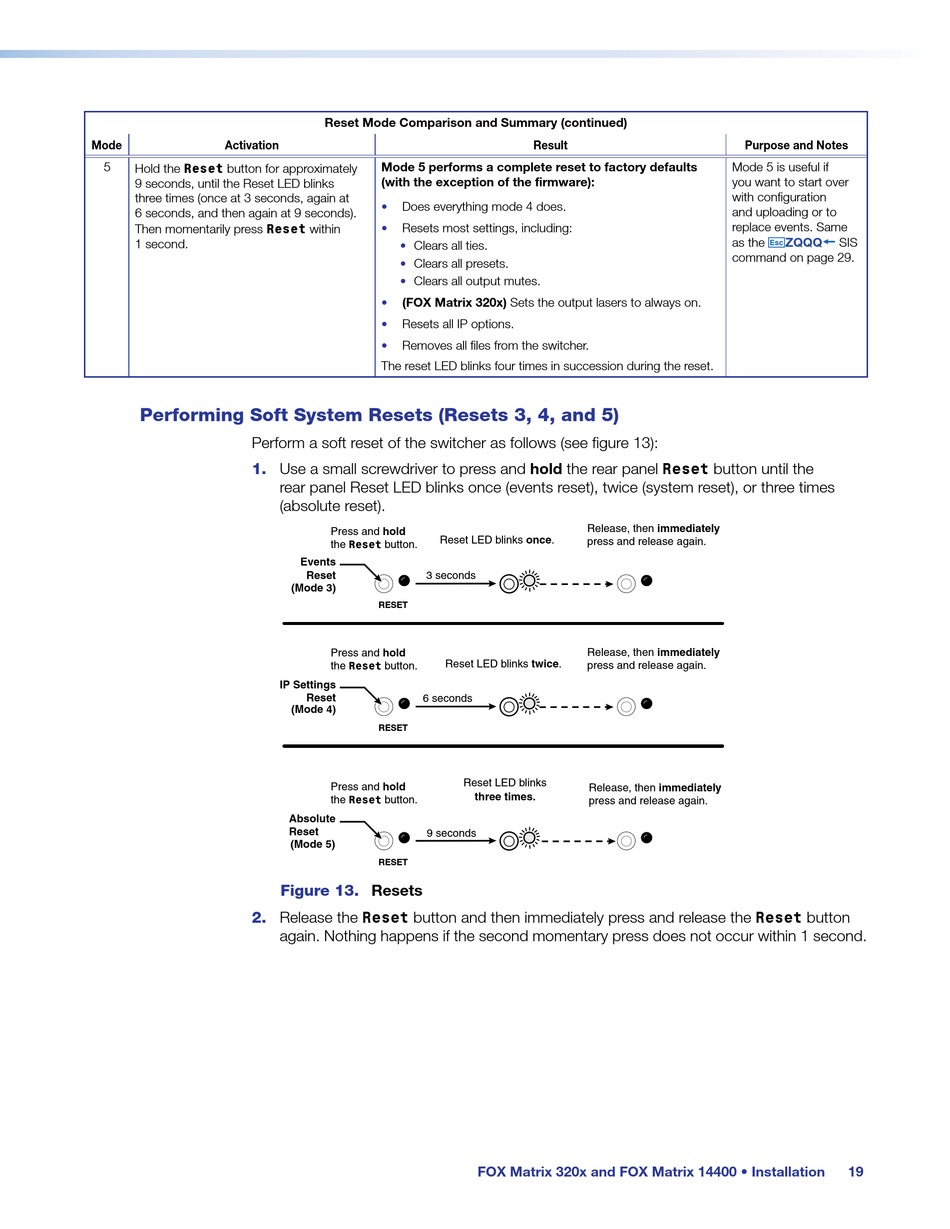

Figure 13.
Resets
Release the Reset button and then immediately press and release the Reset button
again. Nothing happens if the second momentary press does not occur within 1 second.
Result
Release, then immediately
press and release again.
Release, then immediately
press and release again.
Reset LED blinks
Release, then immediately
three times.
press and release again.
FOX Matrix 320x and FOX Matrix 14400 • Installation
Purpose and Notes
Mode 5 is useful if
you want to start over
with configuration
and uploading or to
replace events. Same
as the
E
ZQQQ
}
SIS
command on page 29.
19
