A.8.4 Ground Cable Installation for Goose Neck Mounting Option
Figure A-16
Note: To mount the intercom, use methods
compliant with local electrical codes.
Operations Guide
illustrates the correct ground cable installation for the gooseneck mounting option.

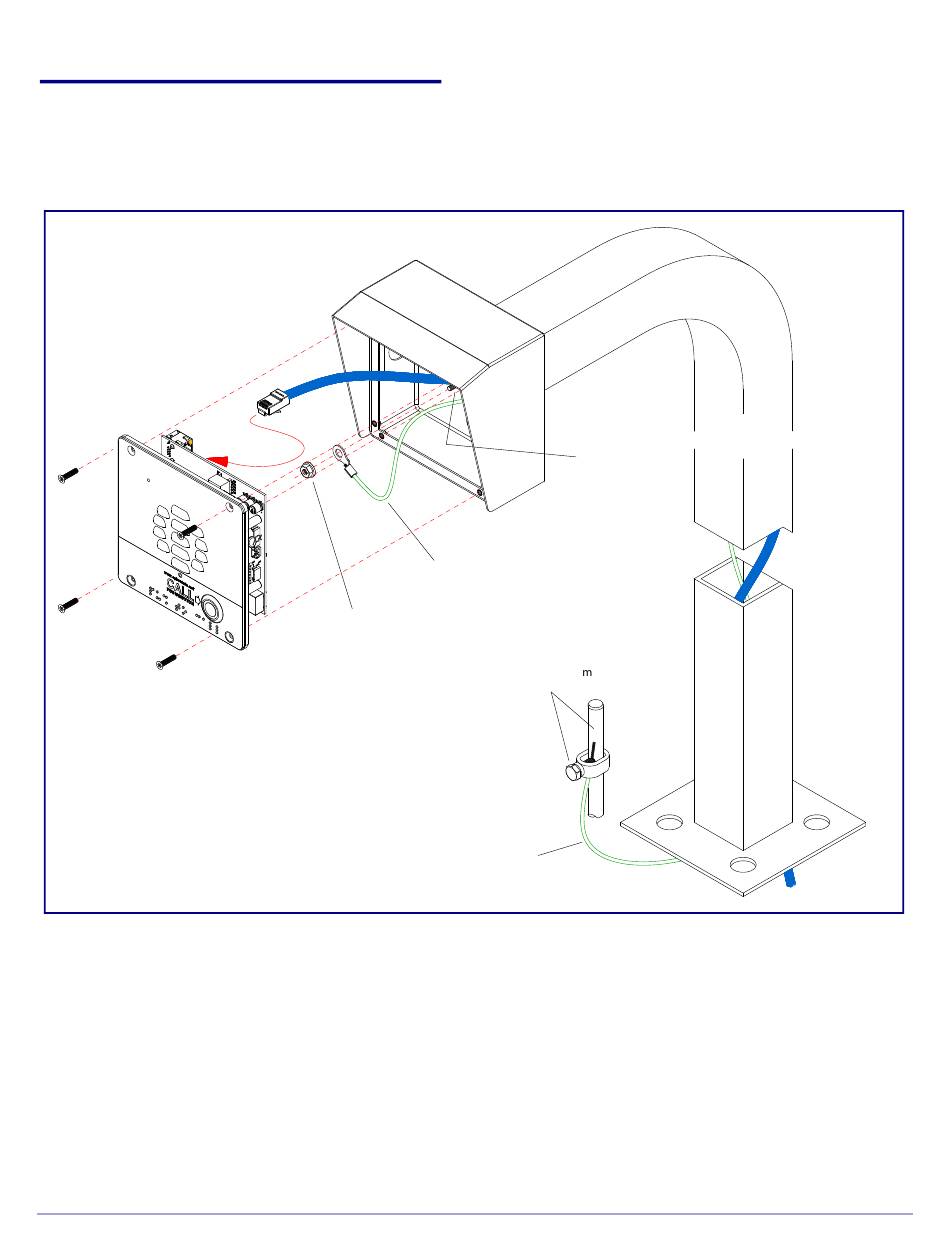

Figure A-16. Ground Cable Installation for Goose Neck Mounting
Ground Cable
(Not Provided)
Nut
(to Ground Lug)
930796K
Ground Lug
Grounding Rod and Cla p
(Not Provided)
NETWORK & GROUND
CABLES
(NOT PROVIDED)
Mounting the Intercom
Additional Mounting Options
GOOSENECK
(NOT PROVIDED)
GOOSENECK
[CUTAWAY VIEW
TO SHOW
CABLES ROUTING]
