Multitron Standard - Operating Manual
Accessories
4.2.2

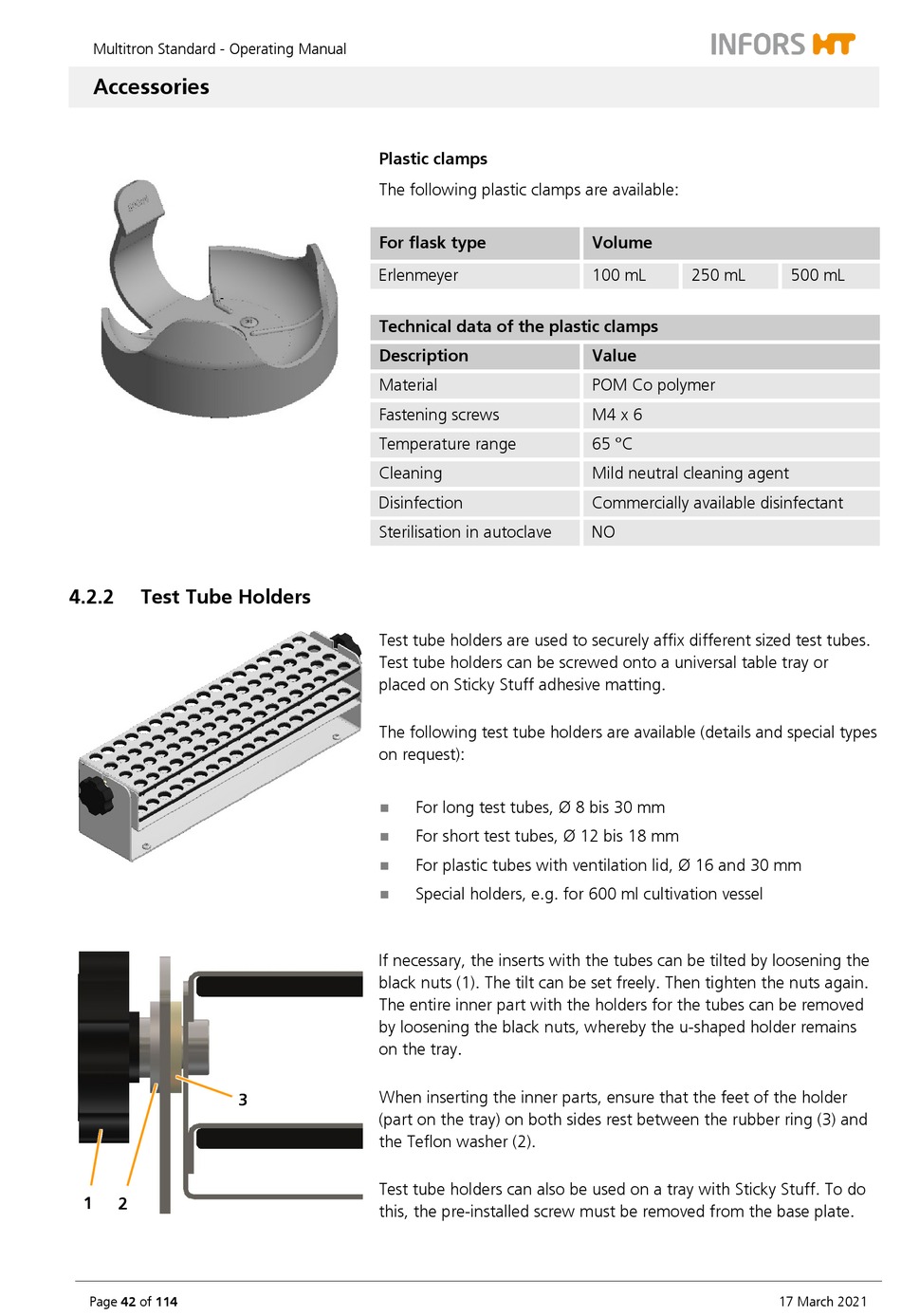

Test Tube Holders

3
1 2
Page 42 of 114
Plastic clamps
The following plastic clamps are available:
For flask type
Erlenmeyer
Technical data of the plastic clamps
Description
Material
Fastening screws
Temperature range
Cleaning
Disinfection
Sterilisation in autoclave
Test tube holders are used to securely affix different sized test tubes.
Test tube holders can be screwed onto a universal table tray or
placed on Sticky Stuff adhesive matting.
The following test tube holders are available (details and special types
on request):
For long test tubes, Ø 8 bis 30 mm

For short test tubes, Ø 12 bis 18 mm

For plastic tubes with ventilation lid, Ø 16 and 30 mm

Special holders, e.g. for 600 ml cultivation vessel

If necessary, the inserts with the tubes can be tilted by loosening the
black nuts (1). The tilt can be set freely. Then tighten the nuts again.
The entire inner part with the holders for the tubes can be removed
by loosening the black nuts, whereby the u-shaped holder remains
on the tray.
When inserting the inner parts, ensure that the feet of the holder
(part on the tray) on both sides rest between the rubber ring (3) and
the Teflon washer (2).
Test tube holders can also be used on a tray with Sticky Stuff. To do
this, the pre-installed screw must be removed from the base plate.
Volume
100 mL 250 mL
Value
POM Co polymer
M4 x 6
65 °C
Mild neutral cleaning agent
Commercially available disinfectant
NO
500 mL
17 March 2021
