3

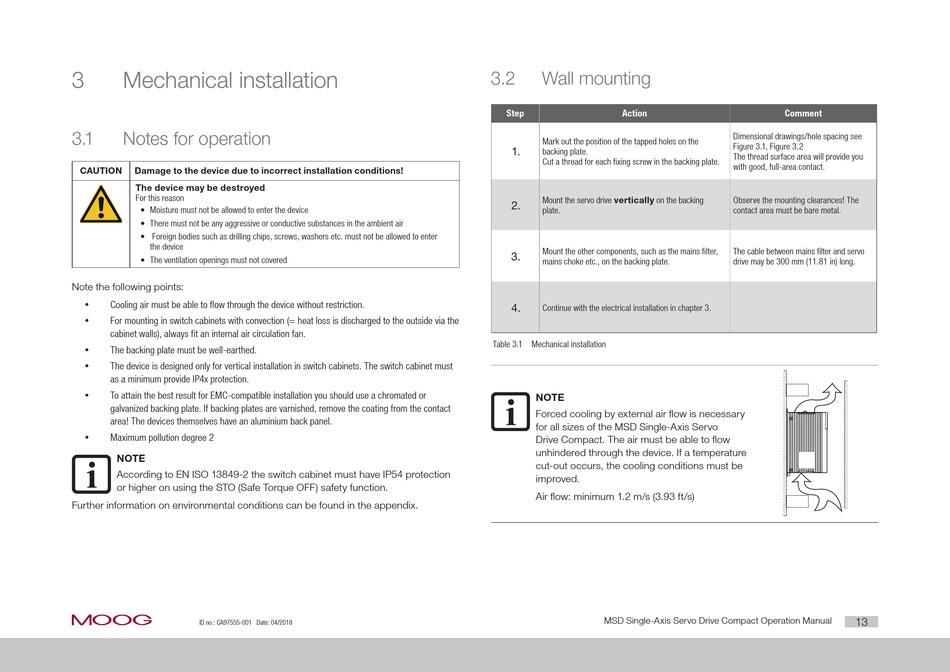

Mechanical installation

3.1

Notes for operation

CAUTION Damage to the device due to incorrect installation conditions!
The device may be destroyed
For this reason
• Moisture must not be allowed to enter the device
• There must not be any aggressive or conductive substances in the ambient air
• Foreign bodies such as drilling chips, screws, washers etc. must not be allowed to enter
the device
• The ventilation openings must not covered
Note the following points:
y Cooling air must be able to flow through the device without restriction.
For mounting in switch cabinets with convection (= heat loss is discharged to the outside via the
y
cabinet walls), always fit an internal air circulation fan.
The backing plate must be well-earthed.
y
y The device is designed only for vertical installation in switch cabinets. The switch cabinet must
as a minimum provide IP4x protection.
y To attain the best result for EMC-compatible installation you should use a chromated or
galvanized backing plate. If backing plates are varnished, remove the coating from the contact
area! The devices themselves have an aluminium back panel.
y Maximum pollution degree 2
NOTE
According to EN ISO 13849-2 the switch cabinet must have IP54 protection
or higher on using the STO (Safe Torque OFF) safety function.
Further information on environmental conditions can be found in the appendix.
moog
ID no.: CA97555-001 Date: 04/2018
3.2

Wall mounting

Step Action
Mark out the position of the tapped holes on the
1.
backing plate.
Cut a thread for each fixing screw in the backing plate.
Mount the servo drive vertically on the backing
2.
plate.
Mount the other components, such as the mains filter,
3.
mains choke etc., on the backing plate.
4.
Continue with the electrical installation in chapter 3.
Table 3.1 Mechanical installation
NOTE
Forced cooling by external air flow is necessary
for all sizes of the MSD Single-Axis Servo
Drive Compact. The air must be able to flow
unhindered through the device. If a temperature
cut-out occurs, the cooling conditions must be
improved.
Air flow: minimum 1.2 m/s (3.93 ft/s)
MSD Single-Axis Servo Drive Compact Operation Manual
Comment
Dimensional drawings/hole spacing see
Figure 3.1, Figure 3.2
The thread surface area will provide you
with good, full-area contact.
Observe the mounting clearances! The
contact area must be bare metal.
The cable between mains filter and servo
drive may be 300 mm (11.81 in) long.
13
