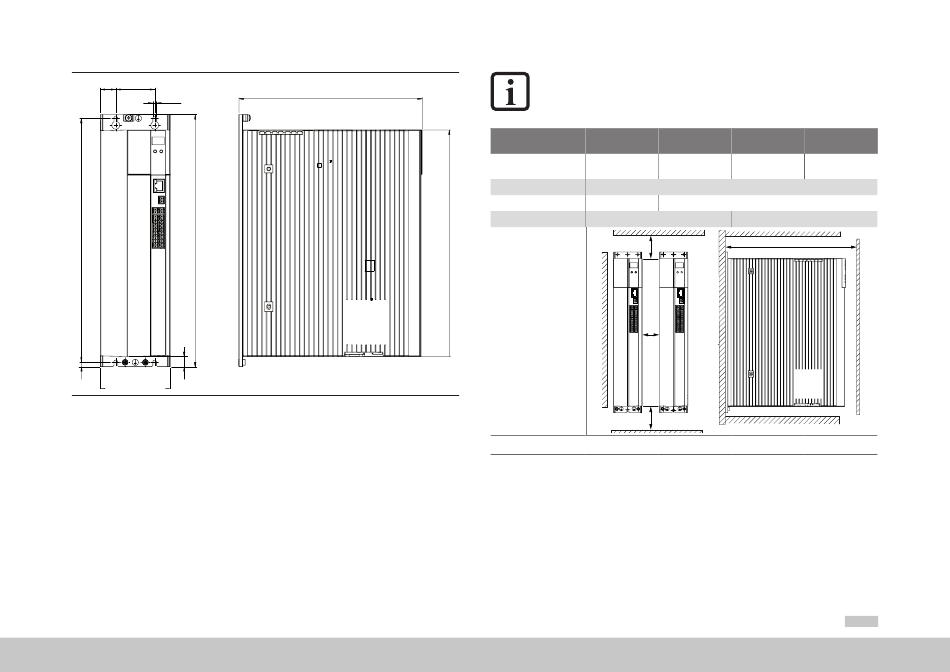

Figure 3.2 Dimensional drawing C5
3.2.2

Mounting clearances

The minimum distances specified in the table apply for devices of the same power.
When butt mounting devices with different drive power you should arrange the devices
according to their power (e.g., viewed from the left, C5-C4-C3-C2). This arrangement
will minimise the thermal interaction.
moog
ID no.: CA97555-001 Date: 04/2018
T
MSD Single-Axis Servo
Drive Compact
H
Dimensions in mm (in)
1) The bend radius of the connecting cables must be taken into account
Table 3.3 MSD Single-Axis Servo Drive Compact mounting clearances
NOTE
If MSD Single-Axis Servo Drive Compact devices are attached to other
product ranges, corresponding measures must be taken to prevent the
devices affecting each other thermally.
Size C2 C3
G394-030 G394-059
G394-020 G394-035
E Direct butt mounting
F 1) ≥100 (3.94)
G 1) ≥235 (9.25)
F
Drawing: E
F
MSD Single-Axis Servo Drive Compact Operation Manual
C4 C5
G394-080 G394-120
G394-065 G394-160
≥150 (5.90)
≥280 (11.02)
G
