4.2

Layout

The following shows the layout with the corresponding positions of plugs and terminals.
For better orientation we have identified the designations of plugs and terminals with an
abbreviation.
H1
X1
X8
X7
X6
D1, D2
T1, T2
X9
X2
X5
X13
X3
X4
TS-Software
PE
TS-Hardware
OP1

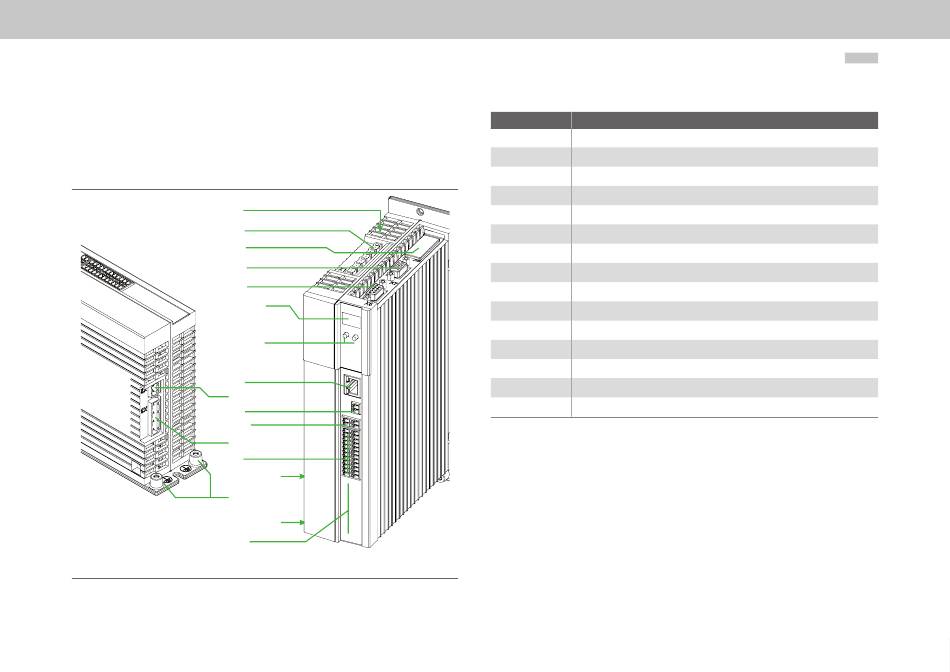

Figure 4.1 Layout MSD Single-Axis Servo Drive Compact C2 to C4
MSD Single-Axis Servo Drive Compact Operation Manual
Number Designation
D1, D2 7-segment display
H1 DC link voltage indicator LED (only size C2 to C4)
OP1 Installation space for option 1 (Communication)
T1, T2 Button
X1 Power connections (only size C2 to C4)
X2 Connection for control supply U
X3 AC power connection
PE (bottom) Device protective earth conductor connection
X4 Control terminals
X5 Motor temperature monitoring
X6 Resolver connection
X7 Connection for high-resolution encoder
X8 Option 2 (Technology)
X9 Ethernet interface
X13 Connection for motor brake
Table 4.1 Key to layout MSD Single-Axis Servo Drive Compact C2 to C4
18
