Moog MSD C2 Operation Manual page 19

PE
X1.c
X1.b
X1.a
S
X8
X7
X6
D1, D2
T1, T2
X9
X2
X5
X13
X3
X4
T. Software
T. Hardware
PE
OP1

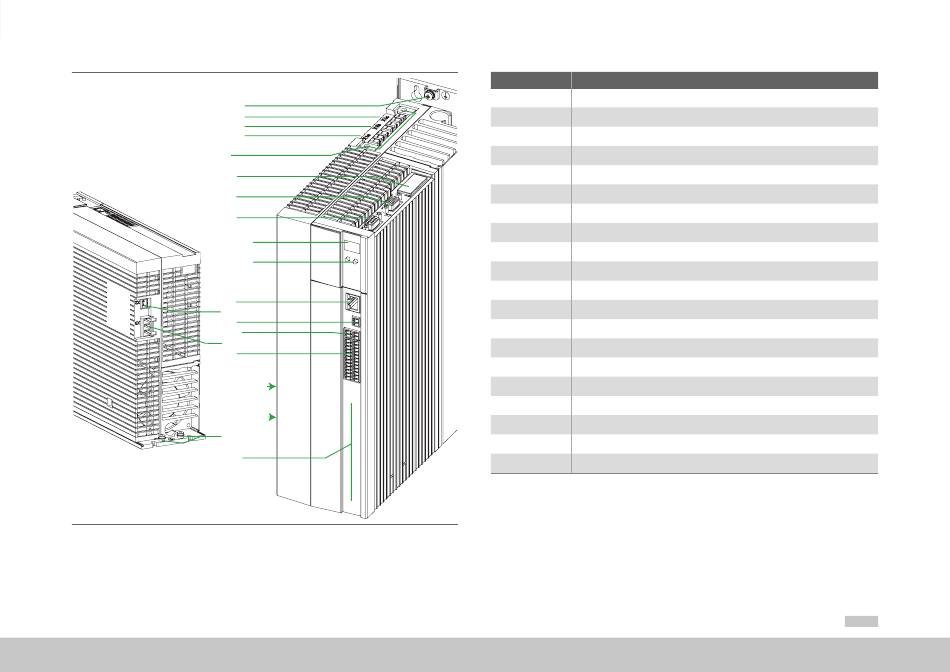

Figure 4.2 Layout MSD Single-Axis Servo Drive Compact C5
moog
ID no.: CA97555-001 Date: 04/2018
Number Designation
D1, D2 7-segment display
OP1 Installation space for option 1 (Communication)
T1, T2 Button
PE (top) Motor PE connection
X1.a Motor connection (only size C5)
X1.b Measurement of DC link voltage (only size C5)
X1.c Connection for braking resistor (only size C5)
X2 Connection for control supply U
X3 AC power connection
PE (bottom) Device protective earth conductor connection
X4 Control terminals
X5 Motor temperature monitoring
X6 Resolver connection
X7 Connection for high-resolution encoder
X8 Option 2 (Technology)
X9 Ethernet interface
X13 Connection for motor brake
S Receptacle for shield plate (see "Detail 1: Motor cable C5" on page 23)
T. Software Software rating plate
T. Hardware Hardware rating plate
Table 4.2 Key to layout MSD Single-Axis Servo Drive Compact C5
